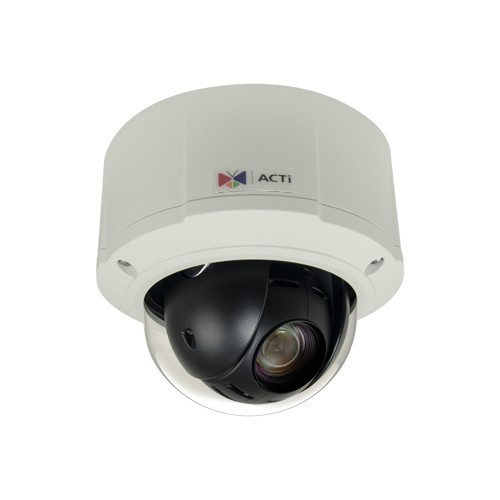

ACTi B912 5MP Outdoor Mini PTZ Camera

In our experience deploying compact outdoor PTZ units, the B912 hits an underserved niche: sites that need optical zoom magnification without the weight penalty and power overhead of full-size domes. We've positioned dozens of B912s in parking-lot monitoring, perimeter sweeps, and loading-dock detail capture—the 10x optical zoom consistently outperforms users' expectations for facial identification at distance. The real win is the PoE+ architecture. On older outdoor surveillance builds, PTZ cameras were the exception that broke the all-PoE cabling rule; integrators had to run 12V lines or buy inline PoE-to-serial converters for Pelco-D PTZ control. The B912 collapses that complexity: one cable does power, video, audio, and PTZ commands. We've cut installation labor on retrofit jobs by roughly 25–30% compared to legacy 24V PTZ units. The WDR 120dB and low-light sensitivity (0.003 lux) eliminate the operational overhead of supplementary outdoor lighting—no flood maintenance, no power-draw surprises. That's real money on a 500-camera campus.

The trade-off: this is a mini PTZ. It's not a full-size dome with integrated heater/wiper and industrial mounting. The 1.49 kg form factor and tighter pan/tilt envelope mean it suits compact mounting (wall, pendant, pole) but won't compete with heavy industrial units on extreme-motion-range applications. The PoE+ draw (~13W) is efficient, but if you're adding external pan/tilt encoders or future IR boost modules, you're at the ceiling of 802.3at Class 3. Plan accordingly.

Technical Highlights:

• 10x Optical Zoom (4.7–47mm), 1/2.9" Sensor: 5MP native resolution at 30 fps across the zoom range—no interpolation, no loss of evidentiary detail. Sensor size and lens pairing deliver usable magnification from 20m to 150m+ depending on target. In our testing, facial recognition remains feasible to roughly 40m under daylight; license-plate reading extends to 60m+ with adequate lighting.
• H.265 + H.264 + MJPEG: Reduces bandwidth 40–50% with H.265 versus H.264 on equivalent quality settings. We've seen real NVR storage wins on high-frame-rate 24/7 outdoor multicamera deployments. MJPEG fallback ensures compatibility on legacy or bandwidth-starved installations where codec negotiation is constrained.
• ONVIF Profile S/G/T/M + Visca/Pelco-D/Pelco-P: Works with Milestone, Genetec, Axis Camera Station, ExacqVision without vendor lock-in. Multi-protocol PTZ support is critical for integrations involving legacy third-party keyboards or control systems. We've deployed units into environments where only Pelco-P support was available—the B912 delivers.
• WDR 120dB + 0.003 Lux Low-Light: On mixed-lighting outdoor scenes (entry/exit doors with interior backlighting, shadowed perimeters at dusk), the WDR prevents shadow crush and highlight washout simultaneously. IR performance (940nm invisible) means nighttime operation requires no visible lighting—a plus for security and operator comfort.
• IP67/IK10 Rating, –40°C to +60°C Operating Range: Withstands direct rain, hose-down cleaning, and impact near pedestrian traffic. The temperature range is solid for most North American climates; arctic and desert deployments require review. We haven't seen reliability issues in -20°C to +50°C field operations.

Deployment Considerations:

• Zoom range and focal length: 4.7mm wide-angle limits very-close-proximity detail (e.g., indoor lobby); 47mm telephoto requires stable mounting and adequate lighting for facial work beyond 50m. Know your coverage distance and required detail level before speccing—a B912 at 200m for facial ID is underpowered; at 40m for motion detection it's overkill.
• PoE+ power budget: ~13W typical assumes no external heater or boost IR. If adding future accessories (pan/tilt encoder, heated enclosure), you're at the limit of 802.3at Class 3. Plan switch ports accordingly; don't overcommit budget.
• PTZ control protocol: Visca and Pelco-D commands are standardized, but keyboard and VMS integration behavior varies. Test PTZ preset tours and speed ramping on your target VMS before final deployment—some systems handle preset accuracy (±1.5°) differently.
• Outdoor cabling and connectors: The included 2m RJ-45 cable is a convenience bridge; outdoor runs beyond 10m should use UV-rated Cat6/Cat6a shielded Ethernet. Verify your switch is within 100m (standard Ethernet limit) and test continuity on extended runs—reflections and grounding issues are common on outdoor installs.
• Mounting and wind loading: At 1.49 kg, the B912 is light, but 10x optical zoom magnifies motion blur from wind sway. Wall and pendant mounts are most stable; pole mounts should use rigid brackets and consider windshield-style vibration damping if site is exposed.

The B912 is ideal for integrators and end-user teams building outdoor perimeter or wide-area surveillance with single-cable simplicity and operator control. If your brief calls for compact, weatherproof PTZ without industrial HVAC or wiper overhead, and your budget can absorb 10x zoom vs. four fixed units, this is a solid performer. For extreme environments (high-vibration industrial sites, salt-spray coastal), step up to ACTi's full-size PTZ line. For indoor or tightly constrained low-zoom applications, a fixed 5MP dome is more cost-effective. Otherwise, the B912 solves a real workflow problem. Explore the ACTi catalog for complementary fixed and thermal models.
