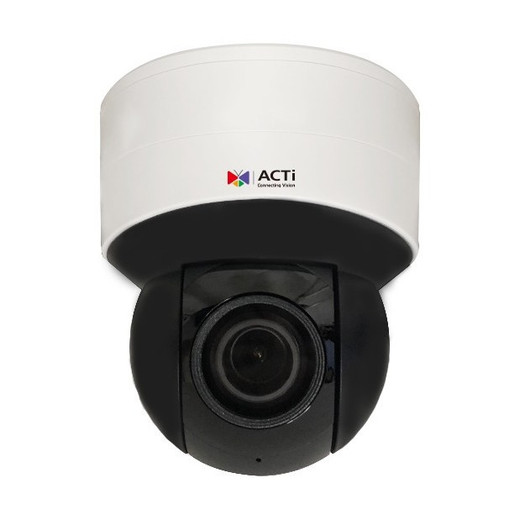

ACTi Z972 5MP Indoor Mini PTZ Camera
ACTi Z972 5MP Indoor Mini PTZ Camera
ACTi Z972 5MP Indoor Mini PTZ Camera
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

ACTi Z972 5MP Indoor Mini PTZ Camera

Overview

The Z972 is a 5MP indoor mini PTZ camera engineered for compact ceiling or wall mounting in retail, office, and facility environments where space and aesthetics matter. The 2.7–13.5mm motorized zoom lens provides 5x optical zoom, letting you frame wide corridors or tighten on details without camera repositioning. Built-in 850nm infrared LEDs with 120m working distance deliver usable monochrome surveillance in total darkness—essential for 24/7 monitoring across retail floors, back offices, and low-traffic zones. WDR processing rated at 145dB handles backlit scenes (sunlit doorways, bright windows against dark interiors) without washing out shadow detail. H.265 and H.264 compression reduce bandwidth and storage footprint while maintaining forensic-grade clarity. Deep Learning analytics (DLPU) enable smart intrusion protection, line crossing detection, and area intrusion triggers, reducing false motion alerts and letting you react to genuine threats.

Compatibility

The Z972 streams ONVIF Profile S, G, and T, integrating into standard VMS platforms (Milestone, Genetec, VMS software stacks) and edge recording systems without codec transcoding. Draws under 100W via PoE+ (802.3at), fitting standard enterprise network switches without dedicated power injection infrastructure. Two-way audio supports intercom workflows and event-triggered speaker notification. Pan range of 350° and motorized focus enable rapid operator control via PTZ joystick or API commands.

Installation Notes

Compact form factor (129mm diameter × 143.6mm height) fits standard 4-inch ceiling grid or flush wall mounts. Operating temperature range of −40°C to 70°C handles unheated storage rooms, attics, and temperature-swung retail environments without performance degradation. 24 configurable privacy masks allow masking of sensitive areas (cash registers, office windows, restrooms) at the edge, reducing storage overhead and privacy liability. UL Listed, CE, FCC certified for North American and EU deployment.

What's in the Box

  • ACTi Z972 camera unit
  • Mounting bracket and hardware
  • Quick start guide
Expert Analysis
Specifications
Resolution: 5 MP
Poe Power: PoE (802.3af)
WDR: WDR 145dB
Ir Lowlight: IR
Compression: H.265; H.264
Audio: Two-way
Lens Focal Length: 2.7-13.5 mm
Night Vision: IR
Type: PTZ
Brand: ACTi
MPN: Z972
Type: 5MP Indoor Mini PTZ Camera
Connectivity: Ethernet
Power: PoE
poe_power: PoE+ (802.3at)
ir_lowlight: IR; 850nm
compression: H.265; H.264; MJPEG
onvif: Yes
analytics: Deep Learning (DLPU); VMD
lens_focal_length: 2.7-13.5 mm (5x optical zoom)
mount_type: Wall; Pole; Pendant
Color: Min. Illumination 0.003 lux
Application: Environment Indoor
Print_Resolution: 5MP
Product_Type: | PTZ
Power_Supply: | High PoE (IEEE802.3at), DC 12V
Weight: | 780g (1.72lb)
Storage: Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F)
Approvals: | CE, FCC, UL Listed, BSMI
Compatible With: flexible
PoE: PoE
IR_Lowlight: 850nm Adaptive IR LED; 120m range; Color Min. Illumination 0.003 lux
Analytics: Deep Learning (DLPU); Smart Intrusion Protection; People Line Crossing Detection; People Intrusion Detection; People Enter Area Detection
Lens: 2.7-13.5mm (5x optical zoom)
Mount_Type: Wall; Ceiling; Pendant
Form_Factor: Mini PTZ
IR_Range: 120m
Sensor_Size: 1/2.7"
Min_Illumination: 0.003 lux (Color @ F1.2, AGC on); 0 lux (B/W, IR on)
Operating_Temp: -40°C to 70°C (-40°F to 158°F)
Certifications: CE; FCC; UL Listed; BSMI
VMS_Compatibility: ONVIF Profile S, G, T
PTZ_Range: Pan 350°; Tilt -20° to 90°; 5x optical zoom
Wdr: WDR
Q&A
Reviews
Product Video

Videos Hide Videos Show Videos

ACTi Z972 5MP Indoor Mini PTZ Camera

$957.00
$707.99
Add to Cart
