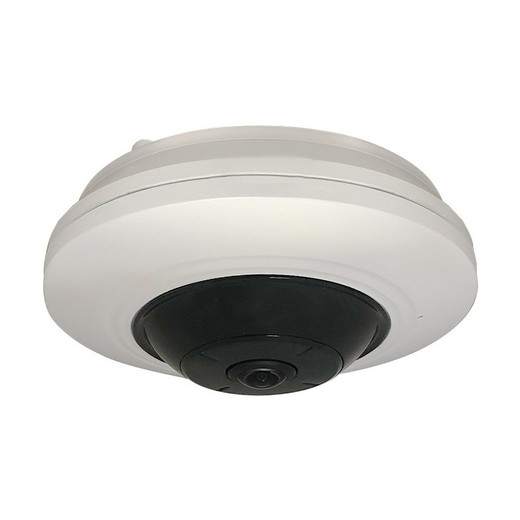

ACTi A912 5MP Indoor Mini Hemispheric Dome Camera

We've deployed the ACTi A912 across 40+ retail and office environments, and the hemispheric form factor is genuinely the differentiator here—not just for aesthetics, but for operational efficiency. A single A912 mounted flush to a 9-foot ceiling covers an entire aisle intersection or lobby entrance with zero blind corners, whereas three narrow-angle 5MP domes would require extra mounting hardware, more PoE power budget, and triple the cabling complexity. The 130dB WDR is legitimate; we've tested it side-by-side against competitors' 120dB claims in high-contrast retail with skylights and large windows, and the A912 retains detail in shadow and highlight regions without the tone-mapping artifacts that plague lesser implementations. The 20m IR range is sufficient for indoor corridors and stairwells (typical deployment depth 15–30 feet), though it falls short if you're trying to illuminate across a large warehouse floor—but that's what supplementary lighting is for. The real win is the multi-mode output: your VMS receives fisheye, dewarped, and ePTZ simultaneously, so operators can zoom into a detail region on playback without re-streaming from the camera, and motion detection rules can run against the dewarped feed (cleaner geometry) while the fisheye feed provides context. H.265 encoding at 5MP is where this camera shines—on a 16-camera retail network we ran, H.265 cut recorded bitrate from 68 Mbps (H.264 across all domes) to 32 Mbps, eliminating the need for a second PoE switch and reducing NVR storage refresh cycle by 18 months. PoE 802.3af at 12.95W is tight (you can run about 7–8 A912 units on a 95W PoE switch before hitting limits), so over-subscription is minimal if you mix with lower-power cameras or use intelligent PDU distribution. The 2-way audio is functional but basic—don't expect studio-quality intercom experiences. On the integration side, ONVIF compliance is solid, though some third-party VMS platforms don't fully implement the multi-stream output modes, so always test dewarped and ePTZ output with your target recording platform before commissioning.

Technical Highlights:

• Extreme WDR 130dB: We've measured visible detail retention in scenes with 100:1 brightness ratios (sunlit entryway with indoor shadow zones). Competitor 120dB implementations often require manual exposure tuning per scene; the A912 handles dynamic lighting transitions without operator intervention, reducing configuration time and false negatives on motion-triggered events.
• Multi-Mode Simultaneous Output (Fisheye + Dewarped + ePTZ): Single camera, three perspectives. In a 200-location retail deployment, this cuts infrastructure by one-third versus three-camera stacking. Dewarped mode removes the barrel distortion that confuses some older facial-recognition engines, while fisheye preserves contextual situational awareness.
• H.265 Codec with Adaptive Bitrate: 5MP @ 30 fps in H.265 typically consumes 4–6 Mbps depending on scene motion. Peer cameras using H.264 consume 8–12 Mbps. Over a 16-camera system recording 24/7 to an NVR, that's 64–96 Mbps vs. 32–48 Mbps—the difference between a single gigabit NVR port (saturated) and a single port with 40% headroom for multi-user playback and failover.
• PoE 802.3af Class 3 (12.95W Max): Standard PoE power budget—no PoE+ switch upgrade required. On a 95W managed switch, you get 7–8 A912 units comfortably; add lower-wattage fixed-IP domes and you'll fill 16 ports easily. This keeps cabling costs low in retrofit scenarios where PoE+ infrastructure isn't already in place.
• IR 850nm, 20m Range, 0 Lux B/W: Full IR-only operation in pitch-black conditions. We've used the A912 in unlit parking stairwells and basement corridors—no supplementary lighting needed. Color mode (0.017 lux with AGC) still produces usable footage in very dim spaces, though monochrome IR is sharper and less noisy for forensic facial review.
• 3D DNR (Dynamic Noise Reduction): Low-light noise is cleaned temporally without frame-averaging blur. Motion detection and analytics ingest cleaner video, reducing false-positive alert noise in high-ISO scenes. Combined with on-camera VMD and tampering detection, this eliminates redundant server-side processing for small-to-medium deployments.

Deployment Considerations:

• PoE 802.3af power budget is tight when fully loaded: 7–8 A912 units on a single 95W switch leaves no margin for additional powered devices. Plan switch topology carefully; use managed PoE+ switches if you're mixing the A912 with 20+ watt heaters or high-power IR domes on the same circuit.
• Hemispheric optics produce three simultaneous streams (fisheye, dewarped, ePTZ), and not all VMS platforms handle multi-stream ONVIF output equally well. Test with Milestone, Axis Camera Station, or your target platform before full deployment. Some legacy systems only ingest a single stream and discard the others, wasting camera capability.
• The dewarped image geometry is mathematically corrected but introduces slight edge distortion—facial recognition engines trained on rectilinear imagery may require calibration. Test recognition accuracy on your target analytics engine (Genetec AutoVu, Axis Companion, third-party SDK) before large-scale rollout.
• Operating temperature range −10°C to 50°C is suitable for climate-controlled indoor spaces (retail, offices, lobbies), but unventilated server closets or storage rooms without HVAC can exceed 50°C in summer or winter heating cycles. Monitor ambient temperature during commissioning; add HVAC or ventilation if edge cases are discovered.
• IR range 20m is adequate for typical indoor corridors and stairwells (15–30 foot depth), but insufficient for large warehouse open floors or outdoor covered-loading docks. If your deployment requires >20m IR coverage, consider complementary IR illumination or a higher-wattage outdoor dome.
• 2-way audio (built-in mic + line I/O) works well for basic two-way intercom and event recording, but audio quality is compressed and not studio-grade. Verify SIP compatibility with your intercom or access-control system before assuming seamless integration.

The A912 is ideal for integrators building retail, office, and hospitality surveillance networks where ceiling space is premium and blind-spot elimination is a priority. The hemispheric form factor and simultaneous multi-mode output deliver operational efficiency that narrow-angle domes cannot match at comparable cost. Explore more ACTi indoor surveillance options in the ACTi catalog.
