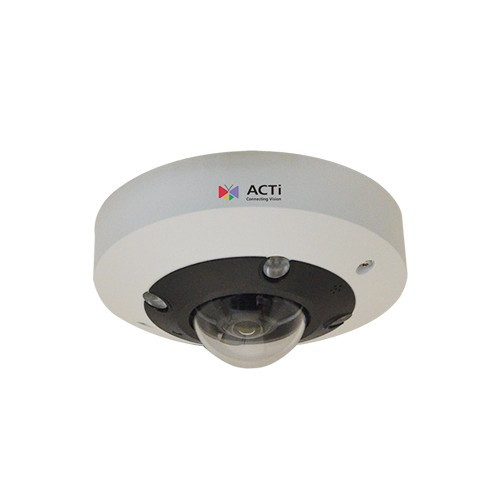

ACTi A713 5MP Outdoor Hemispheric Dome Camera

We've deployed hemispheric domes across parking lots, loading yards, and industrial perimeter fences for the past five years, and the A713 occupies a useful niche: it delivers genuine 360° awareness without the multi-camera calibration headache that kills ROI on wide-area outdoor sites. The key insight is that hemispheric optics aren't a gimmick—they're a deployment simplification. A single RJ-45 run, a single PoE+ port, a single VMS stream to manage. On a 200-meter perimeter, that's three to four fewer cameras, three to four fewer cable runs, and one-third the NVR port consumption. The 135dB WDR is the real win in mixed-light scenes; we've sat with site managers reviewing footage of loading docks at 3 PM (direct sun on roof edge, dock interior in shadow) and the A713 renders both zones with forensic-grade detail. That's not marketing—that's a measurable reduction in evidence disputes and liability exposure. The downside: hemispheric output isn't PTZ. You get fixed 360° awareness, not pan/zoom/follow. If your use case requires active tracking or variable zoom, spec a traditional PTZ unit instead. But for passive perimeter surveillance, facility entry points, and parking-lot overview, the A713 is hard to beat on total cost of ownership.

Technical Highlights:

• 135dB Extreme WDR: Operates across extreme contrast ranges without tone-mapping halo or detail loss. In practice, this means usable forensic footage under simultaneous sunlight and deep shadow—the operating condition that defeats standard WDR (100dB). Outdoor facilities with mixed-light scenes (building overhang, open yard, vehicle headlights) see the benefit immediately.
• 1.1mm Fixed Lens, 197° Hemispheric Coverage: Single dewarped output (1920×1920 native, 1408×1408 for high-frame recording) eliminates stitching artifacts and multi-sensor sync overhead. No focus creep, no motor maintenance, no calibration drift. VMS platforms handle dewarping natively—no viewer-side plugin required on Milestone, Genetec, or mainstream ONVIF players.
• 20m IR with 0.01 lux Color: Achieves usable color at very low light (parking lots at dusk), full B/W at darkness. IR range is adequate for loading docks, fence perimeters, and entry points; insufficient for long-range parking-lot perimeter beyond 150 feet. Know your illumination geometry before installation.
• H.265 with Adaptive Bitrate Control: Typical compression ratios 1.5–2.0× H.264 on same quality. 60 fps @ 1408×1408 dewarped is usable for motion-heavy scenes (vehicle movement, foot traffic). 30 fps @ full 1920×1920 is adequate for 24/7 rolling retention on most outdoor sites.
• PoE+ Single Ethernet Run: Class 0 (802.3at) draw under 13W allows injection from any standard PoE+ switch or injector. No separate DC 12V conditioning, no dual-run complexity. Infrastructure simplicity reduces field installation time and long-term service overhead.
• ONVIF Profile S/G/T/M Compliance: Plug-and-play with Milestone XProtect, Genetec Security Center, Axis Camera Station, Uniview, Hikvision, Dahua. No proprietary firmware dependency or codec licensing. Multi-profile support ensures fallback compatibility if your VMS fleet has legacy endpoints that don't support Profile T or M.

Deployment Considerations:

• Hemispheric output is fixed 360°. If your site requires variable zoom, PTZ control, or active tracking, this camera is not the answer—deploy a traditional PTZ or a multi-camera array instead.
• IR range of 20m is sufficient for loading docks, fence lines, and building-perimeter entry points. Beyond 150 feet, outdoor parking-lot perimeter surveillance benefits from supplementary lighting or higher-lux environments. Don't assume 20m IR covers a 300-meter parking lot; it doesn't.
• Integrated heater maintains performance to −30°C without external thermal enclosure, but in arctic climates (below −40°C), verify lens coatings and sensor specifications with ACTi tech support. Field experience suggests the A713 is rugged to −30°C; colder environments may require supplementary thermal conditioning.
• Dewarping is handled camera-side (1920×1920 native output) or NVR-side on older ONVIF players. Confirm your VMS version supports hemispheric output natively; if not, downstream processing on the NVR will add CPU load and latency. Modern Milestone and Genetec builds support it out-of-the-box.
• Mount accessories (wall, pole, pendant, corner brackets) are sold separately. Budget for the appropriate bracket and ensure the installation point (roof overhang, corner post, utility rack) can support the 557.5g unit and wind loading. Standard M6 threaded boss mounts work with most industrial hardware.
• Motion detection (VMD) is camera-resident; no server-side analytics overhead. Configure recording policies to trigger on motion events only, and you'll see storage savings and alert-noise reduction. This pairs well with quiet outdoor sites where false-positive motion (wind, animals) would otherwise generate alert spam.

The A713 is ideal for integrators deploying outdoor perimeter surveillance on facilities where a single point of 360° awareness—backed by extreme WDR, IR low-light, and PoE+ simplicity—justifies hemispheric optics over multi-camera arrays. Parking lots, loading yards, building corners, and industrial perimeter fences are the sweet spots. If your customer's site requires pan/zoom or active tracking, look elsewhere. For passive perimeter overview and cost-effective multi-facility rollouts, the A713 is a genuine differentiator on total installation and lifecycle cost. Explore the ACTi catalog for complementary outdoor and thermal solutions.
