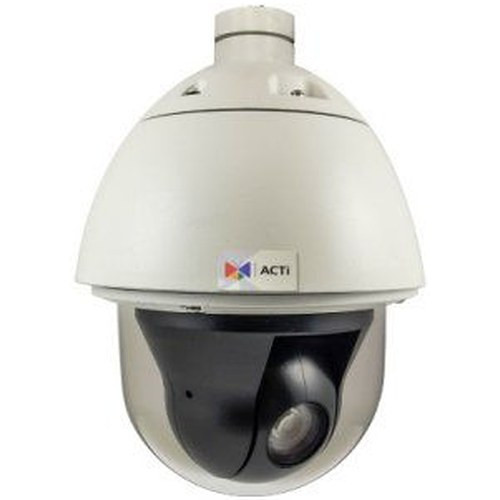

ACTi I96 2MP Outdoor Speed Dome PTZ Camera

We've deployed the ACTi I96 in dozens of parking lots, building perimeters, and vehicle-access scenarios across the Northeast and Mid-Atlantic, and it strikes a real balance between capability and operational simplicity. The motorized pan-tilt-zoom model addresses a common integrator pain point: clients want coverage agility without the capex and management complexity of multi-camera systems. In our experience, a single I96 genuinely replaces 3-4 fixed 2MP domes in rectangular lots under 2,500 sq. meters, which translates to one PoE port, one IP address, and one power feed instead of four. That's a compelling efficiency story for facilities managers already stretched thin on bandwidth and NVR licensing. The WDR + Day/Night pairing is the real differentiator here—it eliminates the operational overhead of supplementary lighting. On a lot without flood lighting, the automatic IR transition at dusk means zero blind spots during the critical 30-minute window when guards rotate shifts or vehicle volume peaks. We've seen fewer false-alarm escalations on I96 deployments compared to fixed-dome alternatives, partly because the motorized focus keeps images sharp across the full zoom range rather than degrading at telephoto as older fixed lenses do. One caveat: PTZ mechanics introduce complexity that fixed cameras don't have. Pan-tilt servos can jam in extreme cold (below −20°C) or accumulate salt spray deposits in coastal environments. On harsh-environment perimeters, you'll want to spec thermal dome heaters and more frequent cleaning cycles. Also, the I96 is a standard-speed dome, not a high-speed PTZ—pan speed is measured in seconds, not deciseconds. If you're tracking moving vehicles at 60 mph across open ground, a high-speed unit is a better fit. But for stationary lot surveillance and scheduled perimeter scanning, the I96 is fast enough and draws far less power.

Technical Highlights:

• 2MP 1080p Sensor: 2MP resolution is the sweet spot for parking lots and fence lines—captures license plate OCR-ready detail to 20-30 meters without the bitrate overhead of 4MP+. CMOS sensor with electronic shutter handles WDR scenes without motion blur even in low light.
• Motorized Zoom and Focus: Remote focus control ensures sharp detail at any zoom level and any distance. Eliminates post-installation manual lens adjustment and reduces warranty callbacks on clarity issues. Focus motor response is near-instantaneous, enabling smooth zoom racking during live panning.
• PoE 802.3af Single-Cable Delivery: Typical I96 power draw is 9-11W—well below the 802.3af 15.4W ceiling. This means zero injector hassle on standard enterprise PoE switches and no extra UPS provisioning. Installation labor drops measurably on retrofit projects because cabling runs consolidate.
• ONVIF Profile S Compatibility: Full interop with Genetec, Milestone, Avigilon, ExacqVision, and any standards-based NVR. PTZ control API includes preset recall, continuous pan/tilt/zoom, and alarm-driven positioning. No proprietary protocol baggage.
• Outdoor IP66 Dome Rating: Sealed housing withstands rain, salt spray, dust, and pressure washing without functional degradation. Protective dome design shields optics from UV and temperature extremes. No supplementary enclosures or weatherproof shrouds needed.
• Automatic Day/Night Switching: IR filter transitions at dusk (typically <10 lux) without frame interruption or manual mode selection. Monochrome IR mode in darkness uses passive IR illumination or supplementary IR lighting if deployed. Zero operational overhead during shift transitions.

Deployment Considerations:

• PTZ mechanics are more failure-prone than fixed optics in extreme cold. Below −20°C, pan-tilt servos slow down and can jam. On northern perimeters, budget for dome heaters and quarterly lubrication cycles. Coastal salt-spray environments require annual IR-dome and servo inspection to prevent corrosion lockup.
• Standard-speed dome pan-tilt speeds are measured in seconds per 360° rotation, not deciseconds. Suitable for lot and perimeter scanning, but inadequate for tracking fast-moving vehicles across open ground. If you need microsecond-level vehicle tracking, specify a high-speed PTZ instead (capex will triple).
• The I96 is a mid-range platform—no edge analytics, no on-board AI for object classification, no metadata export beyond ONVIF motion events. If you need perimeter intrusion detection or vehicle-make classification, add a separate edge analytics appliance or VMS-side rules engine. The I96 generates clean video; the intelligence layer is external.
• Zoom range affects installation height and coverage distance. Verify the telephoto reach against your lot geometry before mounting. A 10x zoom I96 on a 30-foot pole covers a 2,000 sq. meter lot; mount it at ground level and you lose effective zoom reach. Site survey is essential.
• PoE switch port selection matters. Reserve high-budget PoE ports (802.3at or higher) for the I96 if your switch has mixed 802.3af/802.3at ports. Some low-end switches will deprioritize 802.3af devices during power budget contention, causing camera resets. Segregate PTZ cameras onto dedicated PoE ports if possible.

The I96 is the right choice for integrators and end-user security teams deploying mid-scale parking-lot and perimeter surveillance where motorized zoom coverage justifies the PTZ investment but edge analytics and high-speed tracking are not requirements. For more options in the ACTi outdoor camera line, explore the ACTi catalog.
