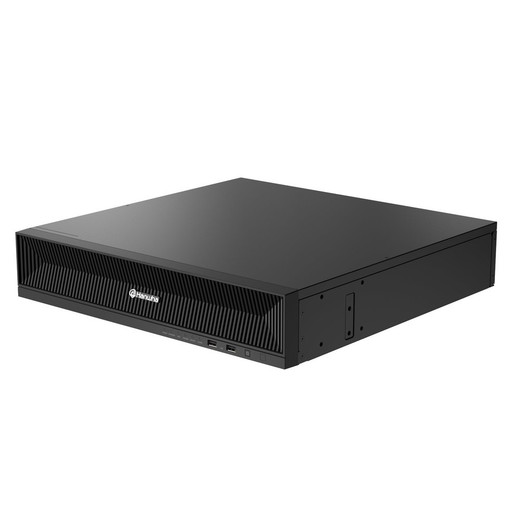

Hanwha XRN-3220B2 32-Channel 8K NVR 64TB
The Hanwha XRN-3220B2-64TB is an enterprise-grade 32-channel 8K NVR built on Intel 12th-generation processor architecture, purpose-built for large-scale deployments demanding high-resolution recording, advanced playback, and intelligent video management. With 64TB raw storage capacity distributed across eight internal SATA HDD bays (up to 10TB per drive), this NVR supports maximum camera resolution of 32MP recording and display, making it ideal for critical infrastructure, large campuses, and integrator-managed security ecosystems.
Key Features
- 32-channel 32MP NVR with Intel 12th-generation processor
- 64TB raw storage capacity (8 × SATA HDD bays, up to 10TB per drive)
- Up to 520 Mbps distributed-mode recording bandwidth; 300 Mbps normal-mode bandwidth
- 200 Mbps simultaneous multi-channel playback bandwidth
- H.265, H.264, and MJPEG codec support with WiseStream technology for bandwidth optimization
- Dual-stream recording with configurable event, schedule, and continuous modes
- Dual HDMI outputs: HDMI 1 (3840×2160 at 30Hz), HDMI 2 (1920×1080 at 60Hz)
- Multi-screen display with dynamic layout, virtual channel view, and up to 64 divisions
- Web UI 2.0 with no plugin requirement; supports up to 100 simultaneous web management connections
- AI Search capability for compatible Wisenet AI cameras
- Fisheye dewarping on local display, web interface, and CMS
- QR Code functionality for rapid configuration and secure access
Technical Specifications
- Recording Resolution: Up to 32MP per channel
- Video Compression: H.265, H.264, MJPEG
- Storage: 64TB raw capacity across 8 SATA HDD bays
- Recording Bandwidth: 520 Mbps (distributed), 300 Mbps (normal mode)
- Playback Bandwidth: 200 Mbps simultaneous multi-channel
- Display Outputs: Dual HDMI with 4K and Full HD support
- Web Management: Up to 100 concurrent connections
- Processor: Intel 12th generation
Ideal Applications
The XRN-3220B2-64TB excels in large-scale enterprise surveillance environments including corporate campuses, government facilities, critical infrastructure sites, transportation hubs, and retail chains. Its 32-channel capacity, dual-stream recording, and advanced codec support make it particularly suited for organizations requiring simultaneous high-resolution recording across multiple zones with intelligent playback and CMS integration capabilities.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-3220B2-64TB represents Hanwha's commitment to Intel-based NVR architecture for demanding enterprise deployments. The dual HDMI configuration (4K primary, Full HD secondary) enables flexible command center setups, while the 64TB capacity and 520 Mbps distributed recording bandwidth provide substantial headroom for 32MP multi-camera environments. H.265 codec support with WiseStream optimization directly reduces storage consumption and bandwidth requirements—critical factors in large-scale installations.
The Web UI 2.0 architecture eliminates plugin dependencies, improving security posture and operational flexibility across diverse IT environments. For integrators managing CMS-centric deployments, the combination of 32MP native resolution, fisheye dewarping, and AI Search integration with compatible Wisenet cameras creates a cohesive ecosystem. The 100-concurrent-connection capacity supports enterprise-scale multi-user access without performance degradation.
