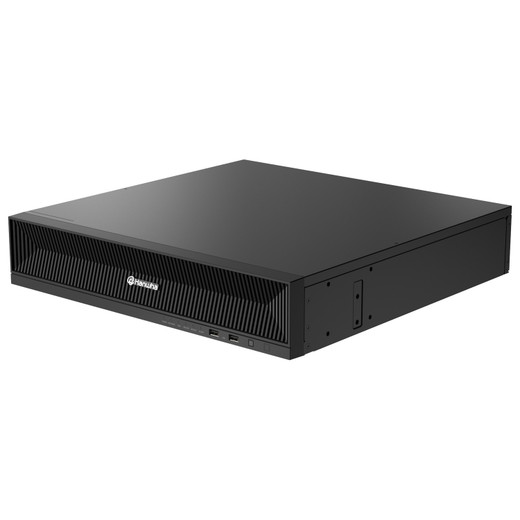

The Hanwha XRN-3220B2-80TB is a high-capacity 32-channel network video recorder engineered for large-scale surveillance deployments requiring extended storage and reliable performance in demanding environments.
This NVR delivers exceptional image fidelity with support for up to 32 MP resolution and advanced compression technologies including H.265, H.264, and MJPEG. The H.265 codec significantly reduces bandwidth and storage requirements without compromising visual quality, enabling efficient management of high-resolution streams across all 32 channels simultaneously. Wide Dynamic Range (WDR) processing ensures clear details in scenes with extreme lighting conditions, from bright sunlight to deep shadows, making it suitable for mixed indoor/outdoor deployments.
Built for professional security installations, the XRN-3220B2-80TB features a robust metal chassis with a compact 3U form factor that fits standard 19-inch server racks. Eight dedicated SATA HDD slots support up to 80TB of total storage capacity, providing extended retention periods for forensic review and compliance requirements. The embedded Linux operating system ensures stability and security while maintaining low power consumption compared to traditional PC-based solutions.
Integration is simplified through full ONVIF compliance, enabling seamless connectivity with IP cameras and third-party management systems from major manufacturers. Three 1Gbps RJ-45 Ethernet ports support flexible network configurations, including dedicated LAN/WAN separation for security-conscious deployments. Audio support via G.711, G.726, and AAC compression enables two-way communication and incident verification across the camera network.
Intelligent analytics capabilities including defocus detection, dynamic event triggers, and user-defined events enable automated incident response and reduce the burden of manual monitoring. The recorder operates reliably across a wide temperature range of 0°C to +40°C, accommodating both climate-controlled facilities and environments with seasonal temperature variations.
- 32-channel simultaneous recording at up to 32 MP resolution
- Up to 80TB HDD storage capacity with eight SATA slots
- H.265 codec for optimized bandwidth and storage efficiency
- Full ONVIF compatibility for multi-vendor camera integration
- Wide Dynamic Range (WDR) for mixed lighting environments
- Embedded Linux OS with three 1Gbps network interfaces
The XRN-3220B2-80TB is purpose-built for large facilities requiring 24/7 recording across dozens of cameras with extended retention. The 80TB capacity and H.265 compression make long-term storage economical, while the embedded Linux platform eliminates licensing costs and compatibility headaches. ONVIF support ensures you're not locked into a single camera vendor, and the three Gigabit ports allow intelligent network segmentation for security-conscious deployments. Ideal for campuses, manufacturing plants, and enterprise data centers.
