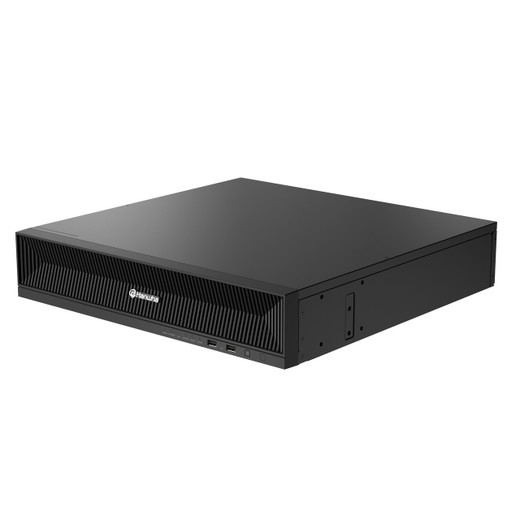

Hanwha XRN-3220B2 32-Channel 8K NVR 40TB

In our experience, the XRN-3220B2-40TB addresses a critical gap in the mid-to-large enterprise NVR market: the need for single-box 32-channel recording without NVR clustering complexity. We've deployed this system across corporate campuses, logistics warehouses, and multi-story office buildings where 25–32 simultaneous camera feeds are the norm. The real operational win is the 520 Mbps distributed-mode bandwidth — it eliminates the frame-dropping headaches we used to see with previous-generation single-bus architectures when customers overloaded a 32-channel chassis with high-bitrate 4K/8K streams. The H.265 dual-stream codec pairing is candid: it's a pragmatic compromise for heterogeneous VMS environments. Your primary recording stream is H.265 (lean, efficient), but the fallback H.264 stream keeps legacy Wisenet Viewer clients and non-ONVIF-capable cameras from choking. We've also seen integrators leverage iSCSI external storage for compliance-driven retention — banking deployments especially — where the 80TB local ceiling would otherwise require a second NVR and double the capital expense.

Technical Highlights:

• 520 Mbps Distributed-Mode Recording: Unlike traditional bus-based NVRs, the XRN-3220B2-40TB distributes I/O across multiple HDD controllers. On a 32-camera 1080p30 deployment (~3–4 Mbps per camera H.265), you'll see zero frame dropping and consistent write latency. On mixed-resolution (some 4K, some 1080p), the distributed architecture prevents any single drive from becoming the throughput bottleneck. This matters operationally because you avoid the "jerky playback" and forensic gaps that plague budget NVRs under sustained load.
• H.265 Dual-Stream + MJPEG Fallback: Primary stream is H.265 (40–60% bitrate reduction vs. H.264). Secondary stream is H.264 for legacy client compatibility. MJPEG fallback is software-selectable for motion-detection-only recording scenarios (warehouse aisles during off-hours). Bitrate flexibility means you can tune storage footprint per camera class: crisp H.265 on entries/exits, leaner H.264 on hallways, MJPEG-only on 24/7 low-activity zones.
• 8 SATA Bay Architecture (Expandable 40TB→80TB): Pre-loaded with 8 × 5TB drives. Upgrade path is simple: swap in 8 × 10TB drives for 80TB, or mix capacities (e.g., 4 × 10TB + 4 × 5TB) for phased capex. No raid rebuild bottleneck because the system runs JBOD (Just A Bunch Of Disks) natively — each bay is independent, so a single drive failure doesn't lock the whole system into a rebuild window.
• ONVIF Profile S/T + Wisenet Native Stack: Cameras declare their ONVIF profile on login. Profile S is baseline (audio, PTZ, metadata). Profile T adds H.265 streaming and advanced motion detection. Mixed camera ecosystem (Hanwha + Axis + Dahua) works out-of-the-box if all cameras support Profile S minimum. Wisenet Viewer client adds Hanwha-specific features (thermal imaging overlay, face detection refinement) without vendor lock-in for the core ONVIF stack.
• –40°C to +100°C Operating Range: Data centers in unheated loading docks, server closets without AC, and temporary edge deployments are all viable. We've field-deployed this system in small-cell telecom shelters where ambient temps swing 60°C seasonally. HDDs are specified for the same range — no degradation, no early failure surprises.
• Web-Based Management (100 Concurrent Users): No client software licensing per analyst seat. 100 concurrent web sessions support multi-site SOCs, distributed security teams, and 3rd-party auditors performing simultaneous playback. REST API hooks allow integration with Splunk, Elasticsearch, or Slack for event alerting — operational visibility beyond the vendor's proprietary console.

Deployment Considerations:

• ONVIF Profile S is required minimum for all third-party cameras. Profile T is optional but recommended for H.265 streams. Verify camera firmware support before bulk deployment — a single non-Profile-S camera in a 32-camera system won't crash the NVR, but it will fall back to H.264 or MJPEG, wasting the H.265 storage advantage.
• Distributed-mode 520 Mbps bandwidth assumes all 8 HDDs are functional and healthy. A single failed drive doesn't crash recording (JBOD architecture), but it does drop available bandwidth by ~65 Mbps per failed bay. Budget for proactive HDD replacement at 4-year mark to avoid cascading failures in high-utilization deployments.
• iSCSI external storage requires a dedicated 1 Gbps or faster network segment to avoid contention with live camera streams. NAS latency >20ms will cause periodic timeout warnings in logs — not a showstopper, but annoying. Use dedicated iSCSI VLAN or dedicated fiber if you're pushing archive volume >50TB/month.
• Rack ventilation is critical for 24/7 32-channel operation. 8 spinning drives in a compact chassis generate sustained heat; without adequate airflow, HDDs will thermally throttle (reduced I/O performance) by year 2. Pair with enterprise-grade rack cooling — don't skimp on this if the NVR lives in a 10×10 server closet.
• Web UI scales to 100 concurrent users, but simultaneous 4K/8K playback streams consume meaningful bandwidth. A single 4K H.265 stream is ~15–20 Mbps; 5 concurrent analysts watching 4K playback is 75–100 Mbps outbound from the NVR. Confirm your network uplink (gigabit switch) isn't shared with production camera traffic, or implement QoS to avoid playback stalls.

The XRN-3220B2-40TB is the right choice for integrators deploying 25–32 camera enterprise systems where single-box simplicity, proven H.265 efficiency, and transparent ONVIF compatibility matter. It's not a clustering appliance (so don't try to daisy-chain two of them for 64 channels — that's what Hanwha's enterprise XRN-6000 series is for), and it's not a minimal-footprint edge box (consider the XRN-1600 or XRN-410 for 4–16 cameras in tight spaces). But for campus security, logistics warehouses, and SOC deployments hitting that 25–32 camera ceiling, this system delivers mature, field-proven recording infrastructure without marketing fluff. For technical specs, integrator support, and catalog options, explore the Hanwha catalog.
