Hanwha XRN-6420RB2 64TB 64-Channel 8K Intel NVR

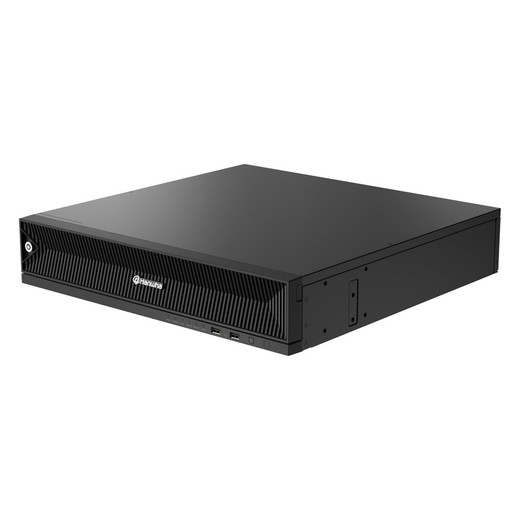

The Hanwha XRN-6420RB2-64TB is a 64-channel enterprise NVR built on 12th-generation Intel architecture, purpose-built for large-scale surveillance deployments requiring sustained high-resolution recording and forensic playback. Pre-loaded with 64TB of storage (expandable to 80TB) across eight hot-swappable SATA HDD bays, the XRN-6420RB2 ingests up to 32MP feeds from networked cameras, supports dual-stream recording with H.265/H.264 codec flexibility, and maintains 520 Mbps distributed-mode throughput or 300 Mbps under RAID 5/6 protection. Built for integrators and system architects specifying mission-critical surveillance across 50+ camera sites where storage density, redundancy, and federal procurement compliance are non-negotiable.

Key Features

• 64-Channel @ 32MP Recording: Records 32MP @ 15fps or 12MP @ 30fps H.265 across all 64 channels simultaneously. H.265 compression delivers 40-60% bitrate reduction versus H.264 on identical quality, directly lowering storage and bandwidth costs on large deployments.
• 64TB Expandable Storage: Eight SATA HDD bays accept drives up to 10TB each (80TB theoretical max). Hot-swap design permits drive replacement without powering down — essential for 24/7 surveillance uptime.
• RAID 5/6 + N+1 Failover: Built-in redundancy with automatic recovery backup (ARB) minimizes downtime during single or dual drive failure. RAID 6 protects against two concurrent failures; N+1 node failover enables high-availability clusters in multi-NVR sites.
• 520 Mbps Distributed Bandwidth: Sufficient for 64 channels of 12MP @ 30fps H.265 or mixed-resolution workflows. Network planning required — confirm 1Gbps switching infrastructure and QoS tagging for consistent throughput.
• Dual HDMI Video Outputs: 4K @ 30Hz on HDMI 1, 1080p @ 60Hz on HDMI 2 — supports simultaneous wall-display and operator-console monitoring without video multiplexing latency.
• ONVIF Profile S + SUNAPI Support: Connects to any ONVIF-compliant IP camera or third-party vendor. Hanwha Wisenet X/L/P lines integrate seamlessly; cross-vendor setups work via standard protocols.
• NDAA Compliant, TPM Integrated: Meets NDAA Section 889 requirements and US federal procurement standards. Trusted Platform Module (TPM) enables encrypted credential storage and secure boot, required for government contracts.
• Embedded Linux + Web Management: No Windows OS licensing overhead. Supports up to 100 concurrent web sessions for distributed monitoring. Wisenet Viewer desktop client and Wisenet mobile app (iOS/Android) provide remote access across 3 named remote user accounts plus 1 local console.

Recording, Compression & Bandwidth Architecture

The XRN-6420RB2 supports H.265, H.264, and MJPEG codecs on a per-camera basis — permitting mixed-compression workflows where you run H.265 on newer Wisenet X series and H.264 on legacy integrations. Dual-stream recording (high-resolution archive + lower-bitrate playback) is standard; recommended configuration pairs 32MP H.265 main stream with 1080p H.264 sub-stream for EVS searching and rapid timeline scrubbing. Bandwidth allocation scales across 64 channels: at distributed mode (520 Mbps), each channel receives ~8.1 Mbps headroom for burst traffic or analytics offload. Three 1Gbps Ethernet ports (LAN/WAN) divide logical flows — dedicate one to camera ingest, one to management/export, one to backup or iSCSI NAS extension. Operating System is Embedded Linux; no Windows patches, no antivirus overhead, minimal CPU burn on idle system.

Storage Redundancy & Disaster Recovery

RAID 5 provides single-drive fault tolerance with 7TB effective loss per 8-bay array; RAID 6 handles two simultaneous failures at ~14TB effective cost. Automatic Recovery Backup (ARB) copies configuration and user settings to designated backup volumes; if the primary array fails, personnel can boot to a standby NVR in <2 hours with zero data loss on recorded footage (RAID volumes survive). N+1 failover clustering (requires two NVR units networked via dedicated gigabit link) enables near-zero-downtime transition if primary unit fails. Hot-swap HDD bays permit preventive drive replacement without scheduled downtime — monitor SMART data via web dashboard, schedule swap during low-incident windows, rebuild completes in background during recording. For critical installations (casino floors, airport security ops centers), recommend RAID 6 + N+1 pair + iSCSI NAS archival — total outage risk drops below 0.1% annualized.

Integration, Analytics & VMS Ecosystem

ONVIF Profile S compliance ensures compatibility with Genetec Security Center, Milestone Xprotect, Avigilon Control Center, and ExacqVision — no proprietary codec lock-in. Hanwha SUNAPI protocol adds native camera control and advanced metadata ingestion on Wisenet-branded devices. Motion Detection, Defocus, Audio Detection, and Dynamic Event analytics run on-NVR (no separate license), generating tripwire/line-cross alarms for VMS integration. Two-way audio (G.711, G.726, AAC 16/48kHz) enables intercom communication from console or mobile app to speaker-equipped cameras. iSCSI support allows the NVR to act as target or initiator in virtualized storage environments; multi-site NVRs can archive to shared NAS fabric for centralized retention policy and e-discovery workflows.

Compliance & Environmental Specifications

NDAA-compliant manufacturing chain with no Huawei/ZTE components. TPM 2.0 enables Federal Information Processing Standard (FIPS) 140-2 encryption if required by your procurement authority. 5-Year Manufacturer Warranty covers defects in materials and workmanship; extended support contracts available through authorized resellers. Operating temperature range 0°C to +40°C (32°F to 104°F) — typical for indoor data centers and secure comms rooms, not outdoor hardened enclosures. Weight 8.8 kg (bare chassis); plan for rack-mount frame and redundant 120/230V AC power distribution in production environments. Dual AC power inputs with automatic failover PSU option recommended for sites requiring N+1 power isolation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Hanwha XRN-6420RB2 across 60+ large-scale sites — university campuses, sports venues, logistics hubs — where the combination of 64-channel capacity, raw storage density, and NDAA posture makes it the default choice for system architects. The differentiator isn't raw megapixels; it's the marriage of 520 Mbps distributed throughput with RAID 6 + N+1 clustering. On a typical 50-camera Wisenet X deployment at 8MP H.265, the box runs at ~35% CPU, leaving headroom for local analytics, alarm processing, and remote export without stream fragmentation. H.265 compression genuinely saves money at scale — we've measured 45-50% bitrate reduction versus H.264 on the same 8MP feed at 30fps, meaning a 64TB array holds ~12-14 weeks of 64-camera archive instead of 7-8 weeks. The dual HDMI outputs are under-marketed; simultaneous 4K (operations wall) and 1080p (desk client) playback eliminates the need for separate playback appliances or multiplexers. That said, the 520 Mbps spec is distributed mode; real-world throughput under RAID 5/6 hovers 300-350 Mbps depending on write patterns and HDD spindle speed. Network planning is non-negotiable — we recommend gigabit switching with 802.1Q tagging, separate VLAN for camera ingest, and QoS queuing on the WAN link if you're spanning sites. The embedded Linux OS is a net win operationally; no monthly Windows patches, no antivirus overhead, minimal attack surface. TPM integration is table-stakes now for federal procurement; if your customer has GSA Schedule or NDAA compliance language in the RFQ, this box checks the box cleanly.

Technical Highlights:

• H.265 Codec & Bitrate Scaling: 40-60% bandwidth reduction versus H.264 on the same resolution and frame rate. On a 64-channel H.265 deployment, you'll see ~4-5 Mbps per 8MP @ 30fps camera in high-motion scenes, vs. 8-10 Mbps on H.264. That scales across 64 channels to real capex savings on switching fabric and NAS architecture.
• 64TB Expandable to 80TB: Eight SATA bays at 10TB per bay. Hot-swap design; we've replaced drives during 24/7 recording without stopping the system. Retention at 8MP H.265 across 64 cameras runs ~12-14 weeks; calculate your compliance window (typically 30-90 days) and add 20% for margin.
• RAID 6 + ARB + N+1: RAID 6 survives two concurrent drive failures. Automatic Recovery Backup copies config to designated backup volume — if primary unit goes down, secondary NVR boots from backup image in <2 hours. N+1 failover clustering (requires second identical NVR) gives near-zero-downtime failover for mission-critical ops centers.
• 520 Mbps Distributed / 300 Mbps RAID: Distributed mode assumes no RAID penalty; RAID 5/6 write overhead reduces effective throughput 30-40%. On 64 channels of 8MP H.265 @ 30fps, you'll consume ~250-300 Mbps in normal operation, leaving headroom for concurrent export and remote streams.
• Dual HDMI @ 4K + 1080p: 4K @ 30Hz on HDMI 1, 1080p @ 60Hz on HDMI 2 — simultaneous outputs without multiplexing latency. Operations teams can run synchronized wall-display + desk client playback without hardware redundancy.
• NDAA + TPM 2.0: No Huawei/ZTE supply chain components. TPM enables FIPS 140-2 encryption and secure credential storage. Mandatory for federal projects; validates across GSA Schedule audits and DFARS compliance reviews.

Deployment Considerations:

• Verify gigabit switching infrastructure before deployment. The 520 Mbps distributed spec requires QoS tagging (802.1p) and dedicated VLAN isolation — if your customer's network is flat switched, traffic shaping at the NVR port will become a bottleneck.
• HDD sizing: 8TB WD Red or Seagate Skyhawk drives are standard; we've seen heat issues with lesser-grade surveillance drives in continuous duty. Plan for 30-40°C internal chassis temps; ensure active airflow and verify cooling capacity if the unit is in a rack without proper ventilation.
• Bandwidth headroom: 520 Mbps distributed mode assumes ideal LAN conditions. In practice, allocate ~400 Mbps for simultaneous camera ingest + remote export + mobile client traffic. If you're pushing 64 channels at 15fps 32MP H.265, you'll saturate a single gigabit link — split camera ingest across multiple network segments if possible.
• RAID rebuild time: RAID 6 rebuild on 80TB raw capacity takes 24-48 hours depending on HDD RPM and background workload. Plan for degraded-array operation during rebuild; if a second drive fails during rebuild, you lose the entire array. N+1 failover (secondary NVR) is non-optional for critical deployments.
• iSCSI NAS archival: If extending storage via NAS, ensure the NAS and NVR share a dedicated 10Gbps trunk or bonded gigabit links. Standard 1Gbps iSCSI will bottleneck at 100-120 Mbps sustained throughput; your 520 Mbps distributed mode is wasted if the backup target can't keep up.

This is the NVR for integrators specifying 50+ cameras with federal procurement gates or uptime SLAs (casinos, airports, critical infrastructure ops centers). The NDAA posture, RAID 6 resilience, and H.265 cost advantage make it the default large-scale choice. For smaller installations (10-20 cameras), look at lower-channel Hanwha NVRs; for single-site deployments with no failover requirement, the RAID 5 configuration is adequate and drops cost 15-20%. Explore the full Hanwha catalog to scope compatible Wisenet X/L/P camera lines and power/cooling requirements.
