The Hanwha PRN-6400DB4-128TB is a professional-grade 64-channel network video recorder designed for large-scale surveillance deployments requiring extended storage and high-resolution video management.
This NVR delivers exceptional image quality with support for up to 32 MP resolution and 20 MP+ video streams, enabling detailed monitoring across dozens of simultaneous camera feeds. The system supports multiple compression standards—H.265, H.264, and MJPEG—allowing flexible bandwidth optimization and compatibility with diverse camera ecosystems. Wide Dynamic Range (WDR) processing further enhances image clarity in challenging lighting conditions, ensuring usable video in both bright and dim environments.
Built for reliability and performance, the PRN-6400DB4-128TB features an embedded Linux operating system and Intel-based processing architecture optimized for sustained multi-channel recording and playback. The 128TB storage capacity accommodates extended retention periods, critical for compliance and forensic investigations. Triple Gigabit Ethernet (RJ-45, 1Gbps) connectivity ensures robust network integration across LAN/WAN infrastructures, while comprehensive audio support via G.711, G.726, and AAC (16/48KHz) codecs enables synchronized audio recording when required.
The compact metal chassis (17.32" W × 5.2" H × 22.48" D) fits standard rack environments without consuming excessive floor space, while the operating temperature range of 0°C to +40°C (32°F to 104°F) supports deployment in climate-controlled server rooms and NOCs. ONVIF compliance guarantees interoperability with third-party IP cameras and management platforms, reducing vendor lock-in and simplifying system expansion.

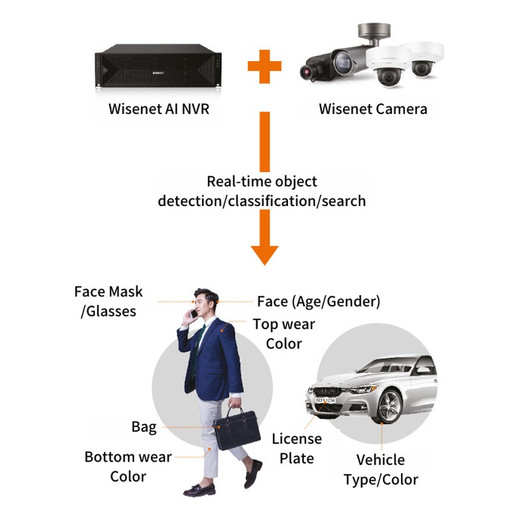

Advanced analytics capabilities including defocus detection, audio analytics, dynamic event triggering, and user-defined events enable intelligent monitoring workflows. The camera setup interface simplifies initial configuration and ongoing management of large camera arrays.
- 64-channel simultaneous recording with 32 MP resolution support
- 128TB storage capacity for extended video retention
- Embedded Linux OS with Intel processor architecture
- Triple 1Gbps Ethernet ports for LAN/WAN connectivity
- H.265/H.264/MJPEG compression for bandwidth flexibility
- ONVIF-compliant for third-party camera integration
The PRN-6400DB4-128TB is engineered for enterprise-scale surveillance where channel density and storage longevity matter. Its triple Gigabit Ethernet and ONVIF support make it a flexible choice for mixed-camera environments, while H.265 compression and 128TB capacity deliver real cost savings on bandwidth and archival. Size and thermal range suit standard data centers. Best fit: municipal, critical infrastructure, and large campus deployments requiring 64-channel capability without custom integration headaches.
