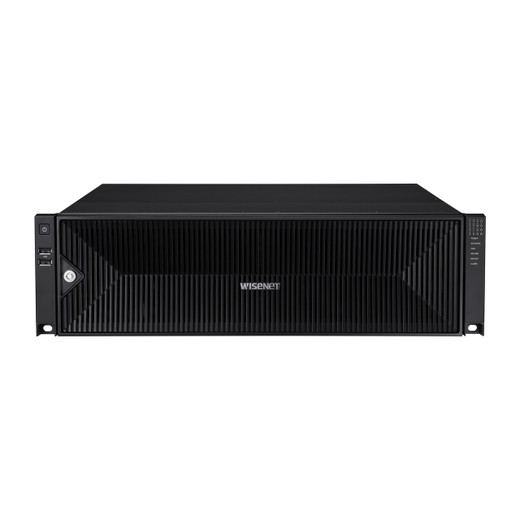

The Hanwha PRN-6400DB4-120TB is a high-capacity 64-channel network video recorder engineered for large-scale surveillance deployments requiring extended storage and 8K-grade processing capability.
This NVR supports up to 32MP resolution input and processes video streams with advanced compression standards including H.265, H.264, and MJPEG, ensuring efficient bandwidth utilization without sacrificing image quality. The 120TB storage capacity provides extended retention periods for multi-camera installations, while WDR (Wide Dynamic Range) technology enhances detail capture in mixed-light environments. Support for multiple audio codecs—G.711, G.726, and AAC at 16/48KHz—enables integrated audio recording for comprehensive event documentation.
Built on embedded Linux architecture, the recorder delivers stable, purpose-built performance without unnecessary operating system overhead. The unit features three independent RJ-45 Ethernet ports rated at 1Gbps each, supporting simultaneous LAN/WAN connectivity for distributed network monitoring, failover configurations, and remote access. Full ONVIF compliance ensures seamless integration with third-party IP cameras and management platforms, eliminating vendor lock-in concerns and supporting heterogeneous camera ecosystems.

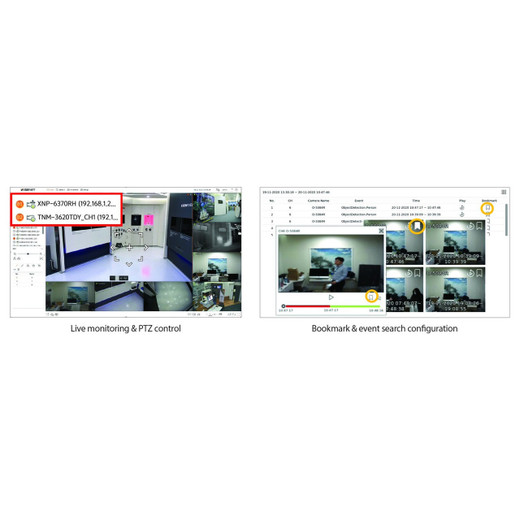

The recorder incorporates sophisticated video analytics including Defocus detection, Dynamic Event processing, and User Event triggers, enabling intelligent motion detection, scene change monitoring, and custom rule-based alerts. These capabilities reduce false alarms and allow operators to prioritize genuine security events across dozens of simultaneous feeds.
Housed in a robust black metal chassis measuring 17.32" W × 5.2" H × 22.48" D, the unit is designed for standard 19-inch rack mounting or shelf placement in control rooms, data centers, and security operations centers. Operating temperature range of 0°C to +40°C (32℉ to 104℉) accommodates typical indoor environments while maintaining thermal stability under continuous operation.
Ideal applications include large retail chains, multi-site corporate campuses, transportation hubs, critical infrastructure facilities, and government installations where centralized recording of 64+ camera streams with extended archival storage is required.
- 64-channel recording capacity with 120TB integrated storage
- Up to 32MP resolution support with H.265 compression efficiency
- WDR technology for improved detail in variable lighting conditions
- Triple 1Gbps Ethernet ports for redundant network connectivity
- ONVIF-compliant for vendor-agnostic camera integration
- Advanced analytics: Defocus, Dynamic Event, User Event detection
The 120TB capacity paired with H.265 compression means this recorder can sustain months of continuous recording from 64 cameras in typical retail or corporate environments. The triple Ethernet ports are a practical advantage for network redundancy—critical for 24/7 operations where a single connection failure cannot interrupt surveillance. Verify your camera fleet supports ONVIF before deployment to maximize the flexibility this platform offers.
