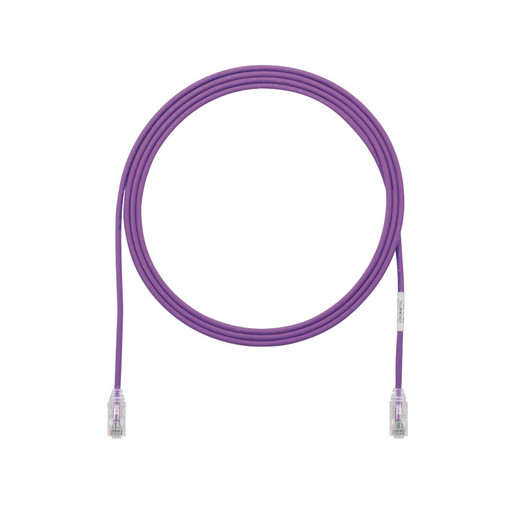

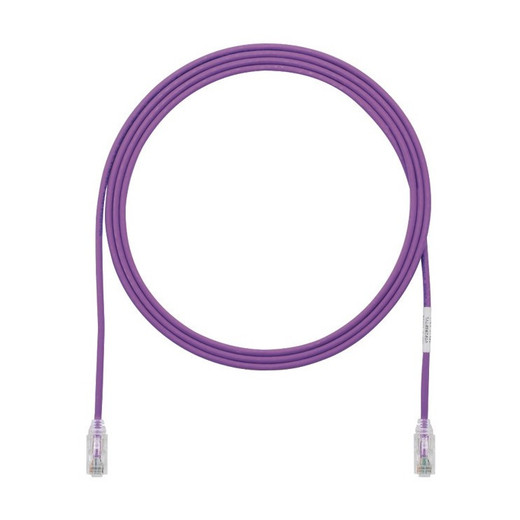

Panduit UTP28SP8VL Patch Cord

Overview

The Panduit UTP28SP8VL is an 8-foot, 28 AWG Category 6 unshielded twisted pair (U/UTP) patch cord. Constructed with a CM/LSZH (CM/Low Smoke Zero Halogen) jacket and high-performance modular plugs, this violet cord is designed for clean cable management and reliable data transmission in commercial environments. Its compact 3.8mm diameter simplifies routing in high-density racks, and the tangle-free latch ensures easy insertion and removal. This cord is 100% performance tested for wire map, NEXT, and return loss, ensuring it meets stringent network requirements.

Compatibility

This Panduit UTP28SP8VL patch cord is engineered to support a range of networking applications including 1000BASE-T (Gigabit Ethernet) and 100BASE-T (Fast Ethernet). It is also compatible with 155 Mb/s and 622 Mb/s ATM, 1.2 Gb/s ATM, digital video systems, and voice/data systems, including Voice over Internet Protocol (VoIP). It supports IEEE 802.3af/802.3at (up to 48 cables in a bundle) and 802.3bt types 3 and 4 (up to 24 cables in a bundle) Power over Ethernet (PoE) applications, making it suitable for powering network devices.

Installation Notes

The 28 AWG conductor gauge and 3.8mm cable diameter facilitate easier installation and management in crowded network closets. The patented tangle-free latch design prevents snags during connection and disconnection, streamlining moves, adds, and changes. The cord is equipped with pre-installed RapidID barcodes for simplified port mapping when used with compatible RapidID software solutions.
