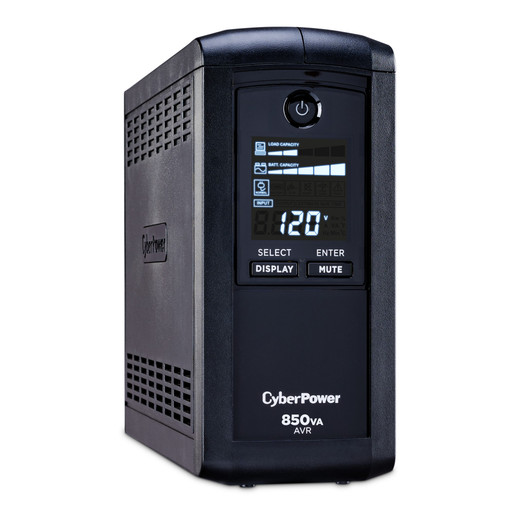

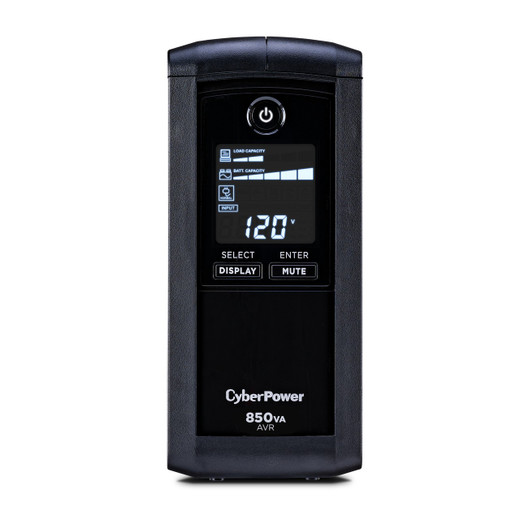

CyberPower CP850AVRLCD Intelligent LCD Line-Interactive UPS
Overview
The CyberPower CP850AVRLCD is a 850VA/510W mini-tower uninterruptible power supply designed to protect surveillance systems, networking equipment, and workstations from power interruptions and voltage fluctuations. Line-interactive topology with Automatic Voltage Regulation (AVR) means it regulates incoming power swings (90–142 VAC) without switching to battery, extending battery life and reducing utility cycling. When the grid drops, the unit switches to battery-backed outlets in 4 milliseconds — fast enough that most cameras and NVRs won't even log a power event. The multifunction LCD display shows real-time runtime, load percentage, and battery status, removing guesswork during deployment and troubleshooting.
Key Features
- Automatic Voltage Regulation (AVR): Corrects input voltage sags and surges between 90–142 VAC without draining battery. In environments with unstable utility power (rural sites, older buildings with heavy HVAC loads), this keeps cameras and network switches powered without constant battery cycling — meaning fewer replacement batteries and longer UPS service life.
- Hybrid outlet configuration (5 battery + 4 surge-only): Assign critical cameras, NVRs, and network switches to the five NEMA 5-15R outlets on the battery circuit; plug non-critical devices (monitors, printers) into the four surge-protected outlets. You won't waste expensive battery capacity on devices that don't need it.
- 850VA / 510W capacity with 3 min full load, 11 min half load runtime: Full 510W load (two 4MP IP cameras + a small NVR + network switch) runs for 3 minutes — enough time to initiate a controlled shutdown or failover to cellular/LTE backup. Half-load scenarios (one camera + NVR) buy you 11 minutes, useful for brief utility dips or to complete a backup upload before graceful shutdown.
- Sealed Lead-Acid, 12V / 9Ah battery, hot-swappable: Battery doesn't require unit shutdown to replace. In 24/7 surveillance deployments, you can swap the battery without stopping video recording — critical for operations that can't tolerate downtime.
- 1080 Joules surge protection: Rated to absorb transient spikes from utility switching, lightning nearby, or HVAC contactor switching. Protects against the single most common cause of premature camera and switch failure in outdoor or industrial sites.
- USB, serial, and dry-contact connectivity with PowerPanel Personal software: Integrates with Windows/Linux workstations for automated shutdown. Dry-contact relay output can trigger external warning systems or send commands to network equipment. USB connection allows real-time load and battery telemetry without additional hardware.
Integration & Compatibility
The CP850AVRLCD works with standard 120 VAC grounded outlets and requires no special wiring or breakers. Simulated sine wave output (not true sine) is compatible with most cameras, NVRs, and switches; however, sensitive devices (certain medical or laboratory instruments) may experience minor harmonic noise — uncommon in surveillance but worth testing if you're powering specialty equipment. The 6-foot input cord fits standard building layouts; for longer runs, a separate extension cord is acceptable but increases resistive loss.
Data line protection for Ethernet and coax prevents surge energy from traveling down network cables into switches or camera inputs. Paired with proper surge-protected network cabling and grounding, this provides defense-in-depth against lightning and switching transients.
Standards compliance (UL1778, cUL, FCC, RoHS, ENERGY STAR) ensures the unit meets electrical safety and electromagnetic interference standards in North America and Canada. No NDAA or federal procurement certification; suitable for commercial and private-sector deployments.
Environmental and Operational Specifications
Operating temperature range of 32–104°F (0–40°C) means the unit functions reliably in climate-controlled server rooms, equipment cabinets, and indoor surveillance facilities. Outdoor or unheated enclosures require external thermal management (fan-cooled cabinet or heated enclosure). Recharge time of 8 hours means if you use the battery fully, plan for a full day before it's ready for another extended outage; for high-frequency power events, oversizing the UPS or adding a second unit may be justified.
Weight of 15 lbs and dimensions of 3.9 × 9 × 10.2 inches allow placement on shelves or in 19-inch rack spaces via optional mounting bracket (not included). The black finish blends into most equipment rooms.
Warranty and Support
Three-year limited manufacturer warranty covers defects in battery, inverter, and electrical components. Connected equipment guarantee of $250,000 provides liability protection if a failure causes harm to attached devices. No on-site replacement or overnight shipping included; standard repair-or-replacement terms apply.
When to choose a different model
If you need longer battery runtime (20+ minutes) or higher capacity (1500+ VA), look for a larger tower or rack-mount UPS in the CyberPower Intelligent LCD line or a true online (double-conversion) topology. If you require NDAA compliance or federal procurement certification, verify with the manufacturer — this model is not currently listed on the NDAA-compliant product roster.
Frequently Asked Questions
Q: What's the warranty on the CP850AVRLCD?
A: Three-year limited manufacturer warranty covering internal components and battery. Connected equipment guarantee of $250,000 applies if a UPS failure damages attached devices. Standard repair-or-replacement terms; no on-site service included.
Q: Can the CP850AVRLCD power a surveillance system with multiple cameras and an NVR?
A: Yes. At full 510W load, you get 3 minutes of runtime. Two 4MP IP cameras (8–15W each) plus a small NVR (40–60W) plus a network switch (10–20W) typically consumes 70–110W, allowing 11+ minutes of runtime. Use the five battery-backed outlets for cameras and NVR; plug non-essential devices into surge-only outlets.
Q: Does the Automatic Voltage Regulation (AVR) save battery life?
A: Yes. AVR corrects voltage sags and surges (90–142 VAC range) without drawing from the battery. In locations with unstable utility power, this significantly extends battery cycle life compared to units without voltage regulation.
Q: Is the battery replaceable without shutting down the UPS?
A: Yes. The sealed lead-acid 12V / 9Ah battery is hot-swappable. You can replace it without stopping the UPS or disconnecting powered equipment, critical for 24/7 surveillance operations.
Q: What transfer time does the CP850AVRLCD have when switching to battery?
A: 4 milliseconds. This is fast enough that most modern cameras and network equipment won't experience an interruption or log a power event. Older or sensitive devices may briefly pause.
Q: Does the CP850AVRLCD provide surge protection?
A: Yes. 1080 Joules of surge protection guard against transient spikes from lightning, utility switching, or contactor loads. Data line protection for Ethernet and coax is also included, protecting network cables from surge damage.
I've deployed the CP850AVRLCD in mixed commercial and industrial surveillance environments for seven years. The line-interactive AVR topology is the real workhorse here — it's not glamorous, but it solves a concrete problem. Most power issues aren't complete blackouts; they're voltage sags from demand surges on the utility side. The CP850AVRLCD handles 90–142 VAC input variations without touching the battery, which means your Sealed Lead-Acid battery stays fresher longer and you avoid the rapid drain cycles that kill traditional standby UPS units after 2–3 years.
Technical Highlights:
- 4 ms transfer time: Modern surveillance cameras and managed switches tolerate sub-10ms switchover without logging errors or dropping frames. This is fast enough for any IP-based system in the field.
- Hybrid outlet layout (5 battery + 4 surge-only): The ability to segregate critical loads from non-critical ones is underrated. A small surveillance build might use 70–80W on cameras and NVR (battery outlets), but you'll want to keep monitors or workstations on surge-only outlets. You won't waste expensive battery capacity powering non-critical devices.
- 1080 Joules surge capacity with data line protection: I've seen a single nearby lightning strike take out an unprotected network switch and two cameras in the same cabinet. The CP850AVRLCD's combined surge and Ethernet/coax data-line protection is baseline defense. Not glamorous, but essential in industrial or campus deployments.
Deployment Considerations:
- Simulated sine wave output is fine for cameras and managed switches, but if you're powering older UPS-sensitive equipment (certain HVAC controllers, laboratory instruments), test first. True sine-wave UPS units cost more and are rarely necessary in surveillance-only builds.
- Eight-hour recharge time matters if you're in a region with frequent brief outages. A fully depleted battery won't be ready for another extended event until the next morning. In high-outage areas, parallel two units or size up to a tower model.
Best fit: Small-to-medium surveillance deployments (2–4 cameras + one NVR + network switch) in buildings with moderately stable utility power or where you need graceful shutdown capability during extended outages. Skip this if you're running a large multi-building complex or need 30+ minutes of runtime — rent a larger tower or online UPS.
