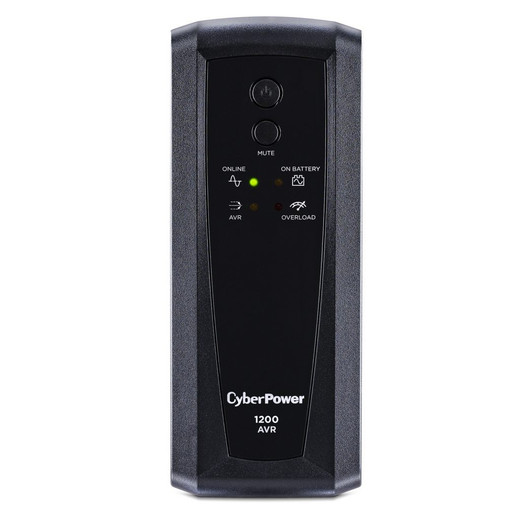

CyberPower CP1200AVR 1200VA Line Interactive UPS with AVR
The CyberPower CP1200AVR delivers 1200VA/720W of line-interactive battery backup and surge protection for security NVRs, PoE switches, access control panels, and IP camera infrastructure. Automatic Voltage Regulation (AVR) corrects brownouts and overvoltage without draining the battery, extending service life and reducing nuisance battery-mode switching during minor grid fluctuations. Ten NEMA 5-15R outlets split 5-and-5 between battery-backed and surge-only circuits, letting you prioritize critical loads while protecting peripherals from transients. Runtime delivers 12 minutes at 360W half-load—enough to ride out brief outages or execute a clean NVR shutdown.
Key Features
- 1200VA/720W capacity supports mid-size NVR + PoE switch or access panel + reader power supply
- Automatic Voltage Regulation (AVR) corrects 88–144 VAC input to stable 120 VAC ± 5% without battery drain
- Line-interactive topology with simulated sine wave on battery (pure sine on AC pass-through)
- 10 NEMA 5-15R outlets: 5 battery + surge, 5 surge-only with transformer spacing for wall warts
- 12-minute runtime at 360W half-load; 3 minutes at 720W full load
- RJ45 Gigabit Ethernet, RG6 coaxial, and phone-line surge protection for IP cameras and DVR/NVR tuners
- USB HID monitoring + PowerPanel Personal software for auto-shutdown and event logging
- User-replaceable 2×12V/7Ah sealed lead-acid batteries—no service call required
- GreenPower UPS Bypass draws zero power when AC is clean and load is light
- ENERGY STAR certified; UL1778 listed; 3-year manufacturer warranty
The CP1200AVR uses line-interactive topology—a step up from standby/offline UPS designs common in consumer units. A multi-tap buck-boost transformer applies Automatic Voltage Regulation to incoming AC, correcting sags (brownouts) and swells (overvoltage) in real time without switching to battery. When mains voltage sits between 88 and 144 VAC, the AVR circuit boosts or trims to 120 VAC ± 5%, keeping your NVR and network gear stable through grid stress. Only when voltage leaves that window—or during a full outage—does the inverter engage and draw from the battery. This behavior is critical in commercial buildings with HVAC startup loads, elevator motor inrush, or aging utility transformers that sag 10–15% under peak demand. By handling routine fluctuations on AVR alone, battery cycling stays low, heat stays down, and you avoid the 18–24 month battery-life penalty that kills standby UPS units run in marginal-voltage environments.
Output on battery is simulated sine wave (stepped approximation), not pure sine. For security and surveillance loads—switch-mode power supplies in NVRs, IP cameras, PoE injectors, managed switches, access panels—simulated sine works fine; these devices run on rectified DC internally and tolerate the waveform. Motors, laser printers, and certain medical or lab instruments require pure sine and won't run happily here. Know your load: if it's all IT/security gear with switching PSUs, you're clear. If the rack includes a cooling fan with an induction motor or a UL-medical-rated device, spec a pure-sine model instead. The CP1200AVR passes pure sine wave during normal AC operation—the simulated wave only appears when running on battery.
Runtime and capacity: At the rated 720W maximum continuous load, expect 3 minutes—enough to detect the outage, write NVR buffers to disk, and initiate a controlled shutdown via USB signaling. At 360W half-load (a 16-channel 150W NVR plus a 200W 8-port PoE+ switch), runtime extends to 12 minutes, giving you margin to ride out momentary grid faults or wait for a standby generator to come online. Typical security rack loads for this unit: a mid-size 8–16 channel NVR (100–200W), a managed PoE switch feeding 6–12 cameras (150–250W), and an access control panel with 2–4 reader power supplies (50–100W combined). If your load pushes past 600W sustained, consider the CP1500PFCLCD (pure sine, 1000W) or stack a second CP1200AVR on non-critical peripherals (monitors, a workstation, a secondary switch) to spread the demand.
The battery compartment houses two user-replaceable 12V/7Ah sealed lead-acid cells. Replacement part number RB1270X2A. Expected service life 3–5 years in climate-controlled IT closets at 68–77°F; hotter environments (above 85°F) cut that to 2–3 years. The front-panel LED and audible alarm signal low-battery, overload, and replace-battery conditions. PowerPanel Personal software (Windows/macOS/Linux) adds email alerts, graceful-shutdown scripting, self-test scheduling, and event logging to syslog or SNMP traps. For centralized management across multiple UPS units, CyberPower's PowerPanel Business (separate license) supports SNMP, vSphere integration, and Hyper-V cluster shutdown—beyond the scope of most single-site security installs but relevant for enterprise NOC or datacenter deployments.
Deployment context: Mini-tower form factor (13.7 × 9.8 × 3.9 in, 21.8 lb) sits on the floor beside a rack or under a bench—not rack-mountable without a third-party shelf. Five surge-only outlets let you protect a monitor, a desktop workstation, or PoE injectors that don't need battery runtime but benefit from MOV transient suppression and the data-line protection. The RJ45 protection handles Gigabit Ethernet (10/100/1000) pass-through with sub-nanosecond clamping—run your NVR's WAN uplink or a management VLAN through it to guard against lightning-induced surges on structured cabling. Coax RG6 protection suits legacy analog DVR tuner inputs or BNC-over-coax IP camera extenders; phone-line RJ11 jacks protect DSL modems, door-strike intercoms, or alarm-panel telco demarc connections. All three data-line protections are passive shunt networks—they introduce no latency, work at line rate, and require no additional power.
The GreenPower UPS Bypass design automatically disengages the inverter during light-load conditions when AC quality is nominal, dropping idle consumption to under 5W. When load exceeds the bypass threshold (~10% rated) or when the grid requires AVR correction, the inverter re-engages. ENERGY STAR certification confirms >95% efficiency at typical 50% load—less heat, lower monthly kWh cost, quieter fan operation. Transformer-spaced outlets on the surge-only bank accommodate three wide-body wall warts without blocking adjacent sockets. The unit ships with a 5-foot detachable NEMA 5-15P input cord and a 6-foot USB A-to-B cable for monitoring connectivity.
UL1778 listing and cUL recognition confirm compliance with US/Canada safety standards for stationary engine-generator sets and UPS systems. FCC Part 15 Class B (conducted and radiated emissions) allows residential and light-commercial installation without EMI mitigation. RoHS compliance covers lead-free solder and restricted substance limits for California and EU export markets. The 3-year manufacturer warranty covers parts, labor, and battery replacement within the coverage period; CyberPower's $300,000 Connected Equipment Guarantee covers properly connected devices damaged by surges passing through the UPS—subject to claim validation and exclusions detailed in the warranty card.
The CP1200AVR fits security integrators running single-site or small-branch installations where a 12-minute ride-through window and simulated-sine output meet the application's needs, AVR prevents battery churn in marginal-voltage environments, and ten outlets cover the NVR, switch, panel, and desktop peripherals without requiring a second unit. When you need pure sine for motor loads, longer runtime for distant generator response, or rack-mount form factor for a 19-inch cabinet, step up to CyberPower's PFC Sinewave or SmartApp series—but for straightforward surveillance racks on stable commercial power, the CP1200AVR delivers the protection, runtime, and outlet count the job requires at a price point that doesn't need three purchase-order approvals.
