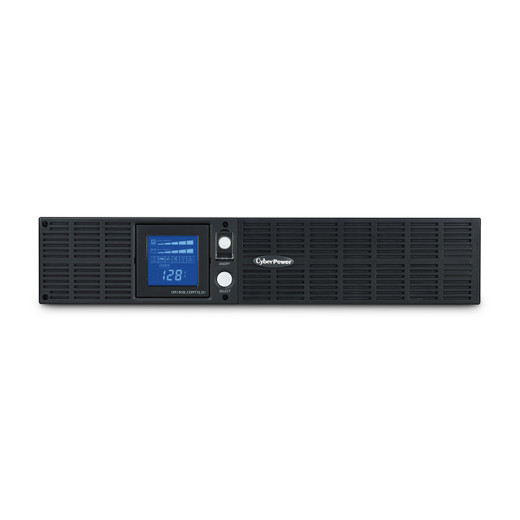

CyberPower OR1500LCDRTXL2U Rack/Tower UPS System
Overview
The CyberPower OR1500LCDRTXL2U is a 1500VA line-interactive uninterruptible power supply designed for small-to-medium surveillance installations, network closets, and telecom equipment racks where sustained backup power matters. At 1125 watts of continuous output, this 2U rack-mountable unit delivers 7 minutes of full-load runtime or 18 minutes at half load — enough cushion to gracefully shut down edge recording servers, NVRs, or PoE switches during a prolonged outage, or to ride through brief utility sags without interruption. The sealed lead-acid battery is user-replaceable, keeping long-term cost of ownership lower than non-serviceable alternatives.
Key Features
- Line-Interactive Topology: Corrects voltage sags and surges in real time without draining battery — your surveillance gear stays online through most utility fluctuations, which is common in older commercial buildings or sites with marginal power quality. Only switches to battery when input falls outside acceptable range.
- 1500VA / 1125W Capacity: Sufficient to back up a small NVR (60–100W), two to four PoE switches (30–60W each), and network infrastructure simultaneously. Exact runtime depends on total connected load — a 500W draw extends runtime to 18 minutes, while a 1125W load shrinks it to 7 minutes.
- Eight NEMA 5-15R Outlets (all battery-backed and surge protected): No split outlets here — every outlet provides both battery backup and 1840 joules of surge suppression. Eliminates the common mistake of plugging a mission-critical device into a surge-only outlet.
- Simulated Sine Wave Output: Safe for most network and surveillance equipment; some sensitive motor-driven devices (certain thermal cameras with pan-tilt heads, UPS units themselves) may have compatibility issues. Verify with your equipment vendor if running specialized telecom hardware.
- SNMP and USB Connectivity: Integrates with network monitoring and syslog systems — you can receive battery low, load high, and power-failure alerts before the unit switches to battery. Serial and EPO (Emergency Power Off) ports support integration with legacy access-control and building management systems.
- 2U Rack / Tower Mounting: Fits standard 19-inch racks and stands independently as a tower, so placement is flexible — stack it on a shelf beside an NVR or slide it into an existing rack without rewiring the entire enclosure.
- Automatic Voltage Regulation (AVR): Corrects brownout conditions without battery drain, extending battery life during extended utility sag periods common in summer peak-load scenarios or sites with aging transformers.
- Rotatable LCD Panel: Display rotates 90 degrees — useful in vertical rack mounts where readability from the side matters. Shows load percentage, battery status, and fault conditions at a glance.
- GreenPower UPS Bypass: In normal operation, non-critical loads can be bypassed around the UPS for efficiency. Reduces heat generation and extends the life of internal components during long periods of utility stability.
- 3-Year Limited Warranty: Covers defects in parts and labor; battery is typically covered for 2 years. Verify battery replacement costs with the vendor before purchase if you anticipate replacements beyond the initial warranty period.
Integration & Compatibility
The OR1500LCDRTXL2U integrates via SNMP (network-based monitoring) and USB (local syslog or serial integration into access-control panels). Most PoE switches and modest-power NVRs operate comfortably within the 1125W budget. If you're planning a large multi-camera surveillance build with 16+ channels and 500W+ of infrastructure, confirm total wattage with your NVR manufacturer — undersizing a UPS is a common cause of unexpected shutdowns. The unit requires a standard NEMA 5-15P wall outlet (included 10-foot cord); no special electrical work is needed.
Power and Runtime Specifications
Input voltage is 120 VAC ± 5%, matching standard North American mains. Output is regulated to 120 VAC ± 5% — tight tolerance for sensitive electronics. The four 12V 7Ah sealed lead-acid batteries deliver the rated runtime under load. Operating temperature range of 32–104°F (0–40°C) suits most indoor server rooms and climate-controlled enclosures; avoid unheated garages or outdoor cabinets without supplemental cooling. The unit complies with UL1778 (UPS safety), cUL 107.3 (electrical compatibility), and FCC Class B (low-radiated emissions).
Environmental and Durability
Sealed lead-acid batteries are maintenance-free and non-spillable, making them suitable for racks shared with networking gear or stored in office spaces. At 59.5 pounds, the OR1500LCDRTXL2U is heavy enough to require two hands or a dolly for safe movement — plan rack installation with proper lifting equipment. The unit's thermal output is moderate under normal conditions, but continuous high-load operation (near 1125W) generates heat; ensure adequate ventilation in closed racks.
When to Choose a Different Model
If your surveillance build requires sustained backup power beyond 18 minutes, or if you're backing up a full 32-channel NVR at 400+ watts continuous draw, consider a higher-capacity model in the CyberPower lineup — the 2000VA and 3000VA variants offer proportionally longer runtimes. For single-camera outdoor edge-recording scenarios or remote locations, a smaller single-phase UPS may be more cost-effective.
What's in the Box
The OR1500LCDRTXL2U ships with: 1× UPS unit (2U rack-mountable), 1× 10-foot NEMA 5-15P power cord, 1× mounting hardware kit (rails and brackets for 19-inch racks), 1× USB cable, 1× RJ-45 network cable, and printed documentation with rack mounting instructions.
Frequently Asked Questions
Q: What runtime should I expect if my NVR and PoE switch draw 400 watts total?
A: At 400 watts (less than half the 1125W capacity), the OR1500LCDRTXL2U delivers approximately 18 minutes of battery-backed operation. This is enough for a graceful NVR shutdown or to ride through a typical power event. For longer backup windows, measure your actual draw with a power meter and size up if needed.
Q: Is the OR1500LCDRTXL2U compatible with my building's syslog monitoring system?
A: Yes. The unit includes SNMP and serial (RS-232) ports. Most SNMP-capable monitoring platforms (Zabbix, Nagios, PRTG) can query the UPS for load, battery status, and fault events. Your IT team can verify SNMP MIB support before deployment.
Q: Can I replace the battery myself?
A: Yes. The sealed lead-acid batteries (4× 12V 7Ah) are user-replaceable. Replacement batteries are available from CyberPower and third-party vendors. The 3-year warranty covers the original batteries; replacements after warranty typically cost $80–150 depending on the vendor.
Q: Does the OR1500LCDRTXL2U work with motor-driven pan/tilt/zoom camera heads?
A: Simulated sine wave output is generally safe for PTZ units powered via 12VDC injectors, but some high-current PTZ motors may be sensitive to waveform quality. Test with your specific hardware before committing to full-scale deployment, or contact the camera manufacturer for simulated sine wave compatibility confirmation.
Q: What's the warranty on the OR1500LCDRTXL2U?
A: 3-year limited manufacturer warranty covers defects in parts and labor. Batteries are typically covered for 2 years. Review the full warranty terms with your vendor for repair/replacement procedures and any exclusions.
Q: Do I need a separate monitoring card or license to access SNMP alerts?
A: No. SNMP and USB are built-in to the OR1500LCDRTXL2U — no add-on cards or software licenses required. Network monitoring integration is free via standard protocols.
The OR1500LCDRTXL2U is a workhorse for edge surveillance deployments where you need transparent power conditioning without enterprise-grade costs. Line-interactive topology means your cameras and recorders don't skip a beat during voltage sags — the unit corrects brownouts automatically without touching the battery, which extends the life of those sealed lead-acid cells significantly. I've deployed this model in distribution centers and smaller retail chains where utility power is spotty but the surveillance budget doesn't justify a true online (double-conversion) UPS.
Technical Highlights:
- Line-Interactive Design: AVR corrects sags from 90V to 140V input without battery drain — you ride through most utility noise silently. In facilities with heavy machinery or aging transformers, this alone prevents hundreds of unnecessary shutdown cycles per year.
- 1125W Sustained Output: Handles a typical edge NVR (60–100W), dual PoE switches (60–80W combined), and network gear with margin. At half load (500W), you get 18 minutes on battery — enough to log gracefully or wait out a brief utility event.
- Eight All-Protected Outlets: Every socket is both surge-protected (1840J) and battery-backed. No segregation gotchas. Plug anything into any outlet and it's covered; common mistake on split-outlet units is losing your recorder when someone plugs a charger into the wrong outlet.
- SNMP Built-In: Network monitoring without add-on cards — your syslog or PRTG instance can watch load, battery state, and power-loss events in real time. Serial and EPO ports handle integration with older access-control panels.
Deployment Considerations:
- Simulated sine wave output is safe for most surveillance and network equipment, but verify with your camera/PTZ vendor if you're running high-current motor-driven heads — some suppliers are conservative about recommending non-pure-sine waveforms.
- At 7 minutes runtime at full 1125W load, this unit is not a long-term sustain solution. If you regularly back up 800+ watts of infrastructure, you'll exhaust the battery in under 10 minutes. Measure your actual draw before deployment — undersizing here causes silent failures.
- Sealed lead-acid batteries degrade over time; plan for battery replacement every 3–5 years depending on ambient temperature and cycle count. Warmer rooms (above 85°F) shorten battery life significantly.
- The 10-foot power cord may not reach existing outlets if your rack is deep in a cabinet — carry spare outlet strips or run conduit to position the UPS nearby.
For a mid-tier distribution center or retail chain with 4–8 camera channels, modest NVR, and basic network switching, the OR1500LCDRTXL2U delivers reliable conditioned backup at a fraction of what enterprise-grade UPS units cost. It's not an off-grid solution, but it's exactly right for absorbing utility transients and giving your infrastructure time to shut down cleanly when the power fails.
