Panduit D81BCPW 800mm Bottom Cover Plate White

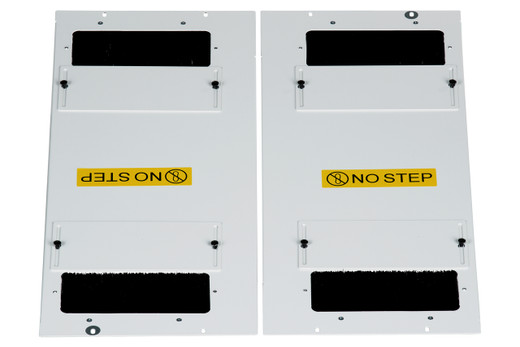

Panduit D81BCPW Net-Verse™ Bottom Cover Plate

The Panduit D81BCPW is a precision-engineered bottom cover plate designed for Net-Verse™ cabinet systems with 800mm width and 1000mm depth configurations. This white-finished enclosure component seals the underside of your rack infrastructure, controlling airflow paths, preventing debris ingress, and completing the physical security envelope required in modern data center and network operations environments. Built to Panduit's commercial datacenter standards and RoHS-compliant, it integrates seamlessly with Net-Verse modular cabinet systems.

Key Features

• Net-Verse™ system compatibility — factory-matched to 800mm × 1000mm depth cabinet footprints
• Thermal management role — blocks uncontrolled underfloor airflow, directs conditioned air through intended hot-aisle/cold-aisle paths
• Physical security closure — prevents unauthorized access from below, cable tampering, and accidental contact with live terminations
• Low-profile 19mm (0.75") height — minimal raised-floor clearance impact
• White powder-coat finish — matches standard cabinet exteriors, maintains clean data center aesthetics
• RoHS compliant — meets European hazardous substance restrictions for global deployments

Data center thermal management depends on controlled airflow separation between cold supply plenums and hot exhaust paths. The D81BCPW bottom cover plate closes the underside of Net-Verse cabinets, eliminating the bypass airflow that undermines cooling efficiency when conditioned air from the raised-floor plenum escapes around rack perimeters instead of flowing through IT equipment intakes. This is particularly critical in high-density deployments where every CFM of chilled air represents measurable operating cost — uncontrolled bypass can reduce cooling effectiveness by 15-30% in poorly sealed installations. The plate's 800mm width corresponds to standard 19\" rack widths plus side channel clearances, while the 1000mm depth dimension ensures full coverage for deep networking cabinets housing blade servers, modular UPS systems, or high-port-count fiber patch panels that extend beyond traditional 600mm rack depths. The 19mm overall height maintains minimal profile above finished floor elevations, preserving underfloor plenum volume while the formed steel construction provides rigidity that won't sag or deform under the weight of loaded cabinets approaching 1,000kg static load ratings.

Commercial integrators spec bottom cover plates for three primary scenarios: new cabinet installations where thermal containment is part of the SOW, retrofit projects upgrading legacy open-frame racks to comply with updated cooling efficiency mandates, and compliance-driven deployments where physical security standards (SSAE 18, ISO 27001, NIST 800-53 PE controls) require six-sided enclosure of IT assets including underfloor cable pathways. In financial, healthcare, and government network operations centers, the D81BCPW satisfies audit requirements for preventing unauthorized physical access to network cabling that enters cabinets from below — a common entry vector in raised-floor environments where hundreds of fiber and copper runs converge at cabinet bases. Installation is straightforward: the plate mounts to the cabinet base frame using Panduit's standard hole patterns, and field modifications (cutting cable entry slots or knockout penetrations) can be performed on-site with standard sheet metal tools when integrators need to route large trunk bundles or ground straps through the cover without removing it entirely. The white powder-coat finish is scratch-resistant and matches Panduit's Net-Verse cabinet line, maintaining the visual consistency expected in customer-facing colocation suites or corporate showcase data halls.

Panduit's Net-Verse cabinet ecosystem is engineered as an integrated thermal and cable management platform, and the D81BCPW bottom cover plate delivers the underfloor closure that completes the airflow containment strategy required for efficient operation in hot-aisle/cold-aisle or chimney containment architectures. RoHS compliance ensures this component meets environmental and procurement standards for enterprises operating under EU directives or adopting equivalent green IT policies domestically, and the formed-steel construction provides the structural durability to survive forklift traffic and technician foot traffic in active data center environments where access floor tiles are frequently lifted for infrastructure changes.
