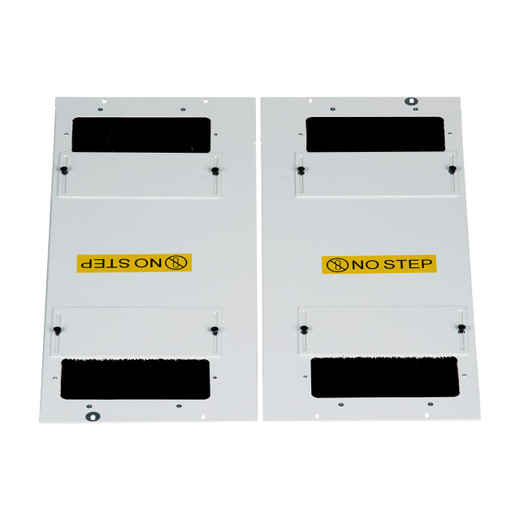

Panduit D62BCPW Net-Verse™ Bottom Cover Plate
The Panduit D62BCPW is a 600mm-wide bottom cover plate engineered for Net-Verse™ cabinet systems with 1200mm depth. This white powder-coated steel panel seals the cabinet base to control airflow in hot/cold aisle containment deployments, prevent debris ingress in raised-floor environments, and provide a clean finished appearance in customer-facing IT spaces. At 19mm profile height, the plate installs flush with standard cabinet bases without interfering with bottom-mounted PDUs or cable routing. Datacenter architects spec this component for environments requiring strict thermal separation, while enterprise integrators deploy it in telecom closets and network operation centers where dust control and professional aesthetics matter.
Key Features
- 600mm × 1200mm footprint matches standard 42U/48U Net-Verse™ cabinet bases
- 19mm (0.75") low-profile design clears bottom-mounted power distribution and cabling
- White powder-coated finish coordinates with Panduit's Arctic White cabinet line
- Solid steel construction blocks airflow bypass in containment architectures
- Tool-free snap-in mounting integrates with Net-Verse™ frame channel system
- RoHS compliant for sustainable procurement programs
Bottom cover plates are critical but often-overlooked components in modern datacenter thermal management. Open cabinet bases create short-circuit airflow paths that undermine hot/cold aisle containment strategies — cool supply air intended for server intakes leaks under cabinets and mixes with hot exhaust, reducing cooling efficiency by 15-25% in measured deployments. The D62BCPW solves this by creating a physical barrier at the cabinet base, forcing all airflow through equipment and maintaining temperature separation. The plate's 600mm width is sized for Panduit's standard cabinet frame, which accommodates 19" rack-mount equipment with side channels for vertical cable management. The 1200mm depth dimension matches deep cabinets specified for blade servers, high-density switches, and UPS systems with front-to-back airflow patterns. Installation uses Panduit's toolless mounting system — the plate's formed edges snap into the base frame's retention channels with hand pressure, no screws or clips required, and can be removed for future underfloor cable access without tools.
The white powder-coat finish serves two purposes: it matches Panduit's Arctic White cabinet aesthetic for unified equipment rooms, and the light color improves visibility during under-cabinet inspections in low-light conditions. Steel construction provides rigidity to support incidental foot traffic during maintenance — a common real-world scenario when technicians step on cabinet bases while working overhead. The 19mm height keeps the plate below the cabinet's bottom U-space, preserving full 42U or 48U usable rack height. For raised-floor installations, the plate sits above the floor cutout and blocks debris, cable ties, and small tools from falling into the plenum — a major source of FOD (foreign object damage) to underfloor cabling. In ground-level deployments, the plate provides a finished base that prevents dirt accumulation inside the cabinet frame, which is especially important in environments without isolated equipment rooms.
This component is essential for any Net-Verse™ deployment pursuing ASHRAE thermal guidelines or Uptime Institute tier certifications, both of which require controlled airflow paths with minimal bypass. Order quantities based on cabinet count — one plate per cabinet base.
