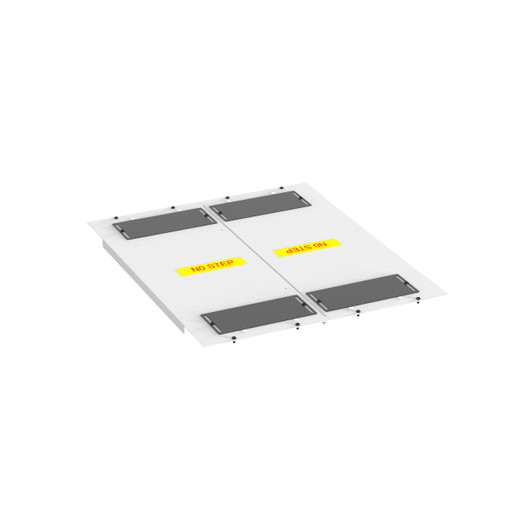

Panduit D61BCPW Net-Verse Bottom Cover Panel
The Panduit D61BCPW bottom cover panel is an essential component for datacenter and server room installations where airflow management directly impacts cooling efficiency and PUE metrics. Designed for Panduit's Net-Verse cabinet line in the 600mm width x 1000mm depth configuration, this white powder-coated steel panel seals vulnerable openings at the cabinet base to prevent bypass airflow—the phenomenon where conditioned air escapes through the bottom of the rack instead of flowing through IT equipment. In hot-aisle or cold-aisle containment deployments, an unsealed cabinet base can reduce containment effectiveness by 15-20%, forcing CRAC units to overcool to compensate. This panel eliminates that waste.
Key Features
- Precision-fit design for Panduit Net-Verse 600mm W x 1000mm D cabinets
- White powder-coated steel finish matches standard Net-Verse aesthetics
- Seals cabinet base to prevent bypass airflow in containment systems
- Low-profile 19mm (0.75") height maintains floor clearance for cabling
- RoHS compliant construction for green building and LEED compliance
Bypass airflow is one of the most common thermal management failures in raised-floor datacenters. When cold supply air leaks through gaps in cabinet bases, it mixes with hot exhaust air before reaching server intakes, raising inlet temperatures and triggering unnecessary cooling escalation. The D61BCPW addresses this by providing a solid barrier at the cabinet base, ensuring conditioned air follows the intended front-to-back path through your IT equipment. For facilities tracking power usage effectiveness or pursuing LEED certification, eliminating bypass airflow is one of the fastest-ROI thermal interventions available—often recovering its cost in energy savings within the first year of a high-density deployment.
The panel's 19mm profile provides full base coverage while maintaining clearance for under-floor cable entry points, grounding studs, and mounting hardware. The white powder-coated finish integrates seamlessly with Panduit's Net-Verse cabinet ecosystem, maintaining a clean, professional appearance in customer-facing or executive datacenter tours. Installation requires no specialized tools—the panel mounts to the cabinet frame's existing mounting points using standard hardware included with the Net-Verse cabinet kit.
This bottom cover panel ships as a single unit and integrates with the full Net-Verse accessory line, including blanking panels, vertical cable managers, and roof-mounted exhaust plenums. While it's spec'd into new cabinet builds, it's equally valuable as a retrofit for existing Net-Verse installations where infrared thermal audits have identified hot spots caused by airflow bypass. Datacenter operators migrating from open-frame racks to enclosed containment strategies will find base sealing critical to achieving the 10-15°F temperature separation that makes hot-aisle containment economically justifiable. The D61BCPW closes one of the three major bypass paths (base, top, and vertical gaps) that undermine containment ROI in legacy rack deployments.
