Panduit D82BCPW Net-Verse Bottom Cover Panel, 800mm x 1200mm
Overview

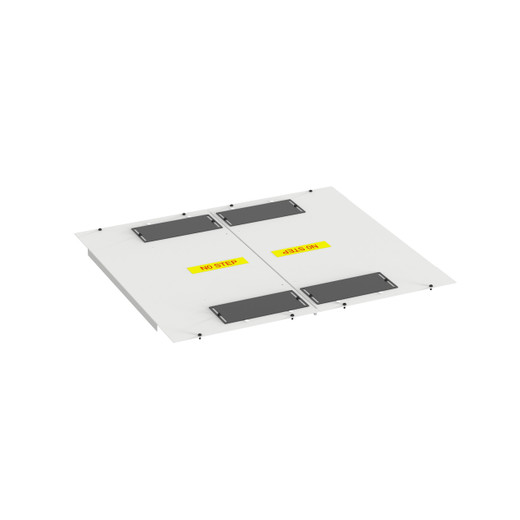

The Panduit D82BCPW is a bottom cover panel engineered specifically for Net-Verse™ cabinets with an 800mm width and 1200mm depth footprint. If you're closing out the underside of a Net-Verse enclosure to control airflow, block dust ingress, or simply finish the installation cleanly, this is the correctly-sized component — not a universal fit-as-you-can solution, but a purpose-matched panel for that exact cabinet configuration. It ships as a single unit and installs as a discrete, low-profile plate (19mm tall, 35.55 inches wide) flush to the cabinet base.
The D82BCPW is finished in white, matching the Net-Verse cabinet aesthetic for data center and network closet deployments where visual consistency matters. It meets RoHS compliance requirements, which matters for installations in jurisdictions with hazardous-substance restrictions on electrical and electronic equipment — a checkbox that facilities and procurement teams in EU-regulated or LEED-certified environments will need to confirm.
Key Features
- Exact-fit for 800mm W x 1200mm D Net-Verse cabinets: At 35.55 inches wide and 15.35 inches long, the D82BCPW covers the full bottom opening of the target cabinet without modification or trimming. A mis-sized cover leaves gaps that undermine hot/cold aisle containment — this panel eliminates that gap entirely for the correct cabinet footprint.
- Low-profile 19mm (0.75 in) height: The panel adds virtually no vertical footprint under the cabinet. In raised-floor environments or tight equipment rooms where clearance beneath cabinets is constrained, the sub-inch profile keeps cable management and floor tile interactions predictable.
- RoHS Compliant: Meets the Restriction of Hazardous Substances Directive, confirming the panel is free from restricted levels of lead, mercury, cadmium, and other regulated substances. Required for procurement in EU member states and preferred in green-building or government installations with environmental sourcing requirements.
- White finish: Matches Net-Verse cabinet coloring for a consistent, finished appearance in open data halls or customer-facing equipment rooms where aesthetics are part of the deployment standard.
- Single-unit packaging: Sold and shipped as one panel per order. Size your order to the number of cabinets requiring bottom closure — no partial-pack minimum complicates procurement for multi-cabinet deployments.
- Part of the Net-Verse™ accessory ecosystem: Sourced from the same Panduit cabinet and enclosure line as the cabinets themselves, so dimensional tolerances, finish, and mounting interfaces are designed to work together rather than adapted from a third-party component.
Integration & Compatibility
The D82BCPW is designed exclusively for Net-Verse cabinets measuring 800mm in width and 1200mm in depth. It will not correctly fit Net-Verse configurations with different depth dimensions (600mm or 1000mm depth variants) or different width profiles. Before ordering, confirm both the width and depth of the target cabinet — depth is the dimension most commonly overlooked when specifying cover panels for cabinets and enclosures.
For installations incorporating structured cabling, power distribution, or thermal management components within the Net-Verse frame, consider whether bottom cable entry cutouts are needed before installing a solid cover panel. If conduit or cable bundles enter the cabinet from below, a blanked panel like this one may need to be paired with appropriate cable management accessories or a vented/grommet-equipped alternative depending on your cable entry requirements.
In hot/cold aisle containment configurations, bottom panels contribute to airflow segregation by preventing unconditioned air from entering through the cabinet base. Properly fitted base panels in combination with top and side blanking are part of a complete data center infrastructure thermal management strategy.
What's in the Box
- 1x Panduit D82BCPW Net-Verse Bottom Cover Panel (800mm W x 1200mm D, White)
Frequently Asked Questions
Q: Which Net-Verse cabinet configurations is the D82BCPW compatible with?
A: The D82BCPW is designed specifically for Net-Verse cabinets that are 800mm wide and 1200mm deep. It will not fit cabinets with different depth dimensions such as 600mm or 1000mm depth variants. Confirm both width and depth of your cabinet before ordering.
Q: What are the exact dimensions of the D82BCPW panel?
A: The panel measures 35.55 inches (800mm) wide, 15.35 inches long, and 0.75 inches (19mm) in height. These dimensions correspond to the full bottom opening of the target 800mm x 1200mm Net-Verse cabinet.
Q: Is the D82BCPW RoHS compliant?
A: Yes. The D82BCPW meets RoHS (Restriction of Hazardous Substances) compliance requirements, making it suitable for installations in EU-regulated environments and projects with hazardous-substance sourcing restrictions.
Q: How many panels come in a single order?
A: The D82BCPW is packaged and sold as a single panel per unit. Order one panel per cabinet that requires bottom closure.
Q: What color is the D82BCPW?
A: The panel is white, matching the standard Net-Verse cabinet finish for a clean, consistent appearance in data center and network closet installations.
Q: Can I use the D82BCPW if cables enter the cabinet from below?
A: The D82BCPW is a solid blanking panel with no pre-cut cable entry points. If bottom cable entry is required, you will need to evaluate whether a vented or grommet-equipped base panel alternative is more appropriate for your installation.
The D82BCPW is a precision-fit component — and that precision is exactly the point. At 35.55 inches wide and 15.35 inches long, this panel is dimensioned to the full base opening of an 800mm x 1200mm Net-Verse cabinet, not to a rounded approximation. That matters because even a 10mm gap at the cabinet base in a hot/cold aisle setup can bleed enough unconditioned air into the cold aisle to measurably degrade containment efficiency. This is one of those components where specifying anything other than the manufacturer-matched part creates problems that are hard to trace back to the root cause.
Technical Highlights:
- 800mm W x 1200mm D exact fit: The 35.55 in x 15.35 in footprint covers the base opening without gaps or overhang — critical for airflow containment in any hot/cold aisle configuration using Net-Verse enclosures.
- 19mm (0.75 in) height profile: Sub-inch panel height means no interference with raised-floor tile cutouts or under-cabinet cable trays — a practical constraint in dense data hall layouts where every millimeter of under-cabinet clearance is spoken for.
- RoHS compliance: Confirmed hazardous-substance compliance for EU procurement, LEED project documentation, and government installation requirements — a sourcing checkbox that facilities teams need covered on the bill of materials.
Deployment Considerations:
- Confirm the depth dimension of your Net-Verse cabinet before ordering. The 1200mm depth is the less-visible spec on cabinet labels — teams ordering for a mixed fleet of 1000mm and 1200mm cabinets have been burned by assuming a single SKU covers both. It does not.
- The D82BCPW is a solid, unperforated panel. If your installation routes power or structured cabling into the cabinet from a raised floor below, a blanked panel will require field modification or substitution with a grommet-equipped variant. Plan cable entry strategy before the panel goes in.
This panel is the right specification for a Net-Verse 800mm x 1200mm deployment where airflow containment discipline, clean aesthetics in a customer-visible equipment room, and RoHS-clean procurement documentation are all requirements — the kind of build where leaving the cabinet base open is not an acceptable shortcut.
