ATEN CL5708N 8-Port 19" LCD KVM Console Switch

Overview

The ATEN CL5708N is a 1U rack-mountable LCD KVM console switch designed for direct, out-of-band access to servers. This single-rail, slideaway unit integrates a 19-inch LED-backlit LCD monitor, a full keyboard, and a touchpad into a compact form factor, ideal for data centers and server rooms where space is at a premium. It allows you to manage up to 8 computers from a single console, streamlining operations and reducing hardware clutter. The CL5708N supports a maximum resolution of 1280x1024, ensuring clear visibility of server interfaces.

Compatibility

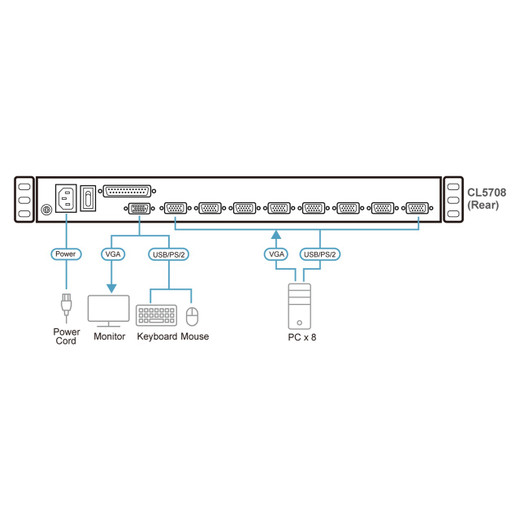

This KVM console switch supports PS/2 and USB keyboard/mouse connections, and VGA video input. It is designed to connect to servers and other KVM switches via these standard interfaces. The CL5708N is daisy-chainable, allowing you to expand management capabilities by connecting up to 31 additional compatible ATEN KVM switches. This enables control of up to 256 computers from a single console, making it suitable for environments with a significant number of servers.

Installation Notes

The CL5708N is designed for standard 19-inch rack mounting and occupies 1U of vertical space. Its single-rail design allows it to slide away when not in use, preserving rack space. Ensure adequate ventilation around the unit in the rack environment. The integrated display and input devices eliminate the need for separate monitors, keyboards, and mice at the rack, simplifying initial setup and ongoing use.
