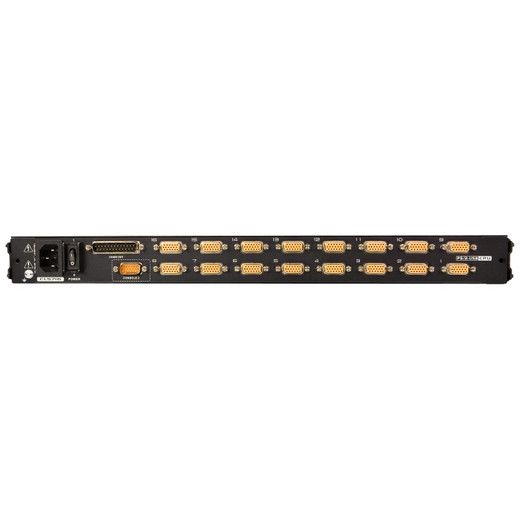

ATEN CL5716N 16-PORT 19IN LCD KVM CONSOLE

Overview

The ATEN CL5716N is a 1U rack-mountable LCD KVM switch designed for efficient server management in data centers and server rooms. It consolidates keyboard, video, and mouse (KVM) control for up to 16 computers into a single, integrated sliding housing. This unit features a 19-inch TFT Active Matrix LCD monitor, a full keyboard, and a touchpad, providing a complete console solution that slides out for use and tucks away when not needed, optimizing rack space. Its 1280 x 1024 @ 75 Hz resolution ensures clear visuals for monitoring and operation.

Compatibility

This ATEN CL5716N KVM switch supports PS/2, USB, and VGA connectivity, allowing it to interface with a wide range of servers and network devices. It is designed for rack-mounting environments and is compatible with standard 19-inch server racks. The switch also offers daisy-chain support, enabling you to expand control to additional KVM switches and connected devices, thereby increasing the total number of managed computers beyond the 16 ports directly available.

Installation Notes

The CL5716N mounts using a single rail system, ensuring a secure and stable installation within a 1U rack space. Its operating temperature range is 32°F to 122°F (0°C to 50°C), making it suitable for standard climate-controlled IT environments. The integrated design minimizes the need for separate monitors, keyboards, and mice, simplifying initial setup and ongoing management.
