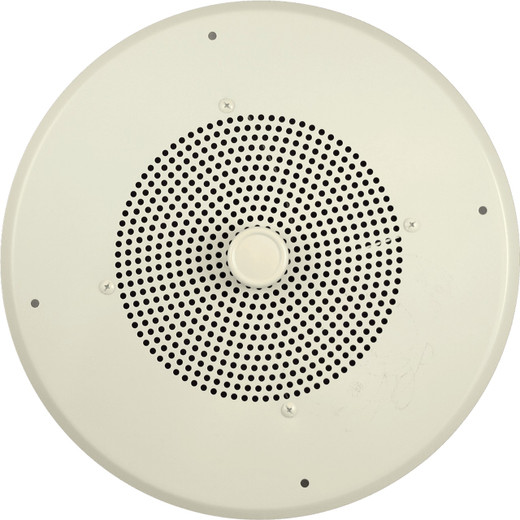

Viking Electronics 35AE Ceiling Speaker with Volume Control
The Viking Electronics 35AE is a commercial-grade 8-ohm ceiling speaker designed specifically for overhead paging coverage in facilities already running Viking Electronics paging systems. At 6 watts nominal with a built-in volume control, it gives you per-zone level adjustment without adding a separate attenuator — the kind of practical detail that matters when you're wiring a multi-room install and need independent volume zones at the speaker rather than at the head end. The 35AE ships ready to drop into a standard ceiling grid or drywall cut-out with an 8.25" to 10.0" mounting hole range.
Key Features
- Built-in Volume Control: The 35AE includes an integrated volume control, so you can set per-speaker levels without a remote attenuator panel. In hallways, break rooms, or conference spaces where ambient noise varies, this lets you tune each zone independently during commissioning — no return trips to the head-end panel.
- 85 Hz to 15,000 Hz Frequency Response: A 85–15,000 Hz range covers spoken-word intelligibility well through the upper midrange and presence frequencies. Paging announcements and alarm tones land clearly without the muffled quality of speakers with a narrower top end.
- 8-Ohm, 6-Watt Nominal Rating: At 6W into 8 ohms, this speaker is sized for distributed background paging — not a high-power public address application. Verify your amplifier's impedance configuration and total load before paralleling multiple 35AE units on a single zone output.
- 12.75" x 3.75" Footprint (324mm x 95mm): The 12.75-inch overall diameter with a 3.75-inch depth keeps the speaker low-profile in finished ceilings. Confirm tile or drywall thickness against the 3.75" depth before roughing in, especially in shallow ceiling cavities.
- 8.25" to 10.0" Mounting Hole Range: The wide mounting hole tolerance (8.25" to 10.0" diameter) accommodates both standard ceiling tile cut-outs and field-drilled drywall openings without requiring a custom backcan in most installations.
- 6" 16 AWG Pigtail Connection: Pre-terminated with a 6-inch 16 AWG pigtail, the 35AE connects directly to your speaker wire run without requiring terminal blocks or punch-down connectors at the speaker. Standard wire nuts or push-in connectors work with 16 AWG.
- 5% to 95% Non-Condensing Humidity Tolerance: Rated for environments up to 95% relative humidity (non-condensing), the 35AE handles typical interior commercial conditions — lobbies, break rooms, warehouses with climate control — without humidity-related degradation. Not rated for outdoor or direct moisture exposure.
Integration & Compatibility
The 35AE is designed to extend overhead paging systems built on Viking's PA product line. Verified compatible amplifiers from the evidence include the PA-2A, PA-15, PA-30, PA-60, and M2W units. If you're planning a multi-speaker zone layout, review the output impedance and wattage ratings of your Viking amplifier — parallel wiring multiple 8-ohm speakers lowers the total load seen by the amp, and the 35AE's 6W nominal rating is the starting point for your zone power budget.
For facilities running a paging and intercom infrastructure, the 35AE is positioned as an economical coverage expansion unit — add speakers to under-covered zones without replacing the head-end equipment. The integrated volume control means individual rooms can be attenuated at the ceiling rather than requiring zone-level controls at the amplifier or a separate distribution panel.
If you need speaker mounting hardware or ceiling back-boxes, confirm compatibility with the 12.75" diameter and 3.75" depth before ordering — speaker mounting accessories should match both dimensions to ensure flush fit in finished ceilings.
Frequently Asked Questions
Q: What Viking paging amplifiers is the 35AE compatible with?
A: Based on manufacturer documentation, the 35AE is designed to work with Viking paging units including the PA-2A, PA-15, PA-30, PA-60, and M2W. Verify the impedance and wattage specifications of your specific amplifier model before wiring multiple speakers in parallel.
Q: Does the 35AE include a volume control?
A: Yes. The 35AE includes an integrated volume control at the speaker, allowing per-location level adjustment without a separate remote attenuator. This distinguishes it from Viking's basic ceiling speaker models in the same family.
Q: What size ceiling cut-out does the 35AE require?
A: The 35AE accommodates mounting hole diameters from 8.25" to 10.0". The overall speaker diameter is 12.75" and the depth is 3.75". Verify ceiling cavity depth before installation.
Q: What is the impedance of the 35AE?
A: The 35AE is rated at 8 ohms nominal impedance at 6 watts. When paralleling multiple units on one amplifier zone, calculate the combined impedance to ensure it stays within your amplifier's rated load range.
Q: Is the 35AE rated for outdoor installation?
A: No. The 35AE is rated for humidity from 5% to 95% non-condensing — suitable for standard interior commercial environments. It is not rated for outdoor or direct moisture exposure.
Q: What wire gauge does the 35AE use?
A: The 35AE ships with a 6-inch 16 AWG pigtail for direct connection to your speaker wire run. Standard wire nuts or push-in connectors are compatible with 16 AWG wire.
The Viking Electronics 35AE is one of those speaker additions that solves a real field problem: you've got a Viking PA head-end already commissioned, you need to push paging into an adjoining conference room or corridor, and you don't want to run a separate attenuator or go back to the panel to adjust levels. The built-in volume control on the 35AE handles that at the ceiling — the 6W, 8-ohm rating keeps it in the distributed-paging tier where most Viking PA deployments live.
Technical Highlights:
- Frequency Response (85 Hz–15,000 Hz): Covers the critical 1–4 kHz speech intelligibility band without roll-off — paging announcements and tone alerts remain clear even at moderate distances in reflective ceiling environments.
- Mounting Hole Range (8.25"–10.0"): A 1.75-inch tolerance on the cut-out gives installers real flexibility when retrofitting into existing ceiling tiles or older drywall openings that weren't cut to a consistent diameter.
- 16 AWG Pigtail: Pre-terminated 16 AWG wire reduces connector termination steps at the ceiling — particularly useful in scissor-lift or ladder installs where overhead work time is a cost factor.
Deployment Considerations:
- When paralleling multiple 35AE units (8 ohms each) on a single Viking amplifier zone, calculate combined impedance before wiring — dropping below the amplifier's minimum rated load will cause distortion or damage the output stage.
- The 3.75" depth is the constraint to check first in retrofit jobs: shallow commercial ceiling plenums above drop tile can be as tight as 3–4 inches, and the speaker depth plus wire slack needs to clear any HVAC or conduit in the cavity.
The 35AE is the right unit for Viking PA system expansions into interior commercial zones — conference rooms, break rooms, corridors, and open-plan offices — where the head-end is already in place and you need economical per-location volume control without adding distribution hardware.
