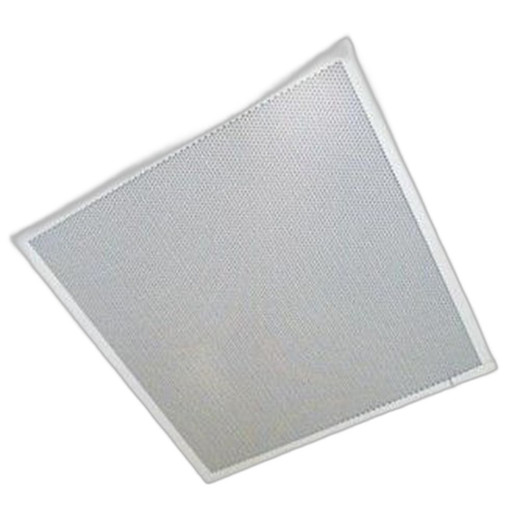

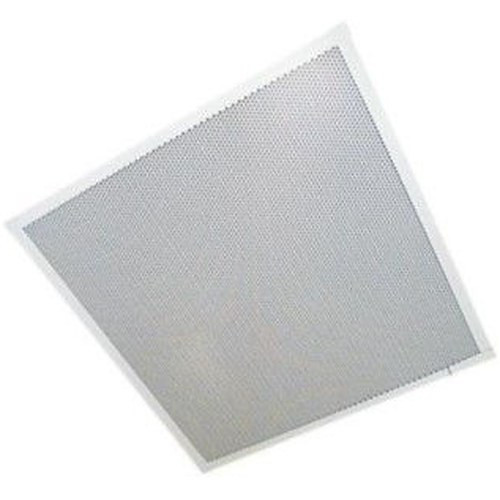

Valcom S-522B-2 2x2 Lay-In Ceiling Speaker with Volume Control
The Valcom S-522B-2 is a 2x2 lay-in ceiling speaker purpose-built for suspended ceiling grid environments in commercial and institutional settings. The design integrates a backbox directly into the speaker enclosure, eliminating the need for separate mounting hardware or supplemental bracing—a meaningful time saving during rough-in and finish phases. This approach reduces installation labor and mitigates acoustic leakage that can occur when speakers are mounted with aftermarket brackets into existing tile openings.
Key Features
- 2x2 Lay-In Grid Mount: Speaker drops directly into standard suspended ceiling grid openings (2 feet × 2 feet). No structural modification, no additional backing board, no template alignment work—installation time measured in minutes per unit rather than hours.
- Integral Backbox Design: The enclosure is built into the speaker body, not bolted on afterward. This eliminates a separate line item in your bill of materials and removes a potential leak point in the ceiling cavity. The speaker sits flush and secure within the grid frame.
- On-Speaker Volume Control: Potentiometer mounted directly on the speaker allows facility personnel to adjust output for each zone without requiring a separate volume control module or panel. Useful when room acoustics vary—a quiet office needs different output than a warehouse floor or cafeteria.
- Tuned Frequency Response for Voice and Music: The speaker is optimized to handle both clear voice announcements (critical for emergency notification and paging) and background music distribution. Frequency response tuning ensures intelligible speech without requiring equalization at the amplifier.
- Straightforward Ceiling Integration: Works within standard Valcom distributed audio systems, integrating with zone controllers and amplifiers via standard audio cable. Cable routing runs above the suspended ceiling; connections terminate at the amplifier or zone module below.
- Compact Footprint Preserves Aesthetics: The 2x2 size matches standard suspended ceiling tile dimensions, maintaining visual continuity in occupied spaces. Replacement or relocation requires only audio cable rerouting, not ceiling reconstruction.
Integration & Deployment Context
The S-522B-2 fits into multi-zone distributed audio architectures where zone-level volume tuning improves flexibility without adding control hardware complexity. Common deployments include office parks with separate paging zones, retail environments combining background music and announcement zones, healthcare facilities managing different acoustic requirements across patient care areas, and educational institutions coordinating announcements across classrooms and common areas. The on-speaker potentiometer allows each zone to be independently tuned to match ambient noise levels—a warehouse loading dock needs more output than an administrative office sharing the same system.
Installation requires access above the suspended ceiling to route audio cable and make connections to the amplifier or zone controller. The speaker is rated for indoor use in dry environments; moisture-exposed installations (outdoor, high-humidity mechanical spaces, or areas subject to condensation) are not supported. Confirm ceiling grid load capacity and spacing before mounting; verify audio cable run routing to avoid conflicts with HVAC ducting, electrical conduit, or other building systems.
The potentiometer tuning workflow is straightforward: after cable termination, adjust the volume control while music or a test tone plays through the system until output matches the target acoustic level for that space. This tuning is typically performed during commissioning and then left undisturbed; the control does not require powered adjustment or remote access.
Frequently Asked Questions
Q: What's the power handling and amplifier impedance matching for the S-522B-2?
A: Evidence does not include power handling specs or impedance rating. Confirm with the Valcom datasheet or your system integrator to match the speaker to the correct amplifier output and impedance configuration.
Q: Can the S-522B-2 be installed in a drywall ceiling or does it require a suspended grid?
A: The S-522B-2 is engineered for suspended ceiling grid mounting. Drywall ceiling installation would require separate backing hardware and is outside the intended deployment context.
Q: Is the on-speaker volume control motorized or manual?
A: The volume control is a manual potentiometer—facility personnel adjust it by hand. It does not support remote or motorized adjustment.
Q: Will the S-522B-2 work with non-Valcom amplifiers or third-party zone controllers?
A: The speaker connects via standard audio cable. Compatibility depends on impedance matching and power output from your amplifier. Consult with your integration partner to confirm compatibility with your specific audio system.
Q: What maintenance does the S-522B-2 require after installation?
A: Standard audio speakers require no routine maintenance beyond occasional inspection for dust accumulation on the grille and confirmation that the volume control potentiometer has not been accidentally shifted. If replacement is needed, the speaker can be removed from the grid and swapped without ceiling reconstruction.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Valcom S-522B-2 solves a real integration problem: suspended ceiling audio deployment without complex rough-in work or aftermarket bracket complications. From a systems engineering perspective, the integral backbox approach reduces bill-of-materials complexity and installation labor, which directly impacts project cost and schedule. The on-speaker volume control potentiometer is particularly valuable in multi-zone systems where each space has different ambient acoustic profiles—you can tune each zone independently without adding control panels or digital modules.
Technical Highlights:
- Integral Backbox: Enclosure built into the speaker eliminates separate mounting hardware and reduces acoustic leakage around grid mounting edges—a common source of bass loss and sound dispersion in poorly braced ceiling installations.
- 2x2 Grid Compatibility: Fits standard suspended ceiling grid spacing found in virtually all commercial buildings. Replacement or relocation requires only audio cable rerouting and potentiometer adjustment, not structural modification or tile replacement.
- Manual Volume Potentiometer: On-speaker control allows zone-level tuning to match ambient noise conditions without requiring powered volume control modules. Adjustment is performed once during commissioning and locked in place.
Deployment Considerations:
- Confirm suspended ceiling grid load capacity and spacing before installation; the speaker weight and mounting method must be compatible with the existing tile frame system.
- Verify audio cable routing above the ceiling to avoid interference with HVAC ducting, electrical conduit, fire suppression piping, or structural elements; plan termination points at the amplifier or zone controller in advance.
- The potentiometer is a passive adjustment device—there is no remote control capability. If you need remote or motorized volume control, you will need to add a separate control panel or digital volume controller to the system.
- The S-522B-2 is rated for indoor dry environments only. Do not deploy in outdoor, high-humidity mechanical spaces, or areas subject to condensation or splash exposure.
Position the S-522B-2 in multi-zone institutional and commercial audio deployments where installation labor and acoustic performance matter more than remote control features. It is the right choice for office buildings, retail chains, healthcare facilities, and educational institutions that need straightforward zone-based audio distribution without requiring sophisticated control infrastructure.
