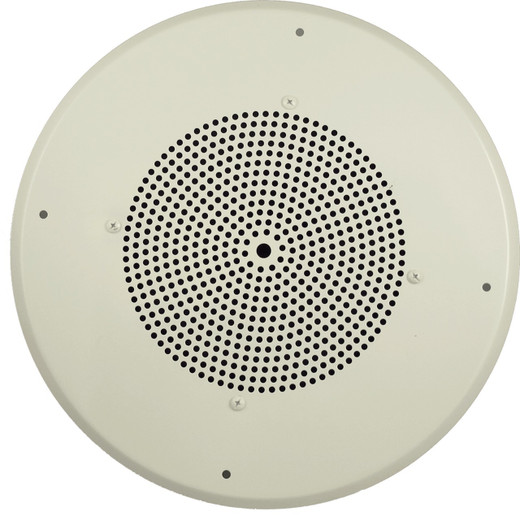

Viking 8 Ohm Ceiling Speaker White - VIK-30AE

Viking Electronics VIK-30AE 8-Inch 70V Ceiling Speaker

Overview

The Viking Electronics VIK-30AE is a commercial-grade 8-inch ceiling speaker engineered for distributed paging systems running on 25V or 70V constant-voltage audio infrastructure. If you're wiring a multi-zone overhead paging system in a warehouse, office corridor, or retail floor, the VIK-30AE gives you a selectable power tap arrangement and a built-in step-down transformer in a single flush-mount package — no external matching transformer required. It's purpose-built to integrate with Viking Electronics paging and intercom products, including the PA-30, PA-60, and PA-250 amplifier series.

The speaker ships in a white metal grille finish suited for standard commercial ceiling tiles. With a mounting hole requirement of 8.25 to 10.0 inches, it fits the vast majority of suspended ceiling grid applications without modification.

Key Features

• Dual-Voltage Compatibility (25V and 70V): The built-in step-down transformer supports both 25V and 70V distributed audio systems. This matters if you're deploying across mixed infrastructure or future-proofing against amplifier changes — you're not locked into one voltage standard.
• Selectable 70V Power Taps (0.62W, 1.25W, 2.5W, 5W, 10W): Five tap positions let you dial in exactly how much audio power each zone receives. In a quiet reception area, drop to 1.25W to avoid over-driving the space; in a loud shipping dock, push to 10W. Getting zone balance right at the speaker level saves you from fighting the amplifier gain later.
• Selectable 25V Power Taps (0.08W, 0.16W, 0.31W, 0.62W, 1.25W): For 25V systems — common in smaller installations or legacy infrastructure — the same tap flexibility applies at proportionally lower power levels, keeping you from overloading the amplifier when running many speakers in parallel.
• 10-Watt Maximum Power Handling: Handles up to 10W continuous, so at full 70V tap you're running the speaker at its rated maximum with no thermal headroom lost. For most office and light-industrial applications, 5W tap gives you plenty of SPL while leaving headroom in the system.
• 45 Hz to 15,000 Hz Frequency Response: That low-end extension to 45 Hz means voice intelligibility and paging clarity won't suffer even in acoustically difficult environments. Wide-bandwidth ceiling speakers reduce listener fatigue on long paging shifts compared to narrower designs that clip the low fundamentals of speech.
• 8-Inch Cone Driver: The larger cone moves more air than the 6-inch alternatives common in budget paging kits — better pattern coverage per speaker means fewer units needed per zone, which adds up on larger floor plans.
• White Metal Grille: Metal grille construction is more durable than ABS plastic alternatives in environments with carts, ladders, or equipment brushing the ceiling. The white finish matches standard commercial ceiling tile without painting or special ordering.
• Humidity Tolerance (5% to 95% Non-Condensing): Covers most commercial and light-industrial environments, including warehouses with seasonal humidity swings. Not rated for washdown or direct moisture exposure, so avoid restrooms with heavy steam or exterior-adjacent spaces without enclosures.

Integration and Compatibility

The VIK-30AE (often searched as VIK 30AE) is specifically designed to pair with Viking Electronics paging amplifiers. Verified compatible models include the PA-30, PA-60, and PA-250 from the overhead paging systems category. Any 25V or 70V constant-voltage amplifier driving a standard distributed commercial audio paging system will work — the transformer is already in the speaker, so your amplifier output connects directly to the speaker wiring run. For larger deployments involving access control or door entry integration, Viking's E-30 door entry phone and similar intercom products can be mixed into the same infrastructure backbone.

When planning wire runs, remember that 70V systems allow longer cable distances before signal loss becomes audible — for runs over 100 feet, 70V tap selection is the practical choice over 25V. Pair with a low-voltage wiring system appropriate for your building's fire rating requirements.

Frequently Asked Questions

Q: Does the VIK-30AE work with both 25V and 70V paging amplifiers?

A: Yes. The VIK-30AE includes a built-in step-down transformer that supports both 25V and 70V constant-voltage systems. Five power tap positions are available for each voltage standard, so you can match output level to your zone requirements without an external transformer.

Q: What amplifiers is the VIK-30AE designed to work with?

A: It is specifically designed for use with Viking Electronics paging amplifiers including the PA-30, PA-60, and PA-250. It will also work with any compatible third-party 25V or 70V constant-voltage paging amplifier.

Q: What is the mounting hole size required to install the VIK-30AE?

A: The VIK-30AE requires a mounting hole between 8.25 and 10.0 inches in diameter. This range accommodates most standard commercial suspended ceiling tile cutouts.

Q: What is the warranty on the VIK-30AE?

A: The VIK-30AE carries a Two Year Limited manufacturer warranty.

Q: Can the VIK-30AE be used in humid environments like warehouses?

A: The VIK-30AE is rated for 5% to 95% relative humidity (non-condensing), which covers most commercial warehouse and office environments. It is not designed for washdown areas or spaces with direct moisture exposure.

Q: What is the frequency response of the VIK-30AE, and does it affect voice paging clarity?

A: The VIK-30AE delivers a frequency response of 45 Hz to 15,000 Hz. That range captures the full fundamental range of human speech and ambient sound reproduction, which directly improves intelligibility for paging announcements compared to speakers with narrower response windows.

Marty Allison

When I specify ceiling speakers for multi-zone paging, the transformer arrangement is the first thing I look at — and the VIK-30AE solves it cleanly with a built-in step-down transformer covering both 25V and 70V, five selectable power taps per voltage standard, and a 10W maximum power handling ceiling that leaves real headroom for most office and industrial installations without needing an external matching box.

Technical Highlights:

• Five 70V Tap Positions (0.62W–10W): Gives you precise zone-by-zone level control at the speaker rather than fighting the amplifier output. In practice, running a busy warehouse at 5W tap and a conference room at 1.25W from the same amplifier loop is straightforward.
• 45 Hz–15,000 Hz Frequency Response: The low-end extension to 45 Hz is meaningful for paging — it keeps the natural depth of announcer voices intact, which reduces listener effort and improves message retention in loud environments.
• 8-Inch Driver with Metal White Grille: The 8-inch cone gives you broader coverage per unit compared to smaller-diameter alternatives, and the metal grille holds up in environments where ABS plastic gets dinged — a real factor in warehouses or production floors.

Deployment Considerations:

• The mounting hole range of 8.25 to 10.0 inches covers standard commercial drop-ceiling cutouts, but verify your ceiling tile before cutting — some older grid systems use non-standard tile dimensions that fall outside this window.
• Humidity tolerance tops out at 95% non-condensing — the VIK-30AE is not appropriate for restrooms with steam exposure, dishwashing areas, or any space that sees condensation on surfaces. Plan an enclosure or specify a sealed unit for those zones.

For a straightforward multi-zone office or warehouse paging deployment running Viking PA-series amplifiers, the VIK-30AE is the purpose-built match — the dual-voltage transformer and selectable taps make zone balancing a one-time setup task rather than an ongoing headache.
