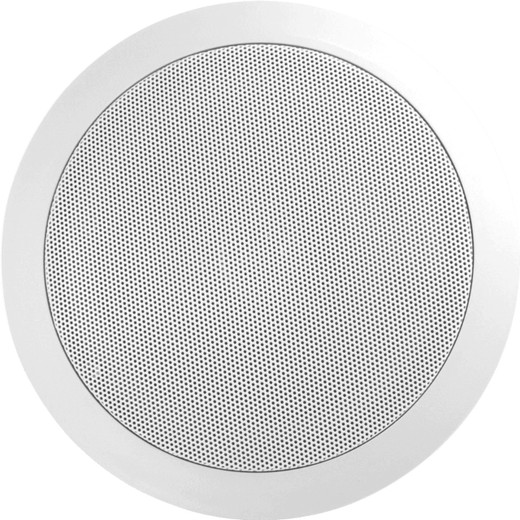

Viking Electronics 40AE Ceiling Speaker for Overhead Paging
Overview
The Viking Electronics 40AE is a 15-watt, 8-ohm flush-mount ceiling speaker built for overhead paging and intercommunication systems in commercial facilities. It drops into any standard 9.5" to 10" ceiling cutout and handles the full voice-intelligibility range from 85 Hz to 15,000 Hz — wide enough for clear speech without the muddiness that plagues narrow-band paging drivers. If you're wiring a paging system in a school, warehouse, office, or retail environment and need a clean, low-profile speaker that installs fast, the 40AE is a straightforward pick from the Viking Electronics communication line.
Key Features
- 15W Nominal Power at 8 Ohms: Enough output for mid-size rooms and open ceilings. At 8 ohms, it integrates directly with standard amplifier outputs without transformer matching — fewer components, simpler wiring, lower failure points.
- 85 Hz to 15,000 Hz Frequency Response: Covers the full voice band with margin on both ends. Speech intelligibility peaks between 500 Hz and 4 kHz; having headroom to 15 kHz means paging announcements and tone alerts come through crisp rather than muffled. Useful in overhead paging systems where intelligibility is the primary metric.
- Flush Mount in 9.5" to 10" Diameter Holes: The integral mounting system locks into a standard ceiling cutout range — compatible with the majority of drop-ceiling and drywall rough-in rings already in the field. No adapter ring, no custom framing required in typical installations.
- Integral Mounting System: Dog-leg spring clips engage the ceiling from above once the speaker is pushed through the hole. One person can complete the install without access above the ceiling tile, which matters on retrofit jobs where above-ceiling access is blocked or costly.
- 0.25" Faston Terminal Connections: Quick-disconnect Faston tabs mean you can terminate, test, and swap the driver without tools. On a multi-speaker run, this cuts commissioning time per drop versus screw terminals.
- 5% to 95% Non-Condensing Humidity Tolerance: Covers most interior commercial environments including kitchens, locker rooms, and warehouses with humidity variation — without requiring a special enclosure or housing.
- 10.6" x 3.6" Profile: The grille diameter and depth are sized for standard ceiling speaker rough-in; the 3.6" depth clears most standard ceiling plenum depths without conflict.
- Attractive Modern Finish: White grille blends with standard drop-ceiling tile. No exposed hardware visible from below — appropriate for lobbies, offices, and customer-facing spaces where speaker appearance matters.
Integration and Compatibility
The 40AE runs on standard low-impedance 8-ohm amplifier outputs. It connects directly to Viking paging controllers, zone amplifiers, and compatible third-party equipment. For distributed multi-speaker runs using 70V or 25V constant-voltage architecture, you will need a matching transformer — the 40AE is a direct 8-ohm driver, not a 70V tap speaker. Pair it with an appropriate paging amplifier sized for the total impedance load across your speaker zones.
Frequently Asked Questions
Q: What size ceiling cutout does the Viking 40AE require?
A: The 40AE requires a 9.5" to 10" diameter hole. It uses an integral mounting system that clips into this standard range without an adapter ring.
Q: Is the 40AE compatible with 70V constant-voltage paging systems?
A: No — the 40AE is an 8-ohm nominal impedance speaker. For 70V or 25V distributed systems, a matching transformer is required.
Q: What is the power handling of the 40AE?
A: The 40AE is rated at 15 watts nominal at 8 ohms.
Q: Can the 40AE be used in humid environments such as kitchens or locker rooms?
A: The 40AE is rated for 5% to 95% non-condensing humidity, making it suitable for most commercial interior environments with humidity variation. It is not rated for outdoor or wet-location use.
Q: What type of wire connection does the 40AE use?
A: The 40AE uses 0.25" Faston quick-disconnect terminals for tool-free speaker wire connection.
The 40AE's 85 Hz to 15,000 Hz frequency response is the spec I focus on when evaluating ceiling speakers for paging — it tells you whether you're buying a real driver or a phone-grade element in a pretty housing. The 40AE covers the full voice band with enough headroom on both ends that tone alerts and voice announcements stay intelligible even in reverberant concrete-and-drywall spaces.
Technical Highlights:
- 15W at 8 Ohms: Direct-impedance load compatible with standard zone amplifier outputs. No step-down transformer needed on a properly designed 8-ohm run — keeps the signal path clean and reduces component count.
- 9.5"–10" Cutout Range: Covers the most common rough-in sizes in the field. On retrofit jobs this is the detail that separates a one-hour install from a half-day ceiling repair.
- 5%–95% Non-Condensing Humidity: Broader tolerance than most budget paging drivers. Deployable in food-service, athletic, and light-industrial interiors without a specialized enclosure.
Deployment Considerations:
- The Faston terminal connection is efficient for commissioning, but confirm your wire gauge terminates cleanly onto the 0.25" tab — undersized lugs on 16 AWG wire can back out on vibrating ceiling tiles over time.
- The 40AE is not a 70V tap speaker. If your amplifier backbone is constant-voltage, budget for per-speaker matching transformers or reconsider the amplifier topology before specifying this driver across a large zone.
Best fit: school corridors, office open floors, and retail environments where you need reliable voice-band paging from a flush-mount driver that won't require above-ceiling access on a retrofit — and where the amplifier output is already 8-ohm matched.
