Panduit LCC750-12-6 Concise Descriptor
Overview

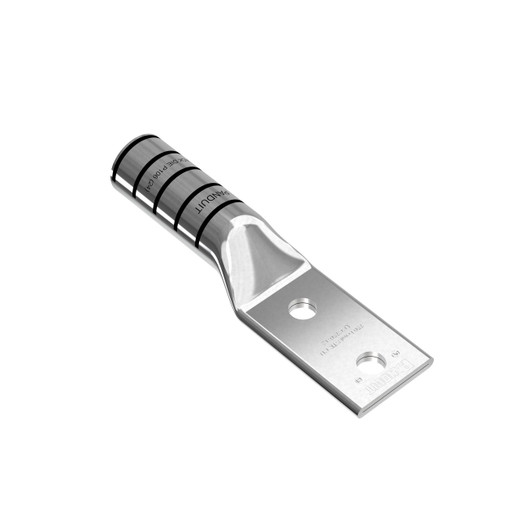

The Panduit LCC750-12-6 is a 750KCMIL, two-hole lug designed for secure, reliable electrical termination in power distribution systems. This lug is engineered for applications requiring robust connections, such as connecting power cables to busbars or equipment terminals. Its construction ensures low resistance and high conductivity, critical for maintaining system integrity and preventing thermal issues in high-current environments. The LCC750-12-6 is a key component for ensuring stable power delivery in demanding surveillance infrastructure deployments.
Compatibility
This lug is designed for use with 750KCMIL stranded copper conductors. It features two 1/2" stud mounting holes, spaced 1" apart on center, making it compatible with standard busbars and terminal blocks that utilize 1/2" studs. It is suitable for termination on equipment requiring a 750KCMIL cable input, commonly found in power distribution units (PDUs) and critical power infrastructure supporting large-scale surveillance systems.
Installation Notes
For optimal performance and safety, use a Panduit specified crimping die and locating pins for the LCC750-12-6 lug. Ensure the conductor is fully inserted into the barrel. Crimp with a consistent force to achieve a secure, gas-tight connection. Recommended torque for the 1/2" studs is 150 in-lbs (16.9 Nm). This ensures proper contact pressure and prevents loosening due to vibration or thermal cycling.
What's in the Box
- 1x Panduit LCC750-12-6 Lug
