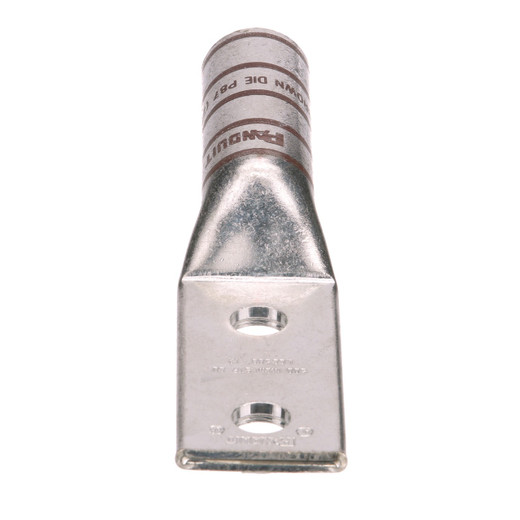

Panduit LCC500-12-6 500KCMIL Lug 2 Hole 1/2 Stud
Overview
The Panduit LCC500-12-6 is a heavy-duty electrical lug designed for terminating 500KCMIL conductors. It features two 1/2" stud holes, providing a robust and reliable connection point for power distribution in industrial and commercial installations. This lug is engineered for applications requiring secure, high-capacity power connections, such as main service entrances, switchgear, and large motor connections.
Compatibility
This lug is designed for use with 500KCMIL stranded copper conductors. The 1/2" stud holes are compatible with standard 1/2" hardware for mounting to busbars, equipment terminals, or other connection points. It is suitable for use with Panduit's range of crimping tools and dies to ensure a proper, permanent electrical connection.
Installation Notes
For optimal performance and safety, ensure the conductor is stripped to the correct length and inserted fully into the barrel of the LCC500-12-6 lug. Use a Panduit-approved crimping tool and die combination specified for 500KCMIL conductors to achieve a UL Listed and CSA Certified termination. Recommended torque for the 1/2" stud holes is 150 in-lbs (17 Nm) to ensure a secure mechanical and electrical connection without damaging the terminal or hardware.
What's in the Box
- 1x Panduit LCC500-12-6 Lug
