Panduit LCC600-12W-6 Concise Descriptor
Overview

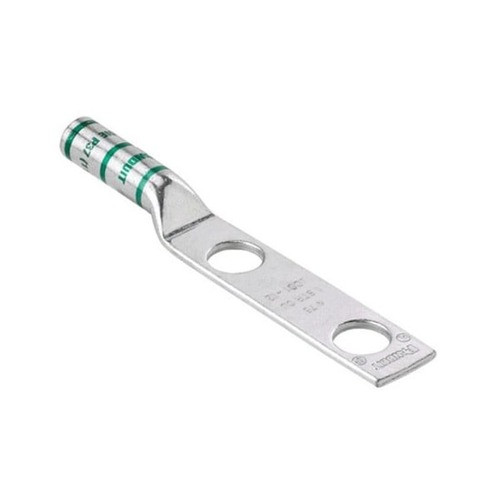

The Panduit LCC600-12W-6 is a heavy-duty electrical lug designed for terminating large conductors, specifically 600 KCMIL cable sizes. It features a two-hole configuration with 1/2" stud holes, ensuring a secure and reliable connection in power distribution and heavy electrical infrastructure applications. This lug is critical for maintaining electrical integrity and preventing connection failures in demanding environments.
Compatibility
This lug is engineered for use with 600 KCMIL stranded copper conductors. The 1/2" stud hole spacing is compatible with standard busbars and terminal blocks found in industrial power panels, switchgear, and large electrical equipment. It is suitable for applications requiring robust termination of high-current circuits.
Installation Notes
For optimal performance and safety, use a Panduit specified crimping tool and die set appropriate for 600 KCMIL conductors to ensure a permanent, high-strength connection. Torque the 1/2" stud holes to the manufacturer's recommended specification for the mating equipment to prevent over-tightening or under-tightening, which can lead to connection failure or overheating. Ensure the conductor is properly stripped and inserted fully into the barrel before crimping.
