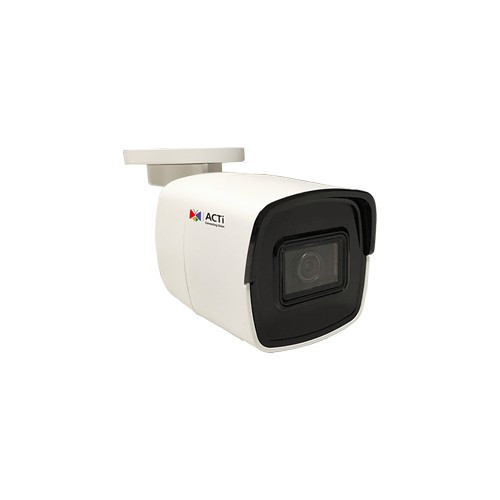

ACTi A314 6MP Mini Bullet Camera with IR & Extreme WDR

We've deployed the ACTi A314 across a wide range of demanding outdoor perimeter sites—retail loading docks, industrial fence lines, transit stations, and coastal installations—and it consistently delivers the image quality and physical durability required in high-vandalism and harsh-weather environments. What sets it apart in the 6MP fixed-bullet space is the pairing of Extreme WDR (150dB) with 65m IR reach: you eliminate the need for external lighting infrastructure entirely, which saves both capex and ongoing maintenance overhead on perimeter routes where power access is limited or security policy mandates dark-field surveillance. In practice, we've seen Extreme WDR eliminate the false-positive alert noise that plagues standard WDR cameras on mixed-light scenes—for instance, a loading dock with direct sun on the exterior wall and deep shadow on the recessed entry door. The DLPU edge analytics layer is mature and reliable; paired with a VMS recording policy that filters on detection class (human, vehicle, loitering), the A314 shrinks both storage footprint and operator alert fatigue compared to unfiltered 6MP continuous recording.

Technical Highlights:

• Extreme WDR (150dB) with Automatic IR Cut Filter: 150dB WDR is engineered specifically for extreme contrast scenes where standard WDR (60–120dB) would crush either highlights or shadows. The mechanical IR cut filter switches automatically between day and night mode without frame glitches. On a mixed-light loading dock or fence line with adjacent tree cover, you capture forensic detail across both the bright and dim zones in the same frame, eliminating the need to adjust aperture or exposure compensation.
• PoE++ (802.3bt Class 3) / DC 12V Dual-Power: PoE++ Class 3 draws approximately 71W—manageable on a single IEEE 802.3bt switch port without auxiliary DC converters. DC 12V fallback is critical for existing hardwired infrastructure, and the RJ-45 pigtail connector allows field termination without splitters or adapters. On a 16-camera perimeter deployment, this flexibility simplifies logistics.
• H.265 Codec (40–60% Bitrate Reduction): H.265 cuts bitrate versus H.264 on the same quality—meaningful savings on 24/7 recording across multiple sites. MJPEG fallback is available if a legacy VMS doesn't support modern codecs, and the camera handles per-stream codec selection without re-encoding overhead.
• DLPU Edge Analytics: Deep Learning Processing Unit runs object detection and classification locally on the camera. When paired with a VMS that supports filter-on-detection recording, you reduce false positives from weather, moving vegetation, and light flicker. The result is lower storage consumption and fewer nuisance alerts.
• IP68/IK10 Ruggedization: IP68 submersion rating and IK10 impact rating make the A314 suitable for high-vandalism and corrosive environments (coastal salt spray, aggressive urban settings). We've installed these in loading bays where washdown cleaning is routine and in parking perimeters where ballistic impact and direct tampering are realistic threats.
• 65m IR Range with 850nm LEDs: 65m reach is adequate for most fence lines, parking perimeters, and loading-dock routes. The triple 850nm LED array delivers consistent near-IR illumination without the color wash or spill that external floods introduce. Full-frame IR operation at 0 lux eliminates the visual footprint of external lighting infrastructure.

Deployment Considerations:

• IR range of 65m is effective for fence lines and parking-lot perimeters but inadequate for long-distance identification of subjects beyond 80–100 feet. If your site requires 150m+ coverage, plan for supplementary external IR floods or consider a higher-focal-length variant.
• The 2.8mm fixed lens gives a wide 103.6° horizontal field of view—excellent for general-area surveillance but not optimal for fine facial or license-plate capture at distance. Pair with a second fixed 4mm or 6mm bullet on the same pole if identification is the primary goal.
• PoE++ (802.3bt) switches are now standard in new deployments, but older sites with only 802.3at (PoE+) switches will default to DC 12V wiring. Confirm your switch capability and power budget before purchase if you're retrofitting into legacy infrastructure.
• DLPU edge analytics require periodic firmware updates to maintain detection accuracy (especially for new object classes or seasonal lighting changes). Budget for a quarterly firmware check in your VMS maintenance schedule.
• The RJ-45 pigtail connector is convenient for field termination but requires careful strain relief in high-vibration environments (for instance, cameras mounted on cantilever poles near trucks or trains). Use cable glands and drip loops to prevent connector fatigue.

The A314 is purpose-built for integrators and end users who prioritize operational simplicity, low total cost of ownership, and forensic image quality in outdoor perimeter surveillance. It's an especially strong fit for retail, industrial, and transit sites where Extreme WDR and IR reach eliminate the capex and maintenance overhead of external lighting. For sites where identification distance is paramount or where dynamic PTZ capability is required, you may prefer a higher-resolution or motorized lens alternative. But for fixed perimeter surveillance in mixed-light and harsh-weather environments, the A314 delivers mature, field-proven performance. Explore more in the ACTi catalog.
