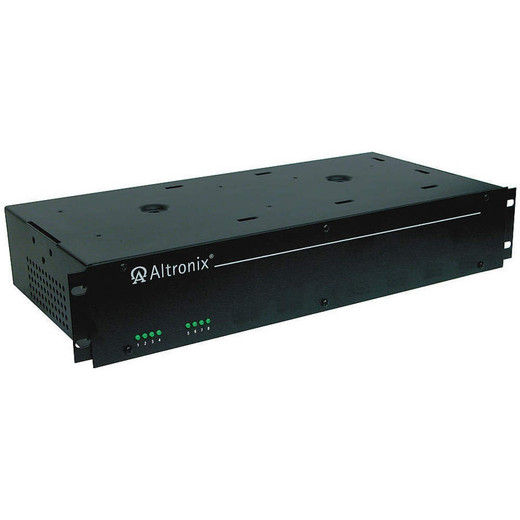

Altronix ALTV615DC48ULM 6-15VDC 4A 8 FUSEOUT UL UL/CUL
Overview
The Altronix ALTV615DC48ULM is a versatile power distribution module designed to provide regulated 6 to 15VDC output across eight individually fused outputs. This unit is engineered for applications requiring multiple low-voltage devices, such as IP cameras, access control readers, or sensors, to be powered from a single source. Its adjustable voltage output and individual fusing offer granular control and protection, making it suitable for complex surveillance system deployments where precise power delivery is critical. The ALTV615DC48ULM is UL/CUL listed, ensuring it meets stringent safety and performance standards for commercial installations.
Compatibility
This power distribution unit is compatible with a wide range of low-voltage DC powered surveillance and security devices. It is designed to power equipment requiring 6VDC, 9VDC, or 12VDC, up to a total of 4 Amps. Specific compatible device families include, but are not limited to, various models within the Axis Communications M-series and P-series IP cameras, Hanwha Techwin's L-series and Q-series cameras, and Hikvision's Easy IP series cameras when configured for the appropriate DC input voltage. It also supports numerous access control systems and components that operate within its specified voltage and current parameters.
Installation Notes
The ALTV615DC48ULM requires a 115VAC or 230VAC input. Each of the eight outputs is protected by a 3A fuse, which can be replaced with fuses ranging from 0.5A to 3A to match specific device power requirements. The unit features a terminal block for power input and output connections. Ensure proper ventilation around the unit to prevent overheating, as it is designed for continuous operation. The enclosure is designed for wall or ceiling mount applications.
What's in the Box
- 1x Altronix ALTV615DC48ULM Power Distribution Module
- 8x 3A fuses (pre-installed)
- 1x Mounting template
