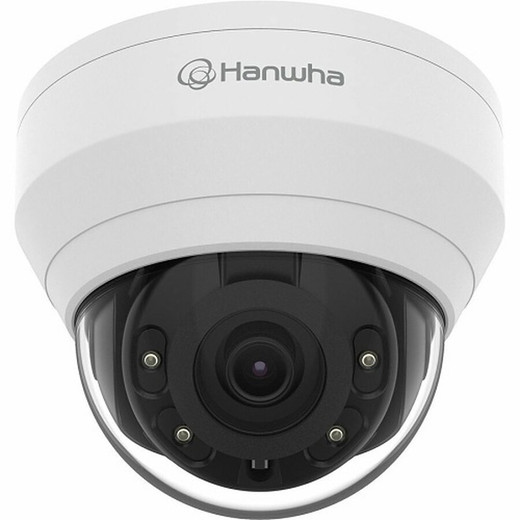

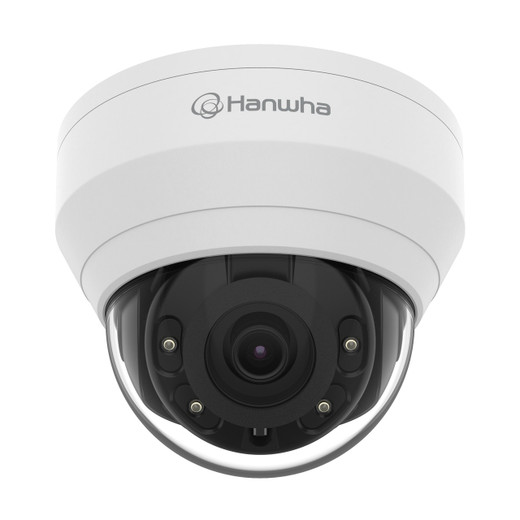

The Hanwha QND-8010R/KAP delivers professional 5MP surveillance imaging in a compact indoor dome form factor, combining advanced low-light performance with intelligent video analytics for mid-range security deployments.
Image quality is anchored by 5MP resolution paired with a 6mm fixed lens, delivering sharp detail across medium coverage areas. The camera excels in challenging lighting conditions with 0.15Lux color sensitivity and dedicated IR night vision, ensuring round-the-clock visibility. Triple codec support—H.265, H.264, and MJPEG—provides flexibility in bandwidth management and system compatibility. Wide Dynamic Range (WDR) technology handles scenes with mixed lighting, preserving detail in both bright and shadow areas simultaneously.
Built as a rugged dome unit rated for indoor use, the QND-8010R/KAP operates reliably across -10°C to +50°C environments with humidity tolerance to 90% RH. The compact form factor suits ceiling mounting in lobbies, corridors, retail spaces, and office areas where discrete surveillance is preferred. All processing runs on 512MB RAM and 256MB Flash, ensuring stable performance under continuous operation.
Power and connectivity are simplified through PoE (802.3af, Class 3) delivery over standard RJ-45 Ethernet, eliminating the need for separate power runs. The camera integrates with standard IP networks via ONVIF protocol support, enabling seamless integration into multi-vendor VMS and NVR ecosystems. HTTP API (SUNAPI) access enables custom application development and third-party control integration.
On-board analytics provide operational intelligence without external processing overhead. Motion detection, directional/virtual line crossing, enter/exit counting, defocus detection, and tampering alerts all execute locally, reducing bandwidth consumption and enabling faster event response. Title overlay capability supports up to 85 characters for zone labeling and metadata display.
The QND-8010R/KAP targets mid-market installers and facility managers seeking balanced performance, standard network integration, and intelligent event detection in a cost-effective 5MP platform.
- 5MP resolution with 6mm fixed lens for medium-coverage indoor areas
- 0.15Lux color capability and IR night vision for 24/7 operation
- PoE (802.3af) powered—no additional power infrastructure required
- H.265, H.264, and MJPEG codec support for flexible bandwidth management
- Built-in analytics: motion, line crossing, enter/exit, defocus, tampering detection
- ONVIF and SUNAPI (HTTP API) for open-standard VMS integration
The QND-8010R/KAP is a solid mid-tier choice for indoor facilities where budget and network simplicity matter. Its 0.15Lux sensitivity and IR coverage handle poorly lit corridors and storage areas without requiring supplemental lighting, while PoE delivery keeps installation costs down. Local analytics reduce NVR processing load, making it ideal for multi-camera deployments on modest network infrastructure. The ONVIF support ensures you're not locked into proprietary ecosystems—important for long-term flexibility in mixed-brand installations.
