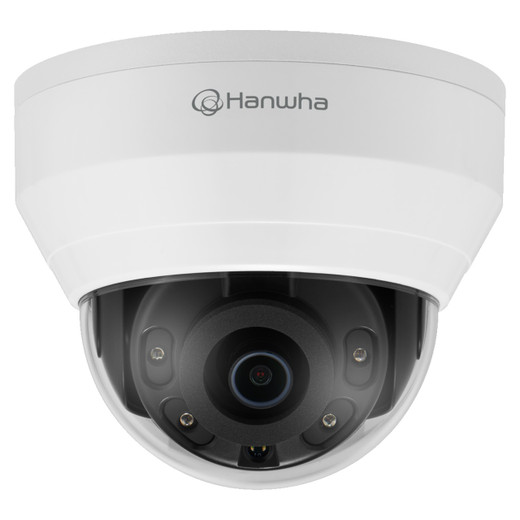

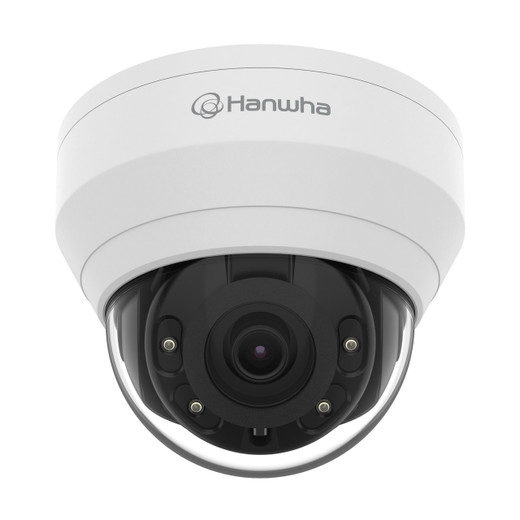

Hanwha QND-8010R 5MP Vandal-Resistant Dome Camera

The Hanwha QND-8010R is a compact micro dome IP camera built for indoor surveillance in high-traffic or semi-public environments where physical resilience matters. With a 5MP CMOS sensor and 2.8mm fixed lens, it delivers a 105° horizontal field of view—wide enough to cover typical office, retail, or institutional spaces without excessive blind spots. The vandal-resistant dome design withstands tampering attempts and accidental impacts, making it practical for areas prone to interference or deliberate damage.

Key Features

• 5MP Resolution (2592×1944) at 30fps: Captures enough detail for identification and general observation within 8–16 meters of typical office lighting. Output formats support multiple simultaneous streams—important if you're mixing frame rates or resolutions for storage vs. live viewing.
• 120dB Wide Dynamic Range (WDR): Handles challenging mixed-lighting scenes—windows with bright outdoor light bleeding into darker indoor areas—without washing out faces or losing shadow detail. Critical in retail environments and offices with variable ambient light.
• H.265 and H.264 compression with WiseStream II: H.265 reduces file sizes roughly 40–60% compared to H.264 on typical indoor scenes, cutting storage and bandwidth overhead. MJPEG option available for applications requiring full-frame quality at the cost of larger files.
• Day/Night Auto-Switching with 850nm IR: Infrared illumination reaches 20 meters, supporting reliable night detection in completely dark spaces. Color sensitivity drops to 0.15 Lux; IR black-and-white mode handles 0.015 Lux—sufficient for most unlit indoor areas. Auto-switching prevents IR bleed into daytime footage.
• F2.0 Maximum Aperture: Lets more light through the fixed 2.8mm lens, improving low-light performance without requiring excessive sensor gain (which adds noise). Electronic shutter speeds from 1/5 to 1/12,000 seconds give precise control over exposure across varying scenes.
• MicroSD/SDHC/SDXC Edge Storage up to 128GB: Local card recording acts as redundancy when the network recorder is unreachable. Useful in retail or warehouses where NVR downtime is unacceptable. Supports SD, SDHC, and SDXC cards—no exotic hardware required.
• PoE Powered (IEEE 802.3af, 7.5W typical): Standard 802.3af PoE means no separate power supply. Draws under 13W, leaving overhead on a typical 30W+ PoE port. Cat5e or better network cable handles both power and video.
• Compact Vandal-Resistant Dome (ø110.6×89.5mm): Small footprint minimizes visual prominence in retail or corporate settings. Polycarbonate dome and metal housing resist intentional impact and casual bumps.
• Dual Alarm I/O (1 input, 1 output): Trigger external devices (door unlock, buzzer, strobes) based on motion or tampering detection. Input line accepts switches or sensors for manual override or external event logging.
• Motion Detection & Analytics: 4 polygonal motion zones, tampering detection, defocus alerts, and virtual line-crossing detection enable event-driven recording and actionable alerts. Reduces false alarms compared to frame-differencing alone.

Integration & Compatibility

The QND-8010R (often searched as QND 8010R) supports ONVIF Profile S, G, and T—ensuring compatibility with major VMS platforms including Milestone XProtect, Genetec Security Center, and others. Gigabit Ethernet provides unicast and multicast streaming to up to 6 simultaneous users. Enterprise security features include 802.1X network authentication, HTTPS/SRTP encrypted communication, and firmware validation via Hanwha Private Root CA—important in regulated environments (retail PCI-DSS, healthcare HIPAA).

Integrated backlight compensation (BLC and SSDR), digital noise reduction (SSNR), and video rotation (flip, mirror, hallway mode) simplify installation and reduce post-processing overhead. Defocus and tampering alerts notify operators immediately when the camera is blocked or moved.

Applications & Deployment

Best suited for indoor retail, offices, banks, schools, and transportation hubs where compact size and physical resilience are primary concerns. Detection performance ranges: 40m (general detection), 16m (observation), 8m (recognition), 4m (identification). In typical office or retail lighting, expect reliable face recognition within 4–6 meters and body-movement detection to 12+ meters.

The compact form factor and low power consumption make this camera well-suited to IP camera deployments where switch capacity or ceiling space is limited. For organizations evaluating indoor surveillance systems, the combination of vandal resistance and solid low-light performance justifies the compact footprint.

Frequently Asked Questions

Q: What is the maximum IR range on the QND-8010R?

A: The 850nm infrared illumination reaches approximately 20 meters in complete darkness. In partially dark environments (e.g., emergency exit lighting), effective range may be longer due to ambient IR reflection.

Q: Does the QND-8010R support ONVIF?

A: Yes. The camera supports ONVIF Profile S, G, and T, ensuring interoperability with most major VMS platforms including Milestone XProtect, Genetec Security Center, Hanwha's own Wisenet Platform, and others.

Q: Can I use standard PoE switches to power the QND-8010R?

A: Yes. The camera draws 7.5W typical and up to 13W maximum under IEEE 802.3af (Class 3) PoE. Standard PoE switches with 30W or higher per-port budgets will handle this without issues.

Q: What compression formats does the QND-8010R support?

A: The camera supports H.265, H.264, and MJPEG. H.265 is recommended for 24/7 recording to minimize storage overhead—typically 40–60% smaller files than H.264 on the same scene.

Q: Is the QND-8010R suitable for outdoor use?

A: No. This is an indoor-only camera. It lacks the weatherproofing (IP66/IP67) and heater/defroster required for outdoor temperature extremes and direct rain. For outdoor vandal-resistant coverage, consider a higher-rated outdoor dome from the same family.

Q: What local storage options does the QND-8010R offer?

A: The camera has a microSD/SDHC/SDXC card slot supporting cards up to 128GB. This enables edge recording for redundancy when the NVR is offline or unreachable.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QND-8010R strikes a practical balance between coverage and physical resilience for mid-market indoor deployments. Its 5MP sensor delivers sufficient resolution for typical identification tasks within standard office and retail distances (4–8m). The 120dB WDR implementation is genuinely useful—most compact domes in this class struggle with mixed lighting; the QND-8010R handles it reliably without over-processing or obvious color shifts.

Technical Highlights:

• H.265 codec with WiseStream II: 40–60% storage reduction versus H.264 on continuous recording. Across a 16-camera retail deployment running 24/7, that's meaningful infrastructure savings—fewer NVR drives, lower power draw, less NAS traffic.
• 20m IR range with 0.015 Lux sensitivity: Handles completely dark stockrooms and unlit corridors without external lighting infrastructure. The 850nm wavelength minimizes user visibility (important in retail where visible IR is perceived as creepy).
• 7.5W typical, 802.3af PoE: Low power budget lets you deploy this across a standard 48-port 90W PoE+ switch with room for concurrent terminals, access points, and other endpoints. No dedicated power infrastructure required.
• Vandal-resistant polycarbonate dome + metal housing: Resists deliberate or accidental bumps without sacrificing optical clarity. Key differentiator if your site has frequent traffic or known tampering history.

Deployment Considerations:

• Fixed 2.8mm lens is wide (105° FOV) but non-adjustable. Plan mounting height and distance carefully—you cannot zoom in post-deployment. Hanwha's detection distance tables (40m general, 16m observation, 8m recognition, 4m identification) are realistic for typical office lighting; don't assume better in poor conditions.
• Edge storage via microSD is redundancy, not primary. A 128GB card at 5–8 Mbps bitrate (typical H.265) holds roughly 40–50 hours of continuous video—useful for overnight backup if the NVR fails, but not a long-term archive solution.
• IP67 or IP66-rated outdoor variants exist in the Hanwha catalog if you need weatherproofing; this model is indoor-only. Humidity and dust won't destroy it, but direct rain and extreme temperature swings will.

Deploy the QND-8010R in retail corridors, office lobbies, bank teller areas, and school hallways where space is tight and physical durability is mandatory. The combination of low PoE footprint, proven WDR performance, and compact form factor makes it a solid foundation for networks where infrastructure costs and installation disruption are real constraints.
