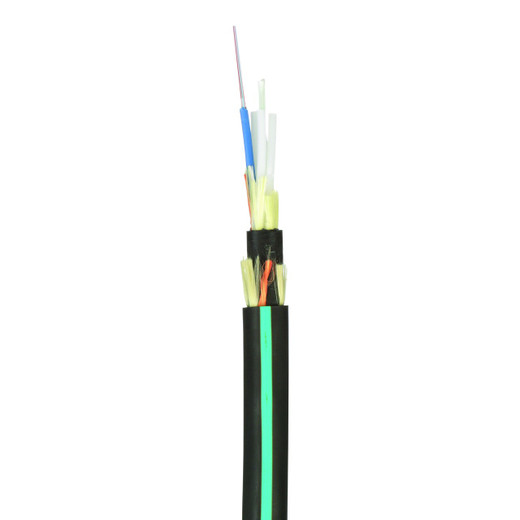

Panduit FOJDZ12 OM4 12-Fiber Dielectric Double Jacketed Riser/LSZH Cable

The Panduit FOJDZ12 delivers dual-rated pathway flexibility for integrators managing backbone fiber runs across mixed building environments. Built on a Dielectric Double Jacketed (DDJ) construction with Kevlar reinforcement, this OM4 50µm multimode cable combines Riser (OFNR) and Low Smoke Zero Halogen (LSZH) compliance in a single 12-fiber assembly. The all-dielectric design eliminates metal components, enabling direct routing alongside power infrastructure without added separation requirements. For campus backbones, industrial facility interconnects, and vertical riser deployments where conduit budget or space constraints limit traditional pathway options, the FOJDZ12 reduces installed cost while maintaining crush and impact resistance through its double-jacket architecture.

Key Features

• Dual Riser/LSZH Rating: Single cable meets both NEC Article 770 Riser (OFNR) and LSZH fire-safety requirements, eliminating the need to stock separate cable types for different building zones
• Dielectric Double Jacket Construction: Kevlar-reinforced dual-layer jacketing provides crush resistance up to typical pathway loading while eliminating conduit requirements in many applications
• OM4 50µm Multimode Performance: Supports 10GBASE-SR up to 400 meters and 40/100GBASE-SR4 up to 150 meters, appropriate for building backbone and equipment room interconnects
• All-Dielectric Design: No metallic components simplifies installation near AC power lines, eliminates bonding/grounding steps, and reduces lightning/surge vulnerability in outdoor transitions
• Indoor/Outdoor Rating: Single cable handles building entrance transitions, rooftop equipment connections, and underground vault pulls without splice points at building penetrations
• 12-Fiber Count: Provides six duplex links or enables polarity-flexible deployment for parallel optics applications (40G/100G SR4) with capacity for future expansion
• Black LSZH Jacket: Low-visibility aesthetics for exposed industrial deployments combined with reduced smoke and halogen acid production during fire events

The DDJ construction separates the FOJDZ12 from traditional tight-buffered distribution cables by layering a secondary protective jacket over the primary fiber assembly. Panduit reinforces both jacket layers with aramid yarn (Kevlar), creating a load-bearing structure that withstands up to 600 lbf short-term installation tension and 200 lbf long-term suspended loads. This dual-wall design delivers impact resistance equivalent to armored cable in most applications while maintaining the flexibility and bend radius advantages of non-armored assemblies—minimum bend radius under load is 20× cable diameter, approximately 6 inches for the FOJDZ12. The dielectric construction eliminates copper drain wires, foil shields, and steel armor components found in traditional outdoor cables, removing the NEC Article 770.100 bonding and grounding requirements that add labor and material cost to metallic cable installations. Integrators routing fiber alongside 480V branch circuits or through cable tray shared with power feeders gain installation flexibility without the 12-inch separation distances mandated for conductive cables.

The OM4 fiber core supports laser-optimized 50µm multimode transmission with 4700 MHz·km effective modal bandwidth at 850nm—sufficient for 10 Gigabit Ethernet (10GBASE-SR) links up to 400 meters and 40/100 Gigabit parallel optics (40GBASE-SR4, 100GBASE-SR4) up to 150 meters per IEEE 802.3 specifications. This performance envelope covers typical building backbone distances (equipment room to telecommunications room) and horizontal industrial runs (control room to remote equipment enclosures) without requiring singlemode fiber or media conversion. The 12-fiber count delivers six full-duplex links for traditional duplex LC or SC connectivity, or enables polarity Method B/Method C deployment for 40G/100G applications using MPO/MTP trunk connectors. Installers gain headroom for link redundancy, future bandwidth expansion, or multi-tenant fiber allocation within a single cable pull. The LSZH jacket material meets IEC 60754-1 and IEC 61034 flame-propagation and smoke-density requirements, making the FOJDZ12 appropriate for occupied plenums, enclosed cable trays in passenger spaces, and other areas where smoke toxicity and visibility during fire events drive material selection. The simultaneous Riser (OFNR) rating under NEC Article 770.113 allows the same cable to run vertically through floor penetrations and within non-plenum shafts, consolidating inventory and eliminating transition splices at rating boundaries.

Deployment context centers on installations where conduit cost, space, or installation labor exceeds the premium for ruggedized cable. Industrial manufacturing facilities running fiber from control rooms to distributed equipment enclosures across factory floors use DDJ cable to avoid underground conduit trenching or overhead rigid-conduit installations—the double jacket and Kevlar reinforcement withstand forklift traffic when routed in floor troughs or surface raceways, and the all-dielectric construction eliminates concerns about ground loops or voltage rise during fault conditions. Campus backbone applications between buildings leverage the indoor/outdoor rating to eliminate splice vaults at building entries; the cable transitions directly from underground duct bank to vertical riser without requiring a transition splice to indoor-rated cable at the penetration point. Data center operators use 12-fiber DDJ assemblies for equipment row to meet-me room interconnects where underfloor pathways limit the diameter and crush resistance of traditional round distribution cables—the dual jacket construction survives the repeated floor-tile removals and equipment cart traffic typical of active data halls. Multi-tenant commercial buildings gain installation flexibility by running dual-rated cable through mixed plenum, riser, and non-rated spaces using a single cable type, reducing on-site inventory and eliminating the risk of incorrectly specified cable during tenant build-outs.

The FOJDZ12 ships as part of Panduit's IndustrialNet product line, covered by the company's 25-year system warranty when installed per manufacturer guidelines and terminated with Panduit connectivity components. The warranty requires cable handling within specified bend radius and tension limits (documented in Panduit installation guide IW-IG) and proper strain relief at termination points—installers should verify that patch panel or equipment mounting hardware incorporates cable tie-down points or cable management brackets to prevent long-term stress on fiber splice trays or connector back-shells. The OM4 performance tier requires inspection and cleaning of all connector end-faces per IEC 61300-3-35 prior to mating to prevent insertion loss degradation from dust or oil contamination; integrators should budget for alcohol wipes and visual inspection scopes (minimum 200× magnification) as part of the termination toolkit. For applications requiring armored protection beyond the DDJ jacket's capabilities—such as direct-bury installations subject to rodent activity or areas with risk of sharp-object penetration—Panduit's FAJDZ series provides interlocking aluminum armor over a similar dielectric core construction. The FOJDZ12 represents the practical middle ground for the majority of backbone applications: sufficient durability to eliminate conduit, dual rating to cross building zones, and OM4 performance to support current 10G deployments with a clear migration path to 40G/100G parallel optics as equipment lifecycles drive interface upgrades.
