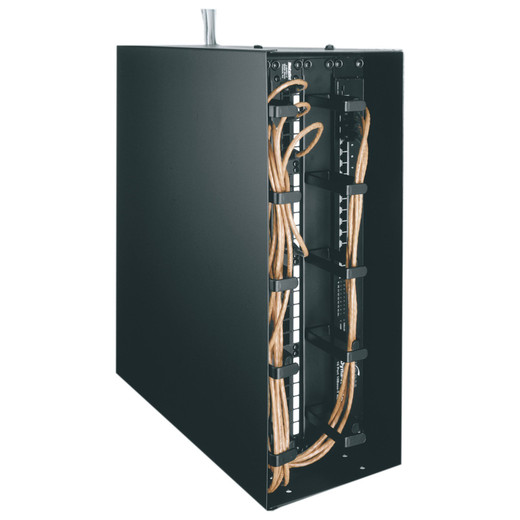

Middle Atlantic 4SP Sideways Panel Mount - SPM-4

Middle Atlantic SPM-4 4U Sideways Panel Wall Mount Rack

Overview

The Middle Atlantic SPM-4 is a 4U sideways panel mount designed for wall installations where horizontal rack space is limited or floor-standing enclosures simply don't make sense. Part of Middle Atlantic's SPM low-profile wall rack series, the SPM-4 lets you mount standard 19-inch rack panels and equipment flush to a wall in a sideways orientation — a practical solution for security head-end closets, IDF rooms, and utility spaces where you need organized equipment mounting without committing to a full cabinet footprint. If you've been screwing panels to a wall without a proper rail system, this is the hardware that solves that problem cleanly.

At 21.75 inches deep and 7.5 inches tall, the SPM-4 accommodates 4U of rack-mounted gear — think small NVRs, patch panels, power conditioners, or access control head-end equipment — in a black powder coat steel chassis that comes in at 24 lbs. For projects specifying Middle Atlantic rack infrastructure, the SPM-4 slots naturally into the same ecosystem.

Key Features

• 4U Rack Capacity at 21.75" Depth: Four rack units of usable space on a wall-mounted rail means you can consolidate a small head-end — NVR, PoE switch, patch panel — without the floor space a tower or floor rack demands. The 21.75" depth handles most 1U and 2U rack equipment without overhang issues.
• 19" Rack Rail with 10-32 Threaded Holes: Standard 10-32 threaded rackrail means any standard rack-mount equipment installs without cage nuts or adapters. If your gear ships with rack screws, it fits — no workarounds required.
• 3-Position Adjustable Rail: The rackrail adjusts across three depth positions, giving you flexibility to accommodate equipment with different mounting ear depths. This matters when you're mixing shallow patch panels with deeper NVR chassis in the same 4U space.
• Wall Mount Orientation — Sideways Panel Design: The sideways mounting orientation is the defining feature here. Rather than a conventional upright wall rack, the SPM-4 mounts equipment panels horizontally along the wall. This works well in narrow mechanical rooms or alongside door frames where vertical clearance is available but horizontal wall runs are tight.
• Black Powder Coat Steel Construction, 24 lbs: Steel construction at 24 lbs means the SPM-4 is solid enough to hold dense rack equipment without flex. Powder coat finish matches standard rack cabinet interiors, so it doesn't look out of place when mounted near existing rack infrastructure.
• Compact 7.5" Height Profile: The 7.5-inch installed height keeps the overall wall footprint minimal. For installations where equipment needs to clear conduit runs, cable trays, or door clearances, this low profile matters more than it might seem on a spec sheet.

Integration and Compatibility

The SPM-4 accepts any standard 19-inch rack-mount equipment — network video recorders, managed PoE switches, access control panels, and patch panels all install on standard 10-32 threaded rail. The sideways orientation is suited to installations where the equipment's front-panel connections face downward or outward depending on final mounting position — verify cable management requirements for your specific gear before final placement.

For structured cabling and security head-end builds, the SPM-4 pairs naturally with rack accessories including horizontal cable managers and brush panels. This mount does not include power distribution or cable management — plan those separately based on your equipment load.

Installers working on larger deployments should evaluate the full wall-mount rack family alongside the SPM-4; deeper or higher-density installations may warrant a deeper-profile enclosure or an expanded unit count within the SPM series.

Frequently Asked Questions

Q: What rack unit capacity does the SPM-4 provide?

A: The SPM-4 provides 4U of standard 19-inch rack space on a wall-mounted sideways panel chassis.

Q: What type of rack rail does the SPM-4 use?

A: It uses a 10-32 threaded rackrail with 3-position depth adjustment, accommodating equipment with varying mounting ear depths without cage nuts or adapters.

Q: How deep is the SPM-4, and will it fit standard 1U rack equipment?

A: The SPM-4 is 21.75 inches deep, which accommodates most standard 1U and 2U rack equipment. Verify the chassis depth of any specific piece of gear against this dimension before purchasing.

Q: What does the sideways panel orientation mean for installation?

A: The sideways orientation means equipment mounts horizontally along the wall rather than in a conventional upright rack position. This suits installations where vertical wall space is available but floor space or horizontal clearance is limited.

Q: How much does the SPM-4 weigh, and what are its overall dimensions?

A: The SPM-4 weighs 24 lbs and measures 21.75 inches deep by 7.5 inches tall.

Q: Is the SPM-4 available in colors other than black?

A: Based on available product data, the SPM-4 ships in black powder coat finish. Contact your supplier to confirm current finish options.

James Everett

The SPM-4 (often searched as SPM 4) is one of those pieces of infrastructure that earns its keep on jobs where nobody thought ahead about where the head-end equipment actually goes. I've specified it on small commercial security installs where the IDF room was a converted utility closet — 21.75 inches of usable depth on a wall-mounted sideways rail means you can organize 4U of gear cleanly without eating floor space that the facilities team will fight you for.

Technical Highlights:

• 10-32 Threaded Rail: Standard threading means no cage nuts — your rack screws go directly into the rail. On a 4U install, that's a minor convenience; across a multi-site rollout where a technician is mounting panels in tight closets, it saves real time.
• 3-Position Rail Adjustment: The adjustable depth positions let you compensate for equipment with shallow mounting ears (patch panels, 1U power conditioners) versus deeper chassis (NVRs, managed switches). In a mixed head-end, that flexibility is what keeps the panel face flush instead of offset.
• 24 lb Steel Construction: This isn't a sheet-metal bracket. At 24 lbs unloaded, the SPM-4 has enough structural mass to hold dense equipment without rail flex — important when you're hanging a loaded 4U configuration on drywall anchors or into studs in a finished wall.

Deployment Considerations:

• The sideways orientation means front-panel access to equipment (ports, display, drives) will face a non-standard direction depending on final mount position — confirm your equipment's cable-exit direction before finalizing the mount location, especially for NVRs with top-mounted USB ports or front-facing drives.
• At 7.5 inches tall, the SPM-4 has minimal clearance above and below the rail. Account for cable bend radius when routing patch cables or power cords — tight installations may need horizontal cable managers mounted separately above or below the unit.

This mount earns its place specifically on small commercial security head-ends in space-constrained environments: retail back-office closets, server-room corners shared with other trades, and multi-tenant building IDF spaces where a full rack enclosure would be disproportionate to the equipment load.
