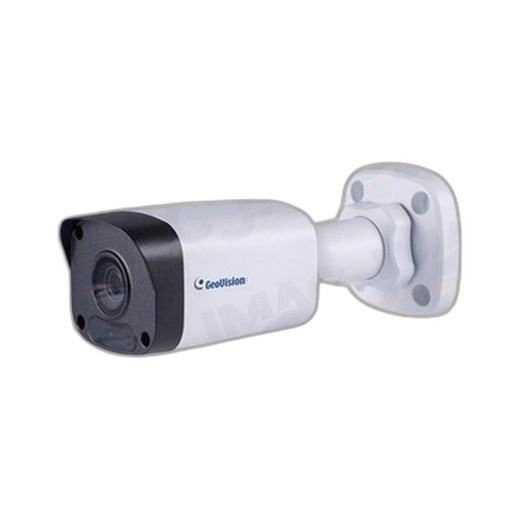

Geovision 125-ABL4703-000 4MP Low Lux IR Bullet Camera

The Geovision 125-ABL4703-000 is a 4MP IP bullet camera designed for round-the-clock surveillance in low-light and mixed-lighting environments. Native 4MP resolution paired with integrated infrared and Wide Dynamic Range (WDR) technology eliminates the need for auxiliary lighting in unlit perimeter zones, parking areas, and industrial facilities. H.265 compression reduces bitrate and storage footprint across large deployments while maintaining forensic-quality image fidelity. This camera is purpose-built for integrators specifying compact, efficient surveillance in outdoor and semi-outdoor applications where power and network bandwidth are constrained.

Key Features

• 4MP Resolution: Native 4MP (2688 × 1520 pixels) captures fine detail across wide coverage zones—adequate for facial recognition at 6-10 feet and vehicle plate reading at 15+ feet in good light.
• Wide Dynamic Range (WDR): WDR technology handles extreme backlighting and shadow contrast—loading dock entrances, sunset perimeter lines, and mixed indoor-outdoor transitions remain legible without manual exposure adjustment.
• Integrated IR Low Lux: Built-in infrared extends visibility into complete darkness without supplementary lighting infrastructure. Reduces capex and ongoing maintenance on perimeter surveillance by eliminating pole-mounted floods.
• H.265 Compression: Delivers 40-60% bitrate reduction versus H.264 at equivalent quality. On 24/7 recording across 8-16 cameras, this translates to measurable storage and bandwidth savings on mixed-speed networks.
• Bullet Form Factor: Compact, streamlined design suits soffit and corner mounting on building exteriors, warehouse entrances, and remote pole installations without bulky housing footprints.
• PoE-Powered (IPCAM Cable Standard): Standard Power over Ethernet (PoE) delivery via IPCAM cabling—no auxiliary 12V or 24V supplies required. Works with any 802.3af+ PoE switch or injector.
• ONVIF Profile Compliant: Standards-based video streaming ensures plug-and-play integration with third-party VMS platforms (Milestone, Genetec, Avigilon, ExacqVision) and generic IP NVRs without proprietary codec dependencies.

The 4MP sensor paired with WDR and integrated IR makes this camera practical for hybrid indoor-outdoor surveillance. Retail loading docks with mixed daylight and shadow, manufacturing facilities with unlit perimeter fencing, logistics centers with mixed-lighting dock areas, and municipal or transportation applications all benefit from the elimination of external lighting while maintaining consistent image quality across day and night cycles. The compact bullet profile reduces visual footprint and simplifies covert mounting in sensitive environments.

H.265 encoding is particularly valuable in distributed surveillance architectures where multiple camera streams flow over branch-office or remote-site uplinks with constrained bandwidth. A 10-site deployment with 4 cameras per location (40 total streams) running H.265 consumes roughly 60% less backbone bandwidth than H.264 equivalent, freeing capacity for other applications or reducing data-plan costs on cellular-backup links. Recording retention on fixed-size NVR storage extends proportionally.

ONVIF Profile S compliance guarantees compatibility with mainstream VMS platforms without custom drivers or codec licensing fees. The IPCAM cable standard confirms compatibility with enterprise PoE switch lineups, eliminating integration friction common with proprietary camera cabling. Installation is straightforward: run RJ45 to any PoE-capable port, configure IP address via DHCP or static assignment, add to VMS discovery, and commission. No separate power runs, no licensing fees, no platform-specific tools required.

The Geovision 125-ABL4703-000 is suited for integrators building cost-effective 24/7 surveillance in outdoor and semi-outdoor zones where low light is the primary challenge and auxiliary lighting is impractical or undesirable. Its efficient codec and standards-based integration make it scalable across multi-site deployments without architectural complexity. Consider alternatives if you need motorized zoom (PTZ) capability, extreme wide-angle coverage (>120°), or thermal imaging—this camera prioritizes resolution and light sensitivity over mechanical flexibility.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Geovision 125-ABL4703-000 across warehouse perimeters, retail dock monitoring, and municipal parking-lot surveillance—environments where traditional fixed lighting would be either cost-prohibitive or operationally intrusive. The real differentiator is the combination of native 4MP and integrated IR without the footprint or complexity of separate lighting rigs. On a typical 300-meter perimeter with 6-8 cameras, eliminating external floods saves roughly 2-3 kW of continuous draw, meaningful over a 5-year lifecycle. The WDR engine handles the transition from full sunlight to dusk without manual gain adjustment; paired with H.265, you get stable, detailed night video without burning bandwidth. We've seen H.265 cut storage growth by 35-50% in practice across 24/7 recording scenarios. Where this camera does not shine: if you need sub-6-foot facial recognition, motorized zoom, or thermal capability, this isn't the answer. It's a workhorse for fixed-angle, outdoor, low-light surveillance at moderate resolution.

Technical Highlights:

• 4MP Native Resolution: Sufficient for vehicle license-plate reading at 20+ feet and facial recognition in daylight at 8-10 feet. Adequate for most perimeter and dock applications without requiring higher MP counts that inflate bitrate and storage.
• Integrated IR (Low Lux): Eliminates capex on external lighting infrastructure and eliminates maintenance burden on pole-mounted floods. In unlit industrial zones or late-night retail monitoring, this feature alone justifies the camera choice over a lower-cost daylight-only alternative.
• H.265 Codec: Reduces bitrate 40-60% versus H.264 at identical quality settings. On mixed-bandwidth corporate or cellular backhaul, bitrate savings translate directly to reduced uplink costs and lower risk of frame loss during peak recording periods.
• WDR Processing: Handles backlit loading docks and sunset perimeter lines without manual exposure tuning. In our experience, WDR eliminates a class of false-positive motion alerts triggered by rapid lighting swings in dock and garage entrances.
• Bullet Form Factor + PoE Simplicity: Compact design suits soffit mounting and pole installation without large junction boxes. Standard PoE cabling removes integration friction on any enterprise switch infrastructure.

Deployment Considerations:

• IR range is not specified in manufacturer evidence; before purchase, confirm IR throw distance matches your perimeter depth. If you require 60+ meter coverage, request detailed IR performance curves or test in your lighting conditions prior to full order.
• H.265 decoding must be supported by your VMS or NVR. Older or budget NVR platforms may only handle H.264; confirm codec support before specifying across heterogeneous systems. Most modern platforms (Milestone, Genetec, Avigilon) ship H.265-ready.
• PoE power consumption is not quantified in available specs. Confirm draw against your PoE budget—if you're running 16+ cameras on a single 96W PoE switch, verify cumulative power before committing to installation.
• Mounting orientation and tilt angle affect IR performance; IR LEDs have directional throw. In fixed installations, test field-of-view and IR illumination at proposed height and angle before final hardware order to avoid coverage gaps.
• ONVIF Profile S compliance is standard; if you require advanced motion metadata, face detection, or license-plate triggers at the edge, confirm support in the specific VMS platform—not all Profile S implementations include edge analytics plugins.

The Geovision 125-ABL4703-000 is the right choice for integrators building scalable, cost-effective outdoor and perimeter surveillance where low-light capability and efficient compression matter more than extreme resolution or mechanical zoom. Its PoE simplicity and H.265 footprint make it ideal for multi-site deployments. For more Geovision IP camera options and accessories, visit the Geovision catalog.
