Geovision 84-TBL2703-0F10 2MP Low Lux IR Bullet Camera

Geovision 84-TBL2703-0F10 2MP Low Lux IR Bullet Camera

Overview

The Geovision 84-TBL2703-0F10 is a 2MP bullet camera built for 24/7 low-light and nighttime surveillance where infrared imaging is non-negotiable. The 4mm fixed lens and integrated IR array deliver usable footage in near-total darkness without external lighting—critical for perimeter monitoring, after-hours warehouse surveillance, and parking facilities where ambient light cannot be relied upon. WDR processing handles mixed-lighting scenes (sun-blasted doorway paired with dim interior, for example) by balancing bright and dark areas in a single frame, preventing the common problem of backlit subjects washing out. H.265 compression cuts storage footprint roughly in half versus H.264, a real factor when recording continuously across multiple cameras. PoE power simplifies installation: one Ethernet cable delivers both data and power to the camera, eliminating the need for a separate 12V supply.

Compatibility

The 84-TBL2703-0F10 integrates into any standard IP-based surveillance system via IPCAM cabling and operates as an ONVIF-compatible networked device. It pairs with modern NVRs and video management platforms that support H.265 and H.264 codecs. The PoE requirement means your network switch or injector must supply standard 802.3af or 802.3at power; verify your switch has available budget before deployment.

Installation Notes

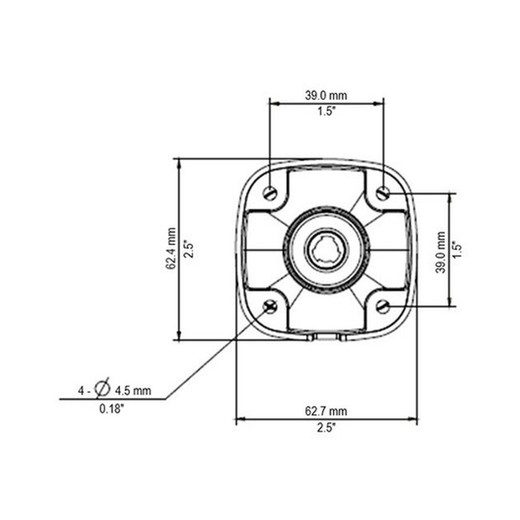

The compact bullet form factor mounts directly to walls, ceilings, or standard mounting brackets with minimal visual footprint. Ensure the IR LEDs have clear line-of-sight to the scene—obstacles or reflective surfaces directly in front of the lens will degrade night vision. Use shielded Ethernet cabling in electrically noisy environments (near high-voltage conduit or motor drives) to prevent signal degradation.
