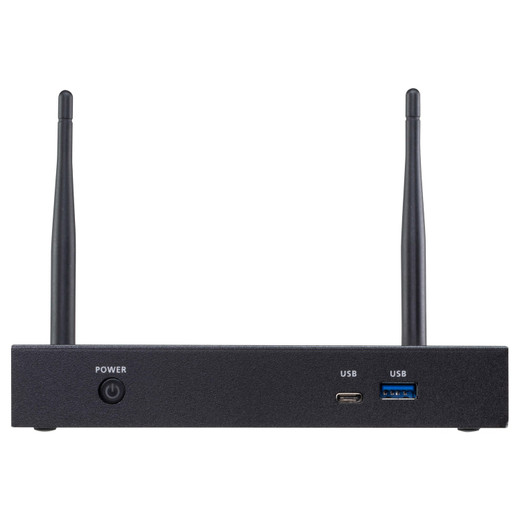

ATEN VP2020 4K Wireless Presentation Switch
Overview
The ATEN VP2020 is a wireless presentation switch designed for conference rooms and collaboration spaces where multiple presenters need to share content without fighting over cables. It handles HDMI sources up to 4K@30Hz and VGA sources up to 1080p, accepts wireless transmission from connected devices at ranges up to 20m on 5GHz or 30m on 2.4GHz, and draws power directly from a standard PoE switch — no power brick, no separate outlet needed at the display wall. If your meeting rooms are plagued by cable-swapping delays or mismatched adapters, the VP2020 addresses the core workflow problem directly. Explore the full ATEN collaboration and switching line for complementary solutions.
Key Features
- 4K@30Hz HDMI Output: Full 4K resolution over the HDMI output path (up to 5m cable run) delivers presentation-grade clarity on large-format displays. VGA output tops out at 1080p over runs up to 15m, which covers most legacy projector installs without a scaler in the chain.
- Dual-Band Wireless Reception: The VP2020 receives wireless screen-share transmissions at up to 20m on 5GHz (less interference in dense RF environments) or 30m on 2.4GHz (better wall penetration in larger rooms). Choose your band based on room geometry and local RF congestion — the extra 10m on 2.4GHz can matter in deep conference rooms.
- PoE-Powered (802.3af), 12W Draw: The unit pulls 12W at DC12V via the RJ-45 LAN port, which falls within standard 802.3af PoE budget. That means no local power outlet is required at the display wall — just a PoE-capable network switch with a Cat5e/6 run. Clean installs, no power conduit needed.
- Gigabit LAN (10/100/1000 Mbps): The onboard Gigabit Ethernet port handles both PoE power delivery and network connectivity simultaneously. At 1000 Mbps, there's headroom for high-bitrate 4K content streaming without dropping frames due to link saturation.
- 1600×1200 @ 60Hz Input Resolution Support: Beyond standard HDMI resolutions, the VP2020 accepts 1600×1200 at 60Hz from legacy workstations and specialized displays — useful in engineering or medical environments where non-standard aspect ratios are common.
- Stereo Audio Output: A 3.5mm mini stereo jack (female, black) provides analog audio output to room speakers or a display's audio input. Straightforward for rooms without digital audio matrix systems.
- Android Companion App: The VP2020 supports an Android software client (v1.1.20 as of 2026-02-09), letting Android devices participate in wireless presentation sessions without additional hardware dongles.
- Firmware Updatable: Current firmware v1.0.59 (released 2026-02-09) is field-upgradeable, meaning you can apply fixes and feature updates without replacing hardware — relevant for long-deployment-cycle AV infrastructure.
Integration and Compatibility
The VP2020 fits into standard AV switching and presentation infrastructure environments. The PoE LAN port handles both power and network management traffic, so a single Cat6 home-run from your IDF covers both. The 5GHz wireless band integrates cleanly into enterprise Wi-Fi environments where 2.4GHz congestion from IoT and legacy devices is a concern. VGA compatibility extends the unit's useful life in rooms with older projectors, avoiding full AV refresh costs. For rooms requiring content control and display management integration, check your VMS or room-control platform's compatibility with ATEN's management APIs.
The Android app (v1.1.20) supports wireless presentation from Android endpoints. For broader device support across iOS, Windows, and macOS endpoints, verify the transmitter accessory compatibility for the VP2020 family before specifying.
Frequently Asked Questions
Q: Does the ATEN VP2020 require a separate power supply?
A: No. The VP2020 draws 12W at DC12V via its RJ-45 LAN port using standard 802.3af PoE. As long as your network switch supports PoE on that port, no separate power outlet or adapter is needed at the display location.
Q: What is the maximum wireless transmission range of the VP2020?
A: The VP2020 supports up to 20m transmission range on the 5GHz band and up to 30m on the 2.4GHz band. Band selection should be based on room size and local RF congestion.
Q: What is the maximum video resolution the VP2020 supports?
A: Over HDMI, the VP2020 outputs up to 4K@30Hz (HDMI cable run up to 5m). Over VGA, maximum resolution is 1080p (VGA cable run up to 15m). Input resolutions include 1600×1200 @ 60Hz for legacy workstations.
Q: Is there an Android app for the VP2020?
A: Yes. ATEN provides an Android software client for the VP2020 (current version v1.1.20, released 2026-02-09), which allows Android devices to participate in wireless presentation sessions.
Q: Can the VP2020 firmware be updated in the field?
A: Yes. The VP2020 supports field firmware upgrades. The current firmware version is v1.0.59 (released 2026-02-09), available as a downloadable zip package from ATEN's support resources.
Q: What audio output does the VP2020 provide?
A: The VP2020 includes one 3.5mm mini stereo jack (female) for analog stereo audio output — suitable for direct connection to room speakers or a display's audio input.
The spec I keep coming back to on the VP2020 is the dual-band wireless range split: 20m on 5GHz, 30m on 2.4GHz. That 10-meter gap matters more than it looks on paper. In a long narrow boardroom or an L-shaped training space, that extra reach on 2.4GHz may be the difference between reliable wireless presenting from the back row and frustrated presenters walking to the front to plug in — which defeats the whole point of the unit.
Technical Highlights:
- 4K@30Hz HDMI Output: Delivers full 4K to the room display over cable runs up to 5m — sufficient for most wall-mount and short-throw installs. VGA path handles legacy projectors up to 15m without a separate scaler.
- PoE 802.3af at 12W: Stays within standard PoE budget, meaning you can power this from virtually any managed PoE switch port without checking per-port wattage ceilings — a clean, one-cable install.
- Gigabit LAN (10/100/1000 Mbps): The same RJ-45 port that delivers PoE also handles management and content traffic at up to 1Gbps, which gives 4K wireless streams the bandwidth headroom they need without contention.
Deployment Considerations:
- The HDMI cable run is capped at 5m — plan your display mounting and AV rack position accordingly. If your rack is more than 5m from the display, you'll need an HDMI extender in the chain, which adds a point of failure and potential resolution handshake issues.
- The 2.4GHz band offers more range but is more susceptible to interference in environments with dense IoT deployments, wireless phones, or neighboring APs. In enterprise spaces with clean 5GHz coverage, default to 5GHz and treat 2.4GHz as fallback.
The VP2020 is the right spec for medium-to-large conference rooms (up to roughly 10m x 10m on 5GHz) where the room is already on a PoE-capable managed switch and the AV install needs to stay cable-minimal. It's particularly well-suited for hybrid meeting environments where Android-device presenters are common and you need firmware maintainability over a multi-year deployment cycle.
