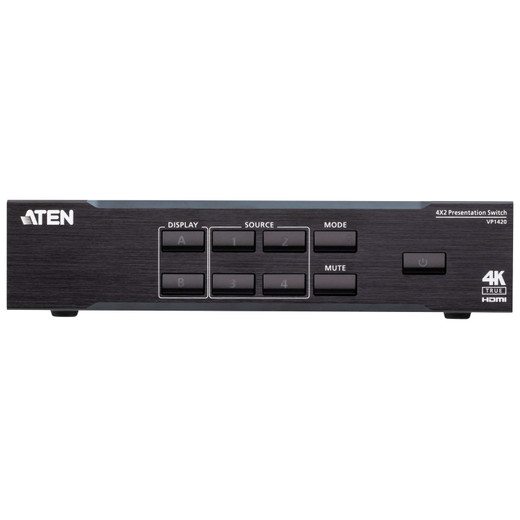

ATEN VP1420 4x2 True 4K Presentation Matrix Switch
The ATEN VP1420 is a 4-input, 2-output presentation matrix switch built for meeting rooms, boardrooms, and classrooms where multiple sources — laptops, desktop PCs, document cameras — need to route to two independent displays simultaneously. It handles True 4K@60Hz (4:4:4) signals over HDMI at cable runs up to 5 meters, extends to 4K@30Hz at 10 meters, and falls back gracefully to 1080p@60Hz at 15 meters, giving installers real flexibility when cable routes are tight or long. VGA inputs also run to 1080p@60Hz at 15 meters, so legacy sources stay in the mix without a separate converter.
Key Features
- True 4K@60Hz (4:4:4) signal throughput: Full chroma, full frame rate — no subsampling artifacts. At 5m you get the full pixel budget that 4K content demands. Step back to 10m and you're at 4K@30Hz, still usable for static presentations and video conferencing. Critical for environments projecting to large-format 4K displays where compression artifacts become visible.
- HDCP 2.2 compliance: Required for any deployment showing DRM-protected content — streaming services, Blu-ray, corporate video platforms. Without HDCP 2.2 end-to-end, protected content either blanks or degrades. The VP1420 handles the handshake so you don't have to troubleshoot display blackouts mid-meeting.
- 4K HDR support: High Dynamic Range pass-through means presentations originating from HDR-capable sources (newer laptops, media players) reach displays correctly. On a calibrated conference display or video wall, HDR content renders with the contrast and color volume the content creator intended.
- Consumer Electronics Control (CEC): CEC lets the VP1420 send power and input commands to compatible displays over the HDMI cable — no separate RS-232 or IR control wiring needed for basic display management. Useful for automated room-on/room-off sequences.
- EDID management with three modes (ATEN Default / Display A / Remix): EDID mismatches are the most common cause of no-signal failures in presentation systems. The VP1420 lets you lock to a known-good EDID (ATEN Default), mirror a connected display's EDID (Display A), or blend capabilities across outputs (Remix). Choose Display A mode during commissioning to guarantee source laptops always negotiate correctly.
- Unbalanced line audio output (3-pole captive screw): Routes audio to a room amplifier or DSP without a separate audio extractor. The captive screw connector stays secure under rack vibration — more reliable than RCA in installed AV applications.
- LED output control (5-pole captive screw, +5VDC / 0.2A): Powers LED status indicators or room-control lighting cues directly from the switch. Reduces accessory power wiring in smaller installations.
- Front-panel mute and mode/unlock pushbuttons: Local control without needing a connected control system. Mute suppresses audio instantly — useful when a presenter needs to cut audio without touching source devices. The mode/unlock button provides fast input switching or panel lock control.
- Firmware field-upgradeable (v1.2.112, released 2024-09-03): Active firmware development means compatibility fixes and feature additions reach installed units without hardware replacement. Keep the unit current in environments where source device OS updates change HDCP or EDID behavior.
- Operating humidity 0–80% RH non-condensing: Covers standard commercial interior environments. Not rated for high-humidity spaces like production kitchens or outdoor enclosures — plan accordingly.
Integration and Compatibility
The VP1420 sits naturally in presentation switcher deployments alongside room control systems. CEC over HDMI handles basic display power for simple rooms; more complex environments can pair the VP1420 with a dedicated control processor via the front-panel interface. The unbalanced audio output feeds directly into most commercial DSPs and mixer-amplifiers using a standard 3-pole captive screw connection. For larger signal distribution needs, the broader ATEN AV switching catalog includes matrix switches with higher port counts and HDBaseT extension for longer cable runs. If your project requires 4K delivery beyond 15 meters, evaluate HDBaseT-based matrix options that extend 4K over Cat6 to 40 meters or more — the VP1420's 15m ceiling is a hard limit of the HDMI spec, not a product deficiency. For planning multi-display conference rooms, a AV signal distribution guide covers source-to-display topology decisions that affect switcher selection. Pair with a rack mount kit for clean equipment room installation — the VP1420 supports both pole and rack mounting configurations.
Frequently Asked Questions
Q: What is the maximum 4K resolution and distance the VP1420 supports over HDMI?
A: The VP1420 supports True 4K@60Hz (4:4:4) at up to 5 meters, 4K@30Hz at up to 10 meters, and 1080p@60Hz at up to 15 meters over HDMI. VGA inputs support 1080p@60Hz up to 15 meters.
Q: Does the VP1420 support HDCP 2.2 for protected content?
A: Yes. The VP1420 is HDCP 2.2 compatible, which is required for passing DRM-protected content such as streaming video or Blu-ray to displays end-to-end without signal drop.
Q: How does EDID management work on the VP1420?
A: The VP1420 offers three EDID modes: ATEN Default (a fixed, known-good EDID profile), Display A (copies the EDID from the connected display on output A), and Remix (blends EDID capabilities across connected displays). Selecting the right mode prevents no-signal failures caused by EDID mismatches between sources and displays.
Q: Can the VP1420 control connected displays without a separate control system?
A: Yes, via Consumer Electronics Control (CEC) over HDMI. CEC allows the VP1420 to send power on/off and input-select commands to CEC-compatible displays directly over the HDMI cable, without additional RS-232 or IR control infrastructure.
Q: Is the VP1420 firmware field-upgradeable?
A: Yes. The VP1420 supports firmware upgrades — the current release is v1.2.112 (dated 2024-09-03). Field firmware updates allow the unit to receive compatibility and feature fixes after installation without hardware replacement.
Q: What audio output does the VP1420 provide?
A: The VP1420 includes one unbalanced line audio output via a 3-pole captive screw connector, suitable for connection to a room amplifier, DSP, or mixer. There is also a 5-pole captive screw LED output rated at +5VDC / 0.2A for room indicator or status lighting.
The VP1420 is one of those workhorses I keep recommending for mid-size corporate boardrooms — specifically because of how it handles EDID. The three-mode EDID management (Default, Display A, Remix) solves the single most common commissioning headache in presentation AV: the laptop that negotiates a resolution the display can't handle, or drops signal entirely when the room's second display has different capabilities than the first. Lock it to ATEN Default during setup and you eliminate that variable entirely before the client walks in for their first meeting.
Technical Highlights:
- True 4K@60Hz (4:4:4) at 5m HDMI: Full chroma resolution with no subsampling — matters for content that uses color-critical graphics or 4K broadcast feeds. The 5m ceiling is a physical HDMI limitation, not a VP1420 deficiency; plan your cable routing accordingly at design phase.
- HDCP 2.2 compliance end-to-end: Any deployment showing OTT streaming (Teams/Zoom backgrounds aside), Blu-ray, or corporate video libraries needs this. Missing HDCP 2.2 at any point in the signal chain causes a black screen — the VP1420 closes that gap.
- Unbalanced line out via 3-pole captive screw: Feeds room DSPs and amplifiers directly without an outboard audio de-embedder. Captive screw survives the vibration and cable-pull events that pop RCA connectors loose in rack installations.
Deployment Considerations:
- At 4K@60Hz, your HDMI cable runs are capped at 5 meters. For boardrooms where the rack is more than 5 meters from the nearest display input, plan for 4K@30Hz (10m) or step down to 1080p at 15m — or evaluate an HDBaseT extension solution upstream of the VP1420.
- CEC display control works only with CEC-enabled displays and depends on the TV/projector manufacturer's CEC implementation quality — some brands respond reliably, others are inconsistent. Verify CEC behavior on your specific display model during commissioning, not on-site at go-live.
For a dual-display boardroom or classroom running mixed HDMI and VGA sources at distances under 15 meters, the VP1420 is a clean, no-compromise fit. It's particularly well-suited to higher-education AV standardization projects where one SKU needs to cover a range of room sizes and source types without custom configuration per room.
