Panduit CPP48WBLY 48-Port Modular Front-Access Patch Panel

Overview

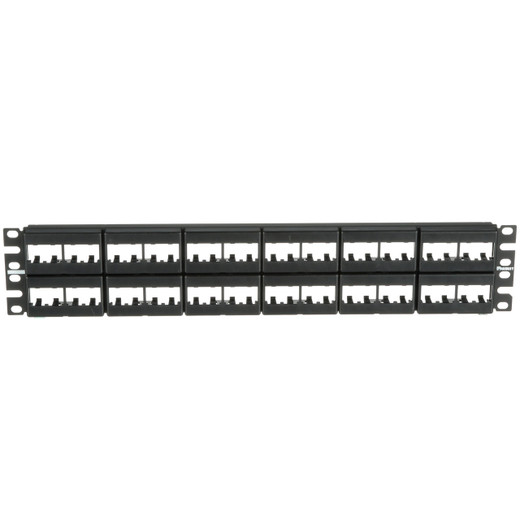

The Panduit CPP48WBLY is a 48-port, 2RU modular patch panel from the Pan-Net® line, engineered to terminate unshielded copper cabling in 19-inch and 23-inch rack enclosures. It accepts any Mini-Com™ module in each of its 48 ports, giving structured cabling teams the flexibility to mix copper media types, keystone jacks, or specialty inserts within a single panel footprint. If you manage a data center, IDF closet, or security head-end that runs mixed-use horizontal cabling, this panel's front-access design and tool-free module swapping reduce the time spent reaching behind rack equipment during MACs (moves, adds, changes).

The panel ships as a blank chassis — modules are purchased separately and factory-installed or field-installed per your cabling plan. This approach means you're not locked into a fixed jack count or configuration at time of purchase, which matters when infrastructure buildouts happen in phases.

Key Features

• 48 Ports in 2RU (19" × 3.47"): At 3.47 inches tall, the CPP48WBLY delivers 24 ports per rack unit — a practical density for IDF closets and security head-ends where rack space is shared with switches, patch bays, and cable managers. Fitting 48 connections into 2RU leaves room for the PoE switches and NVRs that typically share the same enclosure.
• Mini-Com™ Modular Architecture: Every port accepts any Mini-Com™ module — Cat5e, Cat6, Cat6A, fiber, coax, or specialty inserts — so the same chassis supports copper horizontal runs and fiber patch connections in the same panel. This matters when a single rack terminates both IP camera cabling (copper PoE) and backbone fiber without requiring a second panel.
• Front Access: All termination, labeling, and module replacement happens from the front of the panel without disturbing rear cable routing. In live environments — a retail floor MDF or an operations center patch bay — this means routine maintenance doesn't require clearing or re-routing trough cables behind the rack.
• Fits 19" and 23" Racks: The 19-inch panel width (482.6mm) mounts natively in standard EIA 19-inch two-post and four-post racks, as well as 23-inch open-frame racks using the appropriate rack adapter. Physical width 482.6mm, height 88.13mm.
• Adhesive Label Strips: The panel includes label strips for port identification. Accurate, persistent port labeling directly reduces troubleshooting time when tracing which jack maps to which switch port or camera drop — a real operational benefit in multi-camera deployments with 24+ connections terminating in one panel.
• CRS (Cold-Rolled Steel) Construction: The chassis is fabricated from cold-rolled steel, which provides the rigidity needed to prevent flexing under cable tension in high-density installations. A warped or flimsy patch panel chassis causes jack misalignment over time; CRS avoids that.
• RoHS-Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements — relevant for installations in jurisdictions with environmental compliance mandates, including EU deployments and domestic projects requiring RoHS documentation for procurement.
• Pan-Net® Sub-Brand: Part of Panduit's structured cabling ecosystem, the CPP48WBLY is designed to pair with Panduit's Panduit copper cabling and connectivity products, ensuring interoperability across the full channel without mixing manufacturers at the termination point.

Integration & Compatibility

The CPP48WBLY integrates into any standard 19-inch or 23-inch network patch panel rack environment. Because it's a modular chassis, compatibility with a specific cabling category (Cat5e through Cat6A) is determined entirely by the Mini-Com™ modules installed — the panel itself imposes no category ceiling. For structured cabling deployments in network infrastructure supporting IP cameras, access control readers, VoIP endpoints, or data, match the module category to the installed horizontal cable. Panduit's Mini-Com™ module ecosystem covers copper, fiber, and coax in both 180-degree and angled configurations.

The panel does not include built-in cable management — pair it with a horizontal cable manager (1RU or 2RU) above or below for clean dress-out. In high-density IDF builds, the standard practice is one cable manager per patch panel row.

The CPP48WBLY competes directly with Axis AX101458 and AX106289 modular panel SKUs in similar 48-port configurations; if you are standardized on Panduit Mini-Com™ modules throughout your infrastructure, this panel is the correct chassis.

Frequently Asked Questions

Q: Does the CPP48WBLY come with modules installed, or is it a blank chassis?

A: The CPP48WBLY ships as a blank 48-port chassis. Mini-Com™ modules (keystone jacks, fiber inserts, etc.) are ordered and installed separately, either factory-installed by Panduit or field-installed on-site.

Q: What rack sizes does the CPP48WBLY fit?

A: It fits standard 19-inch and 23-inch racks and cabinets. The panel width is 19 inches (482.6mm) and height is 3.47 inches (88.13mm), occupying 2RU.

Q: What type of modules does the CPP48WBLY accept?

A: It accepts Panduit Mini-Com™ modules across the full ecosystem — copper keystone jacks (Cat5e, Cat6, Cat6A), fiber inserts, coax adapters, and specialty inserts. Module choice determines the cabling category supported.

Q: Is the CPP48WBLY RoHS compliant?

A: Yes, the CPP48WBLY meets RoHS (Restriction of Hazardous Substances) compliance standards.

Q: What is the chassis material on the CPP48WBLY?

A: The chassis is constructed from CRS (cold-rolled steel), providing the structural rigidity needed to prevent flexing under cable tension in high-density rack installations.

Q: Can the CPP48WBLY be labeled for port identification?

A: Yes. The panel supports adhesive label strips for front-facing port labeling, which is essential for accurate documentation in multi-drop cabling environments.

Jerry Tildsen

The CPP48WBLY is a blank 48-port Mini-Com chassis — that modular blank design is exactly why I recommend it for security infrastructure buildouts where the final mix of Cat6A copper drops and fiber backbone connections isn't locked in at the time rack furniture is installed. You spec the chassis now, order modules as the horizontal cabling is confirmed, and field-install without touching the panel's rack position.

Technical Highlights:

• 48 ports / 2RU (88.13mm): 24 ports per rack unit is solid density for a shared IDF rack — leaves space for the 24- or 48-port PoE switch and 1RU cable managers without moving to a second rack enclosure.
• Front-access chassis: Module swapping, jack replacement, and re-labeling all happen from the front face. In a live head-end where rear cable trough is fully dressed, this is the difference between a 5-minute port swap and a 45-minute cable re-dress.
• CRS construction at 482.6mm width: Cold-rolled steel holds dimensional stability across both 19-inch and 23-inch rack mounting configurations — the same chassis installs in either without adapting the panel itself, just the rack ears.

Deployment Considerations:

• The CPP48WBLY ships without modules — budget and lead-time for Mini-Com™ keystone jacks separately. In a phased buildout, this is an advantage; in a hard deadline install, confirm module stock before scheduling rack termination day.
• No integrated cable management is included. For any deployment running 24+ patch cables off this panel, plan for a dedicated 1RU or 2RU horizontal cable manager in the same rack. Skipping it in a 48-port run creates congestion that makes front-access irrelevant in practice.

For a multi-IDF enterprise security deployment — say, a campus with 4–6 IDFs each terminating 24–48 IP camera drops plus access control and data — the CPP48WBLY's modular flexibility and front-access serviceability make it the right chassis to standardize on across all closets, especially when the horizontal cable category may vary between buildings.
