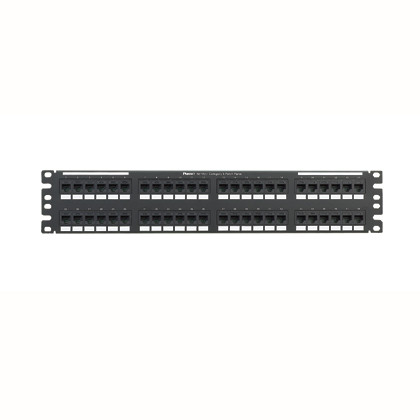

Panduit NK6PPG48Y 48-Port Cat6 Punchdown Patch Panel 2U
Overview
The Panduit NK6PPG48Y is a 48-port Cat 6 flat punchdown keystone patch panel from the NetKey® line — a workhorse termination point for structured cabling installations where density, standards compliance, and PoE headroom all matter. At 2U (88.1 mm) in a standard 19-inch rack footprint, it terminates 4-pair, 22–26 AWG, 100-ohm twisted pair cable and brings all 48 ports into a clean RJ45 interface ready for patch cord deployment. This is the panel you specify when you need Cat 6 performance validated to 250 MHz swept frequencies, not just nominal ratings — important in environments running high-density IP surveillance, access control readers, or PoE-powered devices where marginal cabling performance costs you troubleshooting hours later.
For integrators building out network infrastructure in commercial or enterprise environments, the NK6PPG48Y fits naturally into any Panduit structured cabling deployment alongside patch cords, keystone jacks, and cable management accessories. It ships as a single panel unit with a carton quantity of 10 for volume installations.
Key Features
- 48-Port Density in 2U: Forty-eight Cat 6 ports in 3.47 inches of rack height means you're terminating a full 48-run home run in two rack units — leaving room in a standard 12U or 24U wall cabinet for switches, power distribution, and cable management without sacrificing density.
- Cat 6 Performance to 250 MHz (TIA/EIA-568-C.2 and ISO 11801 Class E): The panel meets both TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz — not just component-level, but full channel compliance. That matters when the downstream switch is a managed PoE unit feeding cameras or access control panels: marginal channel performance at 100 MHz causes intermittent link drops that are hard to diagnose.
- PoE++ (802.3bt Type 3 and Type 4) Support: The NK6PPG48Y is rated to support IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 PoE applications. 802.3bt Type 4 delivers up to 90W per port — meaning you can run high-wattage PTZ cameras, multi-sensor panoramic units, or PoE-powered access control panels through this panel without thermal or signal integrity concerns. This is a real differentiator versus lower-rated Cat 5e panels on high-density PoE switch deployments.
- Punchdown Termination (22–26 AWG): Accepts 4-pair solid or stranded twisted pair in the 22–26 AWG range, covering essentially all commercial-grade Cat 6 bulk cable. Punchdown termination is faster and more consistent than field-terminating RJ45 plugs on each run, especially across 48 ports — one technician can terminate a full panel in a fraction of the time of plug termination.
- Fits 19-Inch and 23-Inch Racks: At 482.6 mm (19 inches) wide, the panel mounts directly to standard 19-inch EIA racks and enclosures. It also accommodates 23-inch rack installations — useful in telecom-legacy environments or older IDFs where non-standard rack widths are still in service.
- Cold-Rolled Steel (CRS) Construction: The steel chassis holds its shape under cable pull tension and won't flex when you're dressing and fastening 48 runs simultaneously. Plastic panels deform over time under cable weight — CRS doesn't.
- RoHS Compliant: Meets RoHS requirements, which matters for enterprise procurement policies and projects with environmental compliance requirements (LEED, government contracts, EU installations).
- UL 1863 Approved: UL listing under the communications circuit accessories standard confirms the panel has been independently tested for fire and electrical safety — a requirement on many commercial construction projects and for AHJ sign-off.
- ANSI/TIA-1096A (FCC Part 68) and IEC 60603-7 Compliance: Meets the plug/jack interface standard for RJ45 connectivity and the relevant FCC interconnect requirements, covering both domestic and international deployment scenarios.
Integration and Compatibility
The NK6PPG48Y is designed to integrate with Cat 6 patch panel ecosystems using standard 110-style punchdown tools. The RJ45 interface is compatible with any TIA/EIA-568-compliant Cat 6 or Cat 5e patch cord. For IP security deployments, pair this panel with a managed PoE network switch capable of 802.3bt output — the panel's 802.3bt Type 4 rating ensures it won't be the bottleneck in a high-wattage PoE chain. It terminates directly to horizontal cable runs from IP cameras, access control readers, intercoms, and workstations without any intermediate adapters. The NetKey® product line from Panduit's structured cabling catalog includes compatible keystone jacks, face plates, and cable management — useful when specifying a complete end-to-end structured cabling cable management solution from a single manufacturer.
Frequently Asked Questions
Q: What cable types and gauges does the NK6PPG48Y accept?
A: The NK6PPG48Y terminates 4-pair, 22–26 AWG, 100-ohm unshielded twisted pair cable — covering the full range of commercial Cat 6 horizontal cabling. It does not support coax, fiber, or shielded STP/FTP cable.
Q: Is the NK6PPG48Y rated for PoE++ (802.3bt) applications?
A: Yes. The panel explicitly supports IEEE 802.3af (15.4W), 802.3at (30W), and proposed 802.3bt Type 3 and Type 4 PoE applications — up to 90W per port on Type 4. This makes it suitable for high-wattage PoE devices including PTZ cameras, multi-sensor units, and PoE-powered access control hardware.
Q: Does the NK6PPG48Y fit a standard 19-inch rack?
A: Yes — it mounts to both 19-inch and 23-inch racks. The panel is 19 inches (482.6 mm) wide and occupies 2U (3.47 inches / 88.1 mm) of rack height.
Q: What standards does the NK6PPG48Y meet?
A: The panel meets TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz. It also meets ANSI/TIA-568-C.2 Cat 6 component requirements, ANSI/TIA-1096A (FCC Part 68), IEC 60603-7, is UL 1863 approved, and is RoHS compliant.
Q: What tool is required to terminate cable on the NK6PPG48Y?
A: Termination requires a standard 110-style punchdown tool, which is not included with the panel. Panduit and most structured cabling vendors offer compatible punchdown tools separately.
Q: How many panels come in a carton?
A: Each carton contains 10 panels. The NK6PPG48Y ships as a single unit (package quantity: 1), so you can order individual panels or full cartons of 10 for large-scale rollouts.
The NK6PPG48Y is a panel I reach for specifically when the downstream switch is going to push 802.3bt Type 4 PoE — the explicit rating for 90W-per-port applications is something a lot of commodity Cat 6 panels don't carry, and it matters when you're running a dense IP camera deployment or mixing PTZ cameras with access control hardware on the same IDF. The swept-frequency validation to 250 MHz at the channel level (not just component) gives you confidence that the panel isn't the weak link in a link that needs to perform day two and year five.
Technical Highlights:
- 250 MHz channel compliance (TIA/EIA-568-C.2 + ISO 11801 Class E): Full channel-level validation — not just component spec — means the panel has been tested as part of a complete link, not in isolation. In high-density PoE environments, this distinction matters for marginal installations.
- 802.3bt Type 3 and Type 4 PoE support: The NK6PPG48Y is rated for Type 4 at up to 90W per port — enough headroom for any current-generation PoE security device, including high-power PTZ cameras and multi-head panoramic units.
- 22–26 AWG acceptance range: Broad gauge tolerance means you're not locked into a specific cable spec. Whether the installed plant uses 23 AWG solid or 24 AWG stranded, the panel handles it without adapter hardware.
Deployment Considerations:
- Termination requires a 110-style punchdown tool — not included. Factor this into your kit list for field techs. Using the wrong blade type (66 vs 110) will damage the IDC contacts and degrade insertion loss performance.
- The panel is 2U, not 1U — verify rack space in smaller wall-mount enclosures before specifying. A 12U IDF with a 24-port switch, patch panel, and cable manager may be tighter than it looks on paper if the switch is also 2U.
This panel is a natural fit for commercial surveillance IDFs where a managed 802.3bt PoE switch feeds a mix of fixed and PTZ IP cameras — the full 250 MHz channel rating and PoE++ support cover both current hardware and anything the next equipment refresh brings in.
