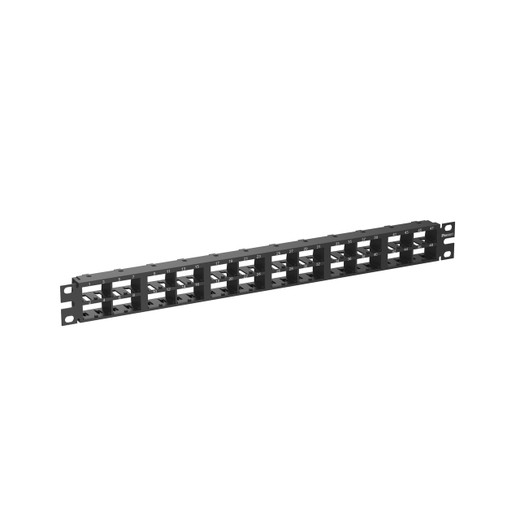

Panduit CPP48HDVNSWBL 48-Port Modular High-Density Patch Panel
Overview
The Panduit CPP48HDVNSWBL is a 48-port, 1U modular patch panel from Panduit's Pan-Net® copper cabling line, built for structured cabling installations where port density and rack economy matter. Fitting both 19-inch and 23-inch racks and enclosures, it accepts 48 Mini-Com™ modules in a single rack unit — giving you a full 48-port copper termination block without eating into the adjacent space you need for active gear. If you're provisioning a new IDF closet or consolidating a patching layer in a data center or enterprise campus, the CPP48HDVNSWBL is worth a close look.
The panel ships without modules, so you select Mini-Com™ inserts matched to your cabling standard — Cat 5e, Cat 6, Cat 6A, or specialty formats. That modularity is the core value here: swap a damaged port in the field without pulling cable or replacing the entire panel, and mix keystone types in the same chassis if your infrastructure demands it.
Cold-rolled steel (CRS) construction keeps the chassis rigid under cable load, and the black finish blends into standard equipment installations without standing out. Pre-printed vertical numbering on the face speeds initial patching and reduces documentation errors — each port is identifiable at a glance, which matters when you're working in a dense rack at 2 AM during a cabling push.
Key Features
- 48 Ports in 1U (19" × 1.72" chassis): Packing 48 Mini-Com™ module slots into a single rack unit means you can terminate an entire 48-port switch uplink block without wasting a second U. At 1.72 inches tall (43.68 mm), the panel leaves room for cable management panels and active equipment in tight cabinet layouts — a real consideration in high-density IDF builds.
- Dual 19"/23" Rack Compatibility: The 19-inch-wide (482.6 mm) panel mounts natively in standard 19-inch equipment racks and enclosures. Many deployments mix 19-inch and 23-inch cabinets across floors or buildings — this panel fits both without adapter hardware, simplifying procurement across multi-site rollouts.
- Modular Mini-Com™ Module System: The chassis accepts Panduit Mini-Com™ snap-in modules, which cover the full range of copper and specialty termination types. Modular design means a single damaged port does not require re-terminating the panel — pull the bad module, insert a replacement, re-patch. In high-uptime environments, this is a measurable time saver over fixed IDC-style panels.
- Cold-Rolled Steel (CRS) Construction: CRS provides the structural stiffness needed to keep the panel level and true under the weight of 48 patch cables. In a loaded rack, a flexing panel creates cable management problems and risks loosened modules — the steel chassis prevents both.
- Pre-Printed Vertical Port Numbering: Factory-applied numbering eliminates the ad hoc label-tape numbering that creates readability problems in dim spaces. Clean, consistent port identification reduces mis-patching errors during moves, adds, and changes — and survives the cleaning cycles that dissolve adhesive labels over time.
- RoHS-Compliant Materials: RoHS compliance is a procurement requirement for most EU-bound projects and is increasingly specified in US public-sector and healthcare contracts. The CPP48HDVNSWBL meets that threshold without requiring a variance or substitution at project closeout.
- Pan-Net® Product Line: As part of Panduit's Pan-Net® structured cabling catalog, the CPP48HDVNSWBL integrates with Panduit's broader copper patch panel and connectivity ecosystem — matching hardware for cable management, faceplates, and keystone modules sourced from a single vendor simplifies warranty tracking and reduces compatibility friction.
Integration & Compatibility
The CPP48HDVNSWBL is module-agnostic within the Mini-Com™ format — it does not ship with modules, which is by design. Select Mini-Com™ copper modules matched to your cabling category (Cat 6A for 10GbE, Cat 6 for standard 1GbE runs, Cat 5e for legacy or low-bandwidth drops). Specialty Mini-Com™ inserts including fiber, coax, and multimedia types can be installed in the same chassis if your installation requires mixed-media patching in a single panel face.
The panel fits standard 19-inch network rack cabinets and 23-inch telecom enclosures, and pairs naturally with a PoE network switch one rack unit above or below for clean horizontal cable routing. Plan cable management panels (horizontal or vertical) ahead of the panel to avoid bend-radius violations once all 48 cables are dressed.
For structured cabling planning across a multi-closet deployment, consult a structured cabling and PoE planning guide to size patch panel counts against switch port density and cable run requirements before procurement.
Frequently Asked Questions
Q: Does the CPP48HDVNSWBL come with Mini-Com™ modules included?
A: No. The CPP48HDVNSWBL ships as a bare chassis with 48 empty module slots. Mini-Com™ keystone modules must be ordered separately and selected to match your cabling category and application.
Q: What rack sizes does the CPP48HDVNSWBL fit?
A: The panel is 19 inches wide (482.6 mm) and mounts in both standard 19-inch and 23-inch equipment racks and cabinets. No adapter bracket is required for either size.
Q: How much rack space does the CPP48HDVNSWBL occupy?
A: It occupies 1 rack unit (1U), measuring 1.72 inches (43.68 mm) in height. This gives you 48 ports in a single U, which is the highest density available in a standard 1U modular patch panel form factor.
Q: Is the CPP48HDVNSWBL RoHS compliant?
A: Yes. The CPP48HDVNSWBL is RoHS-compatible, making it suitable for projects with environmental compliance requirements in the EU and other jurisdictions that adopt RoHS standards.
Q: What material is the CPP48HDVNSWBL chassis made from?
A: The chassis is cold-rolled steel (CRS), providing structural rigidity under cable load without adding excessive weight to the rack.
Q: Can the CPP48HDVNSWBL support mixed cabling types in the same panel?
A: Yes. Because it accepts any Mini-Com™ snap-in module, you can install different module types — including copper, fiber, or coax — in the same chassis, provided the appropriate Mini-Com™ module for each type is used.
The CPP48HDVNSWBL earns its place in high-density IDF builds precisely because it delivers 48 Mini-Com™ slots in a single 1U chassis — 1.72 inches of rack space that would otherwise require two or more panels if you spec'd lower-density hardware. For integrators running tight rack layouts with 1U patch panels above every 48-port switch, that directly determines whether a 12U wall cabinet works or you're upsizing to an 18U enclosure.
Technical Highlights:
- 1U / 48-Port Density: At 1.72 inches (43.68 mm) tall and 19 inches (482.6 mm) wide, this panel terminates a full 48-port copper layer in the minimum possible rack height — freeing vertical space for active equipment, cable management, or future growth.
- CRS Chassis: Cold-rolled steel construction maintains chassis flatness under the lateral cable pull of 48 dressed patch cords. A steel chassis also holds module retention clips at spec torque — plastic-framed panels at this port count can deform under load, causing intermittent module seating.
- RoHS Compliance: RoHS-compatible materials check the box on EU Directive 2011/65/EU and are increasingly referenced in US government and healthcare bid specs. No separate material declaration required at project closeout.
Deployment Considerations:
- The panel ships with zero modules — build your Mini-Com™ module order alongside this panel, not as an afterthought. At 48 ports per panel, forgetting modules delays commissioning by at least a day on most distributed-site installs.
- Pre-printed vertical numbering is fixed to the panel face and does not accommodate custom port-labeling schemes used by some cable contractors. If your documentation standard requires horizontal or alphanumeric port IDs, plan supplemental labeling strips before the cabling team arrives.
For enterprise campus IDFs deploying 48-port PoE switches with structured Cat 6A horizontal cabling, the CPP48HDVNSWBL delivers the port count, rack efficiency, and long-term serviceability (per-module replacement, no full panel re-termination) that high-change-rate environments demand.
