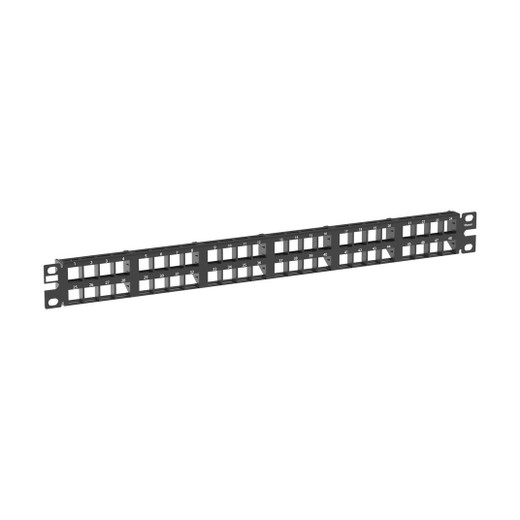

Panduit NKPP48HDY 48-Port High-Density Flush Mount Patch Panel
Overview
The Panduit NKPP48HDY is a 48-port, 1RU modular patch panel from the Panduit NetKey line designed for high-density structured cabling in enterprise data closets, IDF rooms, and security infrastructure racks. It accepts 48 front-accessible Keystone modules in a single rack unit — meaning you spend no additional RU on passive copper termination. It mounts in both 19-inch and 23-inch racks and enclosures without adapters, finished in black cold-rolled steel.
Key Features
- 48 Ports in 1RU (High-Density Layout): Fitting 48 Keystone modules into a single rack unit cuts passive panel real estate in half compared to standard 24-port 1RU panels. In a fully loaded patch panel row, that density difference translates to meaningful rack space recovered for active gear.
- Modular Keystone Design: Each port accepts field-installable Keystone jacks — swap a damaged jack without replacing the panel. This also lets you mix Cat5e, Cat6, Cat6A, or fiber modules in the same panel as your cabling plant evolves, which matters in phased buildouts.
- Front-Access Architecture: All 48 ports are front-facing, so technicians can patch and re-patch without reaching behind the panel. In dense, fully loaded racks where rear access is restricted, this is a real time saver during MACs (moves, adds, changes).
- 19-Inch and 23-Inch Rack Compatibility: Fits both standard EIA 19" racks and legacy 23" telco frames — useful in mixed-vintage environments where both rack types coexist in the same room. No separate adapter brackets required.
- Cold-Rolled Steel (CRS) Construction: CRS provides the structural rigidity needed to support 48 loaded Keystone modules and repeated plug/unplug cycles without chassis flex. More durable than stamped aluminum panels under daily patching loads.
- RoHS-Compliant: Meets RoHS material restrictions — relevant for enterprise procurement policies requiring hazardous-substance compliance documentation and for deployments in regions with regulatory requirements.
- Black Finish: Standard black finish blends with typical rack equipment aesthetics and is consistent across the network infrastructure in most commercial installations.
Integration & Compatibility
The NKPP48HDY is part of Panduit's NetKey modular system. It pairs with Panduit NetKey Keystone jacks across copper categories, and integrates into standard 19" or 23" equipment racks and open-frame relay racks. For high-port-count runs, pair with a structured cabling patch cord management strategy to keep the front face organized at 48-port density. Overall panel dimensions are 19" W × 1.73" H (482.6mm × 43.9mm), confirming true 1RU fit per EIA-310 standards.
Frequently Asked Questions
Q: What rack sizes does the NKPP48HDY fit?
A: It mounts in both standard 19-inch and 23-inch racks and enclosures — no adapter brackets required for either size.
Q: How many rack units does the NKPP48HDY occupy?
A: One rack unit (1RU). The panel height is 1.73 inches (43.9mm), which is a standard 1U form factor.
Q: What type of modules does the NKPP48HDY accept?
A: It accepts standard Keystone modules (unshielded applications). You can field-populate with Panduit NetKey Keystone jacks of your chosen copper category.
Q: Is the NKPP48HDY RoHS compliant?
A: Yes, the NKPP48HDY meets RoHS compliance standards as indicated in the product specifications.
Q: What is the panel construction material?
A: Cold-rolled steel (CRS), providing rigidity for high-density patching environments.
The NKPP48HDY is the panel I reach for when a customer is consolidating a dense IDF and needs to maximize port count without burning rack space. Fitting 48 Keystone ports into a single 1.73-inch RU is a meaningful density win — in a 42U rack already crowded with switches and UPS gear, recovering that second RU back from passive patching has real consequences for the design.
Technical Highlights:
- 48-Port, 1RU Density: At 1.73" tall, this panel delivers double the port density of a standard 24-port 1RU panel — critical when rack real estate is constrained and you're running structured cabling to 48+ endpoints from a single closet.
- CRS Chassis: Cold-rolled steel holds up under the mechanical stress of daily patching at 48 ports. Flex and chassis creep are failure modes on cheaper stamped-metal panels once all ports are loaded with heavy-gauge patch cords.
- Modular Keystone Architecture: Individual port replacement without panel swap keeps long-term maintenance cost low — a single damaged port doesn't justify pulling and re-terminating a full 48-port panel.
Deployment Considerations:
- At 48 ports in 1RU, cable management in front of this panel is dense. Plan a 1U or 2U horizontal cable manager directly above or below — without it, you'll fight patch cord congestion on every MAC visit.
- The panel supports unshielded Keystone modules only per the product specification. If your cabling plant uses shielded (STP/FTP) infrastructure, verify Keystone jack compatibility before ordering — shielded applications may require a different panel variant.
This panel is the right call for enterprise IDF buildouts, security camera network closets, and any structured cabling project where port density per RU is the governing constraint. It is not the right call for shielded cabling environments or installations where rear-termination panels are preferred for aesthetic or standards reasons.
