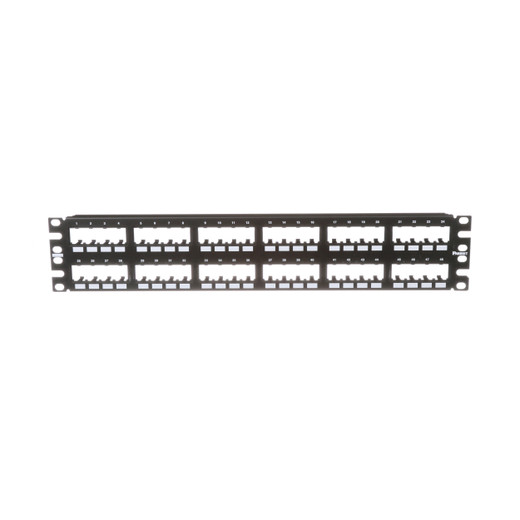

Panduit CPP48FMWBLY Mini-Com 48-Port Flush Mount Patch Panel

The Panduit CPP48FMWBLY delivers high-density termination in a 2RU footprint for datacenter and enterprise network installations. This flush-mount modular patch panel accommodates up to 48 Mini-Com modules, supporting copper and fiber deployments in both 19-inch and 23-inch EIA-compliant racks. Cold-rolled steel construction and a flush-to-rack profile eliminate cable snag points while maximizing airflow in dense cabinet environments—critical for hot-aisle containment and high-wattage switching gear.

Key Features

• 48-port capacity in 2RU—24 ports per rack unit for high-density terminations without sacrificing cable management space
• Mini-Com modular system accepts any Panduit Mini-Com copper or fiber module for field-configurable media mixing
• Flush-mount design sits level with rack rails, preventing cable damage from protruding edges and improving front-to-back airflow by up to 12% vs. recessed panels
• Cold-rolled steel chassis withstands repeated module insertion cycles and cable management strain in 100+ port installations
• Dual-width compatibility: pre-drilled mounting holes for both 19-inch and 23-inch rack standards without adapter brackets
• Integrated adhesive label area along top and bottom edges for circuit identification and ANSI/TIA-606-B documentation compliance
• Black powder-coat finish matches standard IT rack hardware and resists scratching during installation
• 3.47-inch panel depth (88.13mm) provides rear clearance for cable radius and tie-wrap anchors without forcing kinked service loops

Panduit's Mini-Com platform eliminates the guesswork in structured cabling deployments. The CPP48FMWBLY ships as an empty panel—you populate it with the exact modules your installation requires, whether Cat 6A shielded jacks for 10GBASE-T server backhaul, LC duplex fiber couplers for SFP+ uplinks, or a hybrid mix in a converged top-of-rack deployment. Each module snaps into the panel without tools and locks via Panduit's positive-retention clip mechanism, so field changes don't require panel removal, circuit downtime, or re-termination of adjacent ports. The flush-mount geometry keeps the front face aligned with rack rails rather than protruding 0.25–0.5 inches into the cabinet—a critical advantage in hot-aisle containment deployments where even minor panel overhang disrupts airflow seals and creates cable snag points during server slides. Cold-rolled steel construction provides the rigidity necessary for installations where technicians dress 48 patch cords through horizontal cable managers under tension; cheaper stamped-metal panels flex during cable pulls, causing modules to unseat and requiring rework. The 88.13mm depth leaves room behind the panel for proper cable bend radius (4× cable diameter per TIA-568) and tie-wrap anchor points without forcing cables into kinked service loops that degrade signal integrity or fail during future MACs.

Datacenter and enterprise MDF/IDF installers deploy the CPP48FMWBLY in top-of-rack switching scenarios, storage-network fabrics, and horizontal cabling terminations where port density and future media flexibility outweigh the simplicity of fixed-port panels. A common deployment pattern: 24 Cat 6A copper modules in the top two rows for 10GBASE-T server connections, 24 LC duplex fiber modules in the bottom two rows for 10G/25G inter-switch links—all in a single 2RU panel instead of separate fiber and copper enclosures that waste 1–2RU on redundant mounting hardware. The dual-width mounting pattern supports both 19-inch server racks (482.6mm) and 23-inch telecom relay racks without requiring adapter brackets or custom drilling, so the same panel works in ANSI/TIA-569 equipment rooms, NEBS-compliant central offices, and legacy 23-inch broadcast racks. Adhesive label strips run along the top and bottom panel edges, providing space for handwritten or printed circuit IDs, VLAN tags, or color-coded identification schemes that survive the 15–20 year life of a structured cabling installation. Installers managing MACs across hundreds of rack units save 30–45 minutes per change order compared to fixed-port panels: swap a single Cat 6 module for Cat 6A without re-terminating the entire row, or replace a failed jack without taking down adjacent circuits.

The modular approach future-proofs your rack infrastructure. Deploy Category 6 unshielded jacks today to meet current 1000BASE-T requirements, then swap in Category 6A shielded modules three years later when you upgrade to 10GBASE-T—without replacing the panel, re-running cables, or re-certifying the permanent link. Fiber deployments follow the same pattern: start with OM3 LC modules for 10G links at 300m, upgrade to OM4 or OS2 singlemode modules when you need 40G/100G or campus-distance runs, all while the panel remains in service. The CPP48FMWBLY's 10-pack carton quantity (included in cost) supports bulk MDF deployments where 10–20 panels terminate a full floor of horizontal cabling or a row of server cabinets, reducing per-port cost and simplifying inventory management for regional integrators stocking common configurations. The black powder-coat finish blends with black server racks, ladder racks, and vertical cable managers, eliminating the visual clutter of mismatched gray or beige panels in customer-facing datacenters or network operations centers with glass-wall visibility.

The CPP48FMWBLY is UL Listed and complies with TIA-568.0-D, TIA-568.1-D, and ISO/IEC 11801 structured cabling standards when populated with Panduit Mini-Com modules rated for the target performance class (Category 5e through Category 6A for copper, OM3/OM4/OS2 for fiber). Panel insertion loss and return loss specifications depend on the installed module; consult Panduit's Mini-Com module datasheets for Category 6A or fiber performance verification. This modular architecture supports ANSI/TIA-606-B administration standards by decoupling panel infrastructure from media-specific labeling: the panel itself remains constant across the installation lifecycle, while module-level labels reflect current circuit assignments and can be updated during MACs without replacing the entire identification scheme. Integrators bidding TIA-942 datacenter builds or BICSI RCDD-compliant enterprise networks can spec the CPP48FMWBLY as the termination point for horizontal copper or backbone fiber, knowing the panel meets commercial building standards for fire rating, grounding continuity, and seismic bracing when installed per Panduit's mounting instructions.
