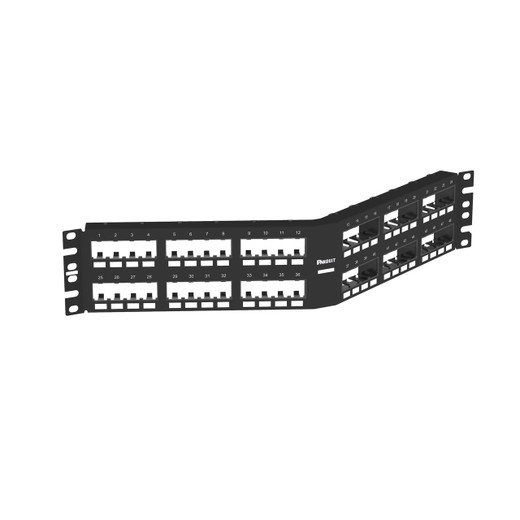

Panduit CPPA48FMWBLY Pan-Net 48-Port Flush-Mount Angled Patch Panel
The Panduit CPPA48FMWBLY delivers high-density structured cabling termination in a 2U angled form factor engineered for installers managing congested rack environments. This flush-mount modular patch panel accepts up to 48 Mini-Com modules, letting you field-configure port types—copper keystone jacks, fiber adapters, or blank inserts—on demand without pre-committing to a fixed media type. The 35-degree angled design reduces cable bend radius stress at the termination point and simplifies moves/adds/changes in densely populated racks where vertical cable managers run tight to the panel face. Cold-rolled steel construction and black powder-coat finish match standard rack aesthetics while standing up to repeated plug cycling across thousands of connection events.
Key Features
- 48-port modular design accommodates any Mini-Com module (RJ45 copper, LC/SC fiber, or blank) for mixed-media structured cabling
- Angled port orientation eases cable bend radius compliance and improves accessibility in shallow-depth racks or dense vertical cable runs
- Flush-mount form factor aligns panel face with rack rails, reclaiming usable depth for switches and servers in constrained enclosures
- 2U rack height delivers 24 ports per rack unit, balancing density with serviceability for IDF/MDF and datacenter deployments
- Cold-rolled steel chassis withstands repeated module insertion/removal cycles and maintains dimensional stability under load
- Fits standard 19-inch EIA-310-D racks and 584 mm metric enclosures without adapter brackets or custom mounting hardware
- Label-ready surface accepts adhesive port identification labels for circuit documentation and maintenance handoff
The CPPA48FMWBLY's modular architecture solves a recurring problem for integrators building multi-tenant office buildings, campus networks, or phased datacenter expansions: you can install the panel frame during rough-in, then populate modules port-by-port as circuits come online. This decouples infrastructure installation from end-device deployment schedules and eliminates the waste of pre-loaded panels where 30% of ports sit unused for months. The angled port orientation—often specified for vertical cable managers—ensures patch cords exit the jack at a natural angle rather than forcing a 90-degree bend immediately at the termination point. That compliance margin matters when you're running Category 6A cables with larger conductors and tighter bend-radius limits, or when rack depth constraints push vertical managers within an inch of the panel face. Flush-mount construction reclaims approximately 1.75 inches of usable rack depth compared to surface-mount panels that protrude forward of the rail line, a critical advantage in shallow 18-inch or 24-inch network racks where every millimeter counts for airflow clearance and switch placement.
Cold-rolled steel construction delivers the rigidity needed to prevent panel sag when fully populated with 48 jacks and 48 terminated cables—a load condition that can exceed 15 pounds cantilevered off the rack rail. The black powder-coat finish resists scratching during installation and matches the standard aesthetic of enclosed server cabinets and open-frame network racks. Module retention tabs inside each port opening lock Mini-Com modules in place with a positive click, preventing accidental dislodgement during patch cord insertion or cable management adjustments. The panel ships unpopulated, giving you complete control over module selection: deploy all copper for horizontal cabling runs, mix in fiber uplink positions for backbone connections, or leave positions blank in phases where future expansion is planned but not yet funded. Standard 19-inch mounting hole spacing on 0.625-inch centers ensures compatibility with square-hole, round-hole, and threaded racks without requiring cage nuts, speed clips, or other fastener variations.
Field deployment contexts where the CPPA48FMWBLY excels include intermediate distribution frame (IDF) closets serving 20–40 office drops per floor, main distribution frame (MDF) rooms aggregating building-wide horizontal cabling, and top-of-rack positions in datacenter server rows where structured cabling hands off to switch infrastructure. The 2U form factor provides enough port density to handle a full floor's worth of drops in a building with 10,000-square-foot floorplates and ~1 drop per 200 square feet, while leaving vertical space for cable management, power distribution, and active network gear. Angled orientation pairs well with vertical wire management channels mounted directly adjacent to the panel—cables exit the jack at an angle that naturally feeds into the manager's throat without requiring installers to manually form a bend immediately at the termination point. Flush-mount construction becomes critical in environments where rear-access service aisles or back-to-back rack rows demand every inch of clearance: protruding panels that extend forward of the rail line can block aisle width below code-required minimums or interfere with hot-aisle containment curtains in datacenter environments.
The Pan-Net sub-brand designation places this panel within Panduit's modular copper and fiber connectivity family, ensuring module compatibility across the entire Mini-Com ecosystem—over 150 module SKUs spanning copper keystone jacks (Cat5e, Cat6, Cat6A in shielded and unshielded variants), fiber adapters (LC, SC, ST, MTRJ in simplex and duplex configurations), A/V inserts (HDMI, USB, 3.5 mm audio), and specialty modules (BNC, F-connector, blank). Competitive cross-references in the spec data indicate direct form-fit-function equivalence with Leviton, Siemon, and Hubbell angled modular panels, simplifying bid substitutions when project specs call out a competitor part number but procurement teams need alternates. The 10-unit carton quantity supports multi-floor projects where purchasing in bulk reduces per-unit cost and ensures consistent inventory for phased rollouts across a campus or regional office portfolio.
