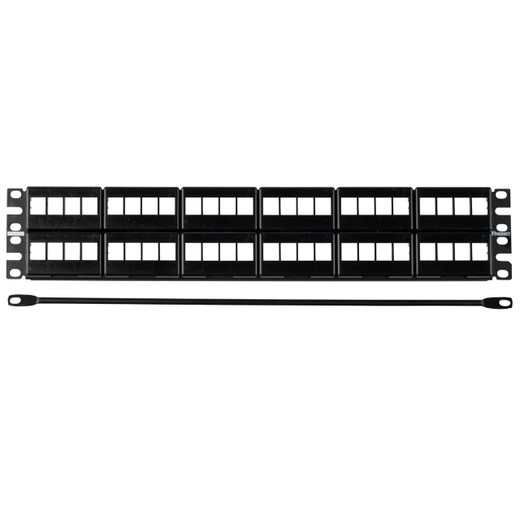

Panduit NKFP48KSRBSY NetKey 48-Port Front-Access Patch Panel

The Panduit NKFP48KSRBSY is a 2U modular patch panel designed for high-density copper terminations in commercial network deployments. This front-access design accepts 48 Keystone modules for unshielded twisted-pair applications, fitting standard 19" and 23" equipment racks. The integrated strain relief bar (SRB) secures cable bundles and prevents bend-radius violations at the termination point. Built from cold-rolled steel with a black finish, this panel ships with adhesive label strips for port identification and is RoHS compliant. It addresses the cable-management and accessibility challenges faced by network installers working in confined rack environments where rear-panel access is limited or requires service interruption.

Key Features

• 48-port capacity in 2 rack units for high-density patching without wasting vertical space
• Front-access architecture allows adds, moves, and changes without disturbing rear cabling or adjacent equipment
• Modular Keystone design accepts any Panduit NetKey jack module for Cat5e, Cat6, or Cat6A terminations
• Integrated strain relief bar secures cable bundles and maintains proper bend radius per TIA-568 standards
• Cold-rolled steel construction with black finish for durability in high-cycle patching environments
• Includes adhesive label strips for clear port identification and documentation compliance
• Universal rack compatibility: mounts in both 19" and 23" racks with standard #12-24 cage nuts
• RoHS compliant for installations subject to environmental material restrictions

High-port-density patch panels like the NKFP48KSRBSY solve a specific problem in datacenter and telecom-room buildouts: you need maximum termination capacity without burning rack units. At 48 ports in 2U, this panel delivers the same density as three traditional 1U/16-port designs but eliminates two sets of mounting hardware and reduces the vertical cable-routing burden. The front-access layout is critical in scenarios where rear-side cabling is fixed infrastructure — backbone trunks, vertical risers, or permanent cross-connects — and you need to reterminate the front-side patch cords for end-user moves without disturbing the backbone. The modular Keystone design means you buy the panel once and populate it with the specific jack modules your deployment requires: Cat6 RJ45s for most drops, Cat6A for 10GBASE-T links, or even fiber Keystones if you need a mixed-media consolidation point. The strain relief bar is not decorative: it's a TIA-568-C.1 compliance feature. Without proper strain relief, cable weight and accidental tugs can unseat conductors inside the IDC terminals, causing intermittent link failures that are expensive to troubleshoot. The SRB clamps the cable jacket securely behind the termination, transferring mechanical stress away from the IDC connection. Cold-rolled steel construction matters in high-cycle environments — installations where patch cords are swapped weekly or monthly. Cheaper plastic panels crack at the mounting ears or warp under the load of 48 filled jacks. Steel handles the weight and the mounting torque without deformation.

This panel mounts in 2U (3.47" vertical height), which is the minimum physical envelope for 48 Keystone positions at standard spacing. The 19" width is EIA-310-D compliant, meaning it fits any standard 19" rack or cabinet with #12-24 threaded cage nuts or tapped holes. The 23" compatibility refers to the wider hole pattern found in some telecom frames; the panel ships with slotted mounting ears that accommodate both widths without requiring separate hardware kits. Front access is the deployment differentiator here. In a traditional rear-access panel, patching a new drop means reaching behind the rack, which often requires moving the rack away from the wall or climbing behind it in a cramped aisle. With front access, the patch cord terminates on the same side as the labeling, so a technician standing in the cold aisle can complete the move in seconds without a flashlight or contortionist skills. The adhesive label strips sit directly above the port rows, providing a write-on surface for room/jack IDs or VLAN tags. This is a practical time-saver during after-hours maintenance when you're working alone and can't afford to trace the wrong cable. The panel is black, which is the standard finish for commercial AV and datacenter racks; it blends with server chassis and switch faceplates, maintaining a clean visual front-of-rack appearance for installations where the rack is customer-facing or subject to audit walkthroughs.

The NKFP48KSRBSY is a consolidation point, not a performance bottleneck. Pair it with Panduit Cat6 or Cat6A Keystone jacks rated for the transmission class your horizontal cabling supports, and the panel itself introduces zero insertion loss — it's a passive pass-through. It's sold as a single unit (carton quantity 10 for bulk orders), and the Keystone modules are sold separately, allowing you to stock the panel and populate it on-site as your termination schedule dictates. This modular approach reduces upfront inventory cost and eliminates the waste of pre-loaded panels where half the jacks go unused. For installations requiring UL listing or TIA compliance documentation, verify that the Keystone modules you populate are also listed; the panel provides the mechanical platform, but the end-to-end channel certification depends on the jack module's transmission performance. This is a workhorse component for commercial integrators building structured cabling systems where cable management, labeling, and serviceability are the deciding factors in long-term operational cost.
