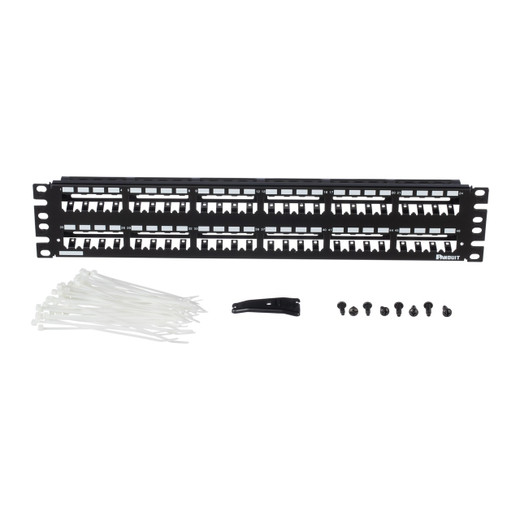

Panduit CP48WSBLY Mini-Com All-Metal 48-Port Patch Panel
The Panduit CP48WSBLY delivers 48-port shielded patching density in a 2RU footprint, engineered for enterprise IDF/MDF deployments where EMI suppression and grounding integrity can't be compromised. Built from stainless steel with integrated strain relief and bonding terminals, this flush-mount panel addresses the three pain points integrators face in high-density copper installations: cable management at scale, continuous ground paths for shielded twisted-pair systems, and rack space efficiency. Compatible with Panduit's Mini-Com shielded jack modules, the CP48WSBLY supports both 19-inch EIA and 23-inch telecom racks, giving you deployment flexibility across enterprise server rooms, carrier hotels, and industrial control networks. If your project spec calls for screened or foiled cable—10GBASE-T links, industrial Ethernet backbones, or any environment where radiated noise is a design constraint—this panel's all-metal construction and grounding architecture turn code requirements into installed reality.
Key Features
- 48-port capacity in 2RU form factor—24 ports per rack unit for maximum density in space-constrained telco rooms and wiring closets
- Stainless steel chassis with flat flush-mount design—eliminates paint chipping and corrosion common in powder-coated steel panels
- Integrated strain relief bar—secures cable jackets without aftermarket J-hooks or separate cable managers, reducing installation labor and maintaining bend-radius compliance at the termination point
- Built-in grounding terminals—provides code-compliant bonding points for shielded cable drain wires andfoil screens, required for TIA-568.2-D Category 6A shielded channel certification
- Universal rack compatibility—mounts to both 19-inch EIA-310-D equipment racks and 23-inch telecom relay racks without adapter brackets or re-tapping
- Labelable port areas and adhesive strip channels—supports wire-marker labeling, adhesive port labels, and Brady/Panduit label cassettes for MAC workflows in enterprise environments
- Accepts all Panduit Mini-Com shielded jack modules—field-configurable for Cat6A, Cat6, Cat5e, fiber, A/V, and USB connectivity as project requirements evolve
- RoHS compliant construction—meets European Union Directive 2011/65/EU and amendment 2015/863 for restricted substances in electrical equipment sold into EU markets or multinational corporate campuses
The CP48WSBLY's stainless steel construction solves the long-term durability problem inherent in painted steel panels. In environments with above-average humidity—basement telco rooms, coastal facilities, or any space where HVAC economizer cycles introduce outdoor air—powder-coated steel panels show edge rust and paint flaking within 36 months. This panel's through-body stainless construction eliminates that failure mode entirely. The flat flush-mount design keeps the front surface coplanar with rack rails, preventing cable snags during pulls and giving you a clean aesthetic in open-architecture racks or glass-door cabinets. Each port position accepts a standard Panduit Mini-Com module, which means you're not locked into a single media type at install time. Field techs can populate the panel with Cat6A shielded jacks for 10GBASE-T data drops, swap in LC fiber adapters for building backbone links, or mix in USB 3.0 modules for peripheral extension—all using the same panel real estate and mounting footprint.
The integrated strain relief bar runs the full width of the panel and provides tie-down points every 1.5 inches, letting you anchor cable bundles at the precise spacing required to avoid exceeding the 25-pound maximum pull tension spec for Cat6A cable. This matters in high-port-count deployments where you're dressing 48 individual cables into a 2RU space: without proper jacket support within six inches of the termination point, cable weight puts tensile load on the conductors inside the jack, degradging return loss and failing TIA link certification. The bar's integrated design eliminates the need for separate horizontal cable managers, saving 1RU of rack space per panel and reducing BOM cost on multi-rack projects. Grounding terminals on both sides of the panel provide code-compliant bonding points for shielded cable drain wires—critical for achieving the 360-degree shield continuity required in TIA-568.2-D Category 6A shielded channel testing. In industrial Ethernet applications (PROFINET, EtherNet/IP, Modbus TCP), proper shield grounding at both ends of the link is mandatory for EMI immunity, and this panel's built-in terminals make that connection field-verifiable during commissioning.
Deployment context: This panel is purpose-built for shielded twisted-pair infrastructures in enterprise, healthcare, and industrial facilities. If your building backbone is Cat6A S/FTP or F/UTP and you need to maintain shield continuity through the horizontal cross-connect, the CP48WSBLY gives you the grounding architecture to do it correctly. In hospital IT/medical telemetry networks, where MRI suites and imaging equipment generate RF fields that couple into unshielded cable, shielded horizontal links with grounded patch panels are the standard mitigation. In industrial plants running real-time Ethernet protocols over harsh factory floors—motor drives, VFDs, welding equipment—the shielded channel provides the 30+ dB of crosstalk suppression needed to keep deterministic control traffic jitter-free. The 19-inch and 23-inch mounting compatibility covers both enterprise IT environments (EIA racks in server rooms) and telco/carrier installations (23-inch NEBS relay racks in central offices), so this panel works across verticals. For integrators managing MAC rates in corporate campuses, the labelable port strips and adhesive-ready surface support whatever labeling scheme the client's DCIM or cable management database requires—no need to spec custom label holders or field-drill mounting holes for aftermarket identification systems.
The CP48WSBLY ships RoHS-compliant and UL/cUL recognized as part of Panduit's Pan-Net structured cabling system, which carries a 25-year application assurance when installed per manufacturer guidelines with Panduit cable, jacks, and patch cords. This panel directly addresses the NEC Article 800.100 bonding and grounding requirements for communications systems, providing accessible grounding terminals that let inspectors visually verify shield termination during rough-in and final walk-throughs. For projects governed by TIA-568 or ISO/IEC 11801 standards—healthcare EHR networks, finance trading floors, defense C4ISR installations—this panel's metal construction and integrated grounding eliminate the most common shielded-channel certification failure: poor or intermittent shield contact at the patch panel. If your Statement of Work calls out shielded copper, 10GBASE-T to the desktop, or alien crosstalk mitigation in high-density bundle environments, the CP48WSBLY is the field-proven termination platform that turns the design spec into a code-compliant, certifiable installation.
