StarTech RK4242BK24 42U 4-Post Enclosed Server Rack Cabinet

Overview

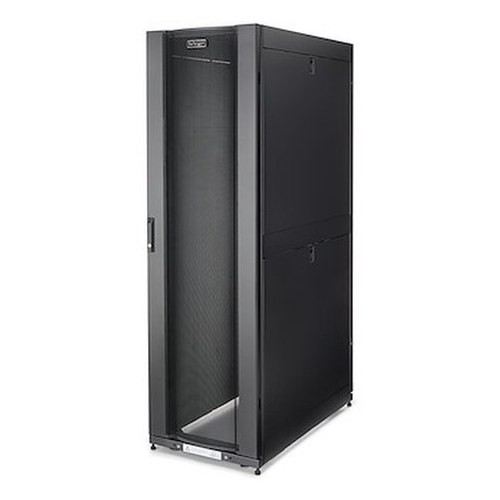

The StarTech RK4242BK24 is a 42U, 4-post enclosed rack cabinet built for data centers, server rooms, and network closets where load capacity and mounting flexibility both matter. It supports up to 3,307.5 lb (1,500 kg) stationary — enough headroom for fully loaded server rack configurations without worrying about weight thresholds — and accommodates equipment depths ranging from 5.2 in to 35.0 in, so everything from shallow patch panels to deep enterprise servers mounts cleanly in the same cabinet. If you're planning a mixed-depth rack build or expecting equipment changes over the lifecycle of the installation, that adjustable rail range eliminates the need to buy a second enclosure. EIA/ECA-310-E compliance means every 1.75-inch U space is positioned exactly where standard rackmount gear expects it — no fitment surprises on deployment day.

Key Features

• 3,307.5 lb (1,500 kg) Static Load Rating: At rest, this cabinet handles the weight of a fully populated enterprise rack — dense blade servers, UPS units, and patch infrastructure stacked together. The rolling capacity steps down to 2,315.2 lb (1,050 kg), which still covers the overwhelming majority of real-world rack moves during installation or reconfiguration.
• Adjustable Mounting Depth (5.2 in to 35.0 in): Rails adjust across a 29.8-inch range, letting you mount shallow 1U switches at the front and 30-inch-deep servers behind them in the same enclosure. This is the spec that makes mixed-vendor, mixed-depth environments workable without custom hardware.
• 42U Rack Height (6.4 ft / 2.0 m, 78.4 in with casters): Standard full-height footprint compatible with hot-aisle/cold-aisle containment systems and overhead cable management trays. At 78.4 inches with casters installed, confirm ceiling clearance before rolling into a low-ceiling server closet.
• Steel Mesh Front and Rear Doors: Mesh construction allows airflow through both doors without removing them — critical for maintaining positive airflow pressure in high-density deployments. You get physical security and ventilation simultaneously, eliminating the trade-off common with solid-door cabinets.
• Steel Side Panels: Solid steel sides contain airflow laterally, directing it front-to-back through the mesh doors rather than bleeding out the sides. In hot-aisle/cold-aisle setups, this containment directly impacts cooling efficiency and PUE.
• 23.6 in (60 cm) Internal Width: Standard 19-inch EIA rackmount equipment fits with adequate cable management clearance on both sides. The full 23.6-inch internal width accommodates standard vertical cable managers without squeezing cabling against mounted equipment.
• 41.4 in (105.2 cm) Internal Depth: With up to 35.0 inches of usable mounting depth available, the 41.4-inch internal depth provides rear cable management space even with deep equipment installed. That rear gap is where structured cabling and PDU mounting live — don't underestimate its value in a dense build.
• EIA/ECA-310-E Compliance: Industry-standard U spacing ensures any standard 1U, 2U, or 4U device mounts without shimming, adapter plates, or misaligned cage nuts. This is the baseline spec every rack integrator checks before committing to a cabinet.
• 5-Year Manufacturer Warranty: A 5-year coverage term on a passive mechanical enclosure reflects the expected service life of the infrastructure it houses — relevant when procurement teams are evaluating total cost of ownership against a 5- to 7-year refresh cycle.

Integration and Compatibility

The RK4242BK24 follows EIA/ECA-310-E standard rail spacing, making it directly compatible with standard rackmount equipment from any major vendor — networking gear, servers, KVM switches, patch panels, power distribution units, and network video recorders. The adjustable 4-post rail system accommodates both 2-post and 4-post mounting patterns. For security-focused deployments, NVR appliances, video management servers, and network switches supporting PoE infrastructure all mount without adapters. Plan cable routing through the rear mesh door — the 41.4-inch internal depth gives enough room for vertical PDUs on the rear posts and structured cabling bundles without obstructing equipment cooling. If you're integrating this cabinet into a larger server rack enclosure row, the standard footprint aligns with most raised-floor tile grids and bolt-down seismic kits. Check your facility's floor load rating against the 284.4 lb (129 kg) cabinet weight before populating — that figure is the empty cabinet only. A full 42U build with servers, UPS, and switching can approach the 3,307 lb static limit in dense configurations.

Frequently Asked Questions

Q: What is the maximum equipment weight the RK4242BK24 can support?

A: When stationary, the RK4242BK24 supports up to 3,307.5 lb (1,500 kg). When rolling on casters, the rated capacity drops to 2,315.2 lb (1,050 kg). Plan your moves accordingly — do not exceed the rolling limit during installation repositioning.

Q: What is the minimum and maximum mounting depth for equipment in the RK4242BK24?

A: The adjustable rails accommodate equipment from 5.2 inches (13.2 cm) minimum to 35.0 inches (88.9 cm) maximum mounting depth. This range covers everything from 1U patch panels to full-depth enterprise servers.

Q: Does the RK4242BK24 meet industry rack unit spacing standards?

A: Yes. The RK4242BK24 complies with EIA/ECA-310-E, which defines standard 1.75-inch U spacing, hole patterns, and rail dimensions. Standard rackmount equipment from any compliant vendor will mount without modification.

Q: What is the overall height of the RK4242BK24 with casters installed?

A: With casters installed, the total height is 78.4 inches (199.2 cm). Without casters, the cabinet stands 6.4 feet (2.0 m). Verify ceiling clearance before installing casters in low-ceiling environments.

Q: What is the warranty on the RK4242BK24?

A: StarTech covers the RK4242BK24 with a 5-year manufacturer warranty.

Q: How heavy is the RK4242BK24 when empty?

A: The empty cabinet weighs 284.4 lb (129.0 kg). Factor this into floor load planning before adding equipment — a fully loaded rack can approach the 3,307 lb static limit.

Jerry Tildsen

The spec I keep coming back to on the RK4242BK24 is that 5.2-to-35-inch adjustable rail range. I've worked on plenty of installs where someone committed to a fixed-depth cabinet early in the project, then the server spec changed and suddenly nothing fits cleanly. Having nearly 30 inches of adjustment built into the rail system means this cabinet stays useful across equipment generations — which, for something bolted into a server room floor, is exactly what you want.

Technical Highlights:

• 3,307.5 lb Static Load: That 1,500 kg static rating is not a number you'll hit in most builds, but it gives real margin on fully loaded high-density configurations — think 42U with blade chassis, dense UPS, and dual PDUs. The 1,050 kg rolling limit is the constraint to communicate to the install crew before anyone starts pushing.
• Steel Mesh Doors (Front and Rear): Both doors stay on during normal operation while airflow passes front-to-back unobstructed. In high-density deployments where you're running 10–15 kW per rack, mesh versus solid door is a real thermal difference — not an aesthetic one.
• EIA/ECA-310-E Compliance: Standard U spacing across all 42 rack units means no surprises with standard rackmount gear. This matters specifically when mixing vendors — Cisco, Dell, HPE, StarTech PDUs — none of it requires shimming or custom cage nut adapters.

Deployment Considerations:

• The empty cabinet weighs 284.4 lb before a single device is installed. Coordinate floor load verification early — especially in older buildings or raised-floor environments where tile ratings may limit concentrated loads near the 3,300 lb ceiling.
• At 78.4 inches with casters, this is a tall cabinet. In server closets with drop ceilings or overhead conduit runs under 84 inches, measure twice before specifying casters. You may need to roll it in without them and install casters after positioning.

The RK4242BK24 is a solid fit for enterprise data center builds and security operations centers where you're consolidating NVR appliances, switching infrastructure, and compute into a single standardized enclosure — particularly where equipment depth varies across vendors and a fixed-rail cabinet would force compromises.
