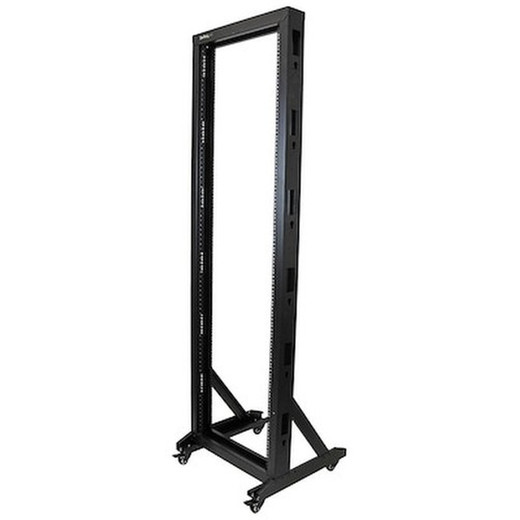

StarTech 2POSTRACK42 42U 2-Post Open Frame Mobile Server Rack

Overview

The StarTech 2POSTRACK42 is a 42U open-frame, 2-post equipment rack built for IT rooms, security head-end closets, and surveillance equipment bays where full enclosure isn't required and airflow is a priority. At 78.0 inches tall (81.6 inches with casters) and constructed from steel, it handles up to 661.5 lb when stationary — enough for a fully loaded NVR stack, patch panels, and UPS hardware without hitting a structural ceiling. When mobility matters — staging, lab work, or repositioning during a fit-out — the included casters handle up to 396.9 lb rolling, giving you practical flexibility without sourcing a separate transport solution.

This isn't a rack for environments that demand physical security of the front and rear — the open-frame design means no locking doors and full equipment exposure. But for wiring closets, dedicated IT rooms, and network video recorder deployments where technicians need unfettered access to cable runs and rear interfaces, the 2POSTRACK42 is a cleaner working environment than a four-post enclosed cabinet.

Key Features

• 42U Usable Space: 42U of vertical rail space translates to roughly 73.5 inches of rack-mountable equipment — enough to house a full surveillance head-end: NVRs, managed PoE switches, patch panels, and a rack-mount UPS without overflow. You won't be splitting equipment across two racks on a typical mid-size deployment.
• 661.5 lb Stationary Capacity: At 300 kg static load rating, this rack isn't a constraint for dense server or recorder builds. A fully populated stack of 2U NVRs, a managed switch, and a rack-mount UPS will sit well inside that ceiling — plan your per-shelf weights during design and this won't be the variable that limits your build.
• 396.9 lb Rolling Capacity: The included casters reduce the load ceiling to 180 kg when moving, which is still practical for pre-staged equipment. Stage your rack off-site or in a staging area, then roll it into position — the trade-off is you'll want to unload heavier equipment before rolling if you're near the limit.
• Square Hole Mounting (Cage Nut): Square-hole rails accept standard cage nuts, which means compatibility with virtually every commercial rack-mount chassis on the market. No proprietary mounting hardware, no thread-matching headaches — cage nuts are field-replaceable and universally stocked.
• Open Frame, 2-Post Design: Two-post construction saves floor footprint compared to four-post alternatives and gives unrestricted rear access. Cable management to rear interfaces is straightforward, and airflow isn't blocked by side panels — a meaningful advantage in equipment rooms without precision cooling.
• EIA/ECA-310-E, IEC 60297, DIN 41494 Compliance: Conformance to these standards means rack-unit spacing is exactly what every equipment vendor designs to. You won't encounter misaligned rails or unexpected gaps — equipment from any major vendor drops in at standard U-height increments.
• Steel Construction: The all-steel frame handles the rated loads without flexing — relevant when you're mounting heavy UPS units or dense storage arrays. Cheaper aluminum or composite frames at similar price points may not hold weight as consistently at full load over time.
• Integrated Casters: Casters are included in the box — you're not ordering a rack and then discovering mobility requires a separate accessory kit. For staging-heavy deployments or lab environments where racks move regularly, this removes a procurement step.
• Compact Footprint: At 23.6 inches wide and 23.6 inches deep, the 2POSTRACK42 fits in tighter equipment rooms than standard 4-post cabinets. Check your room's door clearance against the 81.6-inch height with casters before delivery — this is a common install-day surprise on existing builds.

Integration and Compatibility

The 2POSTRACK42 is compatible with any standard 19-inch rack-mount equipment — servers, NVRs, managed switches, patch panels, and UPS systems. Square-hole rails with cage-nut mounting are the current commercial standard; virtually all enterprise and commercial-grade equipment ships ready for this configuration. The rack conforms to EIA/ECA-310-E, IEC 60297, and DIN 41494, so rail spacing and U-height increments are exactly to spec for equipment from any major vendor in the StarTech ecosystem or otherwise.

For surveillance head-end builds, pair this rack with a managed PoE switch and rack-mount NVR. The open-frame design means all rear ports — SFP uplinks, camera inputs, storage expansion — are accessible without removing side panels, which simplifies both initial commissioning and ongoing maintenance. Review a rack infrastructure planning guide before finalizing your U-space layout to avoid cable congestion on a 2-post build.

Frequently Asked Questions

Q: What is the maximum weight capacity of the 2POSTRACK42?

A: The 2POSTRACK42 supports up to 661.5 lb (300 kg) when stationary. When rolling on its included casters, the safe working load drops to 396.9 lb (180 kg). Plan your loaded rack weight accordingly before moving populated equipment.

Q: Does the 2POSTRACK42 use standard cage nut mounting?

A: Yes. The rails are square-hole and accept standard cage nuts, which are the current commercial standard. This means compatibility with virtually all 19-inch rack-mount equipment without proprietary hardware.

Q: Are casters included, or do I need to purchase them separately?

A: Casters are included with the 2POSTRACK42. No separate mobility kit is required.

Q: What industry standards does the 2POSTRACK42 conform to?

A: The 2POSTRACK42 conforms to EIA/ECA-310-E, IEC 60297, and DIN 41494. These standards govern rack-unit spacing and rail dimensions, ensuring equipment from any commercial vendor mounts correctly.

Q: What are the overall dimensions of the 2POSTRACK42 with casters installed?

A: With casters, the rack stands 81.6 inches (207.2 cm) tall. Width and depth are both 23.6 inches (60.0 cm). Verify door and ceiling clearances before delivery, particularly in existing equipment rooms.

Q: What is the warranty on the 2POSTRACK42?

A: StarTech covers the 2POSTRACK42 with a 2-year hardware warranty.

Karl Wilson

The spec that gets overlooked most on the 2POSTRACK42 is the 396.9 lb rolling limit versus the 661.5 lb stationary limit — a 264 lb gap that matters the moment you try to roll a fully staged rack across a loading dock or into an elevator. I've seen integrators stage a full build, discover they're over the rolling threshold, and have to partially strip the rack on-site. Do the weight math before you start populating it.

Technical Highlights:

• 42U Vertical Capacity: 42U gives you enough room for a full surveillance head-end — typically 4-8U of NVR, 1-2U of managed switching, 1-2U of patch panel, and a 2-4U rack-mount UPS — without stacking two racks or going to a taller format that won't fit the room.
• Steel Construction at 52 lb Unloaded: The rack itself weighs 52.0 lb empty, which is manageable for a two-person install team. Steel construction at that weight means the frame holds its shape under asymmetric loads — relevant when you're mounting a heavy UPS at the bottom and lighter switches at the top.
• EIA/ECA-310-E Conformance: Standard rail spacing means no shimming, no adapter plates, no surprises when your NVR vendor's chassis drops in. Every U-height increment is exactly where it should be — this matters more than it sounds when you're commissioning under time pressure.

Deployment Considerations:

• The 23.6-inch depth is shallower than many four-post enclosed cabinets — verify that your deepest chassis (typically UPS units or dense storage) has adequate rear clearance before finalizing your equipment selection. Some 2-post builds need rear cable trays to manage depth.
• Open-frame means no physical access control — if this rack lives in a shared or semi-public space, that's a security gap. The 2POSTRACK42 is the right choice for dedicated, access-controlled equipment rooms, not shared comms closets with multiple tenants.

For a dedicated surveillance head-end room or a single-tenant IT closet where technicians need constant rear-panel access without removing cabinet doors, the 2POSTRACK42 is the practical call over a fully enclosed four-post cabinet — lower cost, better airflow, and faster hands-on access during commissioning and maintenance.
