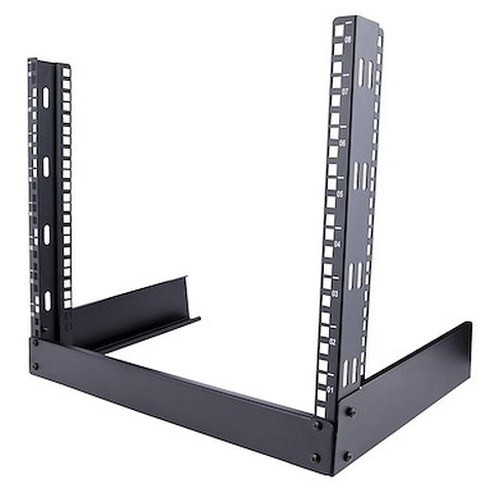

StarTech RK8OD 8U 2-Post Open Frame Desktop Rack

Overview

The StarTech RK8OD is a compact, 2-post open-frame desktop rack designed to organize and secure 19-inch IT equipment in space-constrained environments — think wiring closets, back-office server nooks, small branch locations, or edge infrastructure nodes where a full 4-post enclosed cabinet is overkill. At 8U of usable rack space and a footprint of just 19.7 x 11.5 inches, the RK8OD fits on a standard workbench or desktop while still conforming to EIA/ECA-310-E mounting standards, so all your 19-inch rackmount gear drops straight in without adapter plates or custom hardware. The open-frame design keeps heat from accumulating around dense 1U and 2U appliances — a meaningful advantage when you're stacking switches, NVRs, and patch panels in a room without dedicated HVAC. Browse the full StarTech catalog for compatible rackmount accessories and cable management options.

Key Features

• 8U Capacity in a Desktop Footprint: At 16.1 inches tall and 19.7 inches deep, this rack handles eight rack units of equipment without requiring floor space or wall anchoring. That's enough room for a PoE switch, an NVR, a patch panel, and a power strip — the core of a small surveillance or IT deployment — all in one organized unit.
• 110.2 lb (50 kg) Weight Capacity: Steel construction rated to 110 pounds means you can load all 8U with dense 1U appliances and not worry about frame flex or tipping under real-world weight. Most competitive lightweight desktop frames top out at 66–77 lbs; this margin matters when you're stacking a full NVR with drives installed.
• EIA/ECA-310-E Compliant Mounting: Conformance to the EIA/ECA-310-E standard guarantees consistent 19-inch rail spacing, meaning any standard rackmount device — switches, NVRs, UPS units, patch panels — installs without modification. This isn't proprietary spacing that locks you into one vendor's gear.
• Square Cage Nut Mounting Holes: Square holes accept standard cage nuts and screws, which are the dominant mounting hardware in commercial IT. You get full flexibility to use M5 or 10-32 cage nut hardware depending on what your equipment requires — no thread-in rail inserts that strip over time.
• 11.4-Inch Maximum Mounting Depth: Equipment up to 11.4 inches deep can be rack-mounted without hanging over the rear. That covers most 1U managed switches, 1U NVRs, 1U UPS units, and 1U patch panels. Notably, deep 2U or 4U servers with rear cable bundles may exceed this — verify device depth before ordering.
• Open-Frame Airflow: The absence of side panels and a door means natural convection isn't blocked. In a closet or equipment room without dedicated cooling, this reduces thermal buildup around active components — switches and NVRs running 24/7 benefit directly from unrestricted airflow on all four sides.
• Freestanding Design: No wall anchoring required. The RK8OD stands independently on its base, which simplifies deployment in leased spaces or temporary installs where drilling is restricted. It can be repositioned without tools.
• Steel Construction, Black Finish: The all-steel frame handles the 110-pound load rating without the flex common in aluminum budget racks. The black powder-coat finish is standard for equipment rooms and doesn't show wear from cable dressing or rack hardware installation.
• Lightweight at 4.8 lb: The rack itself weighs under 5 pounds, so shipping and on-site handling are easy. A single technician can deploy and position it without assistance.
• Lifetime Warranty: StarTech covers the RK8OD with a lifetime warranty — infrastructure hardware that won't need a refresh cycle budgeted around it.

Integration and Compatibility

The RK8OD is purpose-built for standard network video recorders, PoE switches, patch panels, and small UPS units in 19-inch form factors. The EIA/ECA-310-E rail spacing ensures compatibility with virtually all commercial rackmount IT hardware. When deploying a small surveillance node — for example, a 1U PoE switch feeding cameras and a 1U NVR with local storage — this rack consolidates the infrastructure cleanly. It also pairs naturally with 1U or 2U rackmount PoE switches that power IP cameras without a separate power supply run to each device. For cable management, standard 1U horizontal cable managers fit in any of the eight rack spaces. Note that the 11.4-inch maximum mounting depth applies to the usable rail-to-rail depth — budget for rear cable dress space beyond that when planning equipment selection. If your deployment requires more than 8U or deeper equipment, consider a larger open-frame server rack or enclosure in the same product family. For guidance on structuring small surveillance infrastructure, the NVR selection guide covers how to match switch capacity, recorder storage, and physical rack space for small-to-mid deployments.

Frequently Asked Questions

Q: What is the weight capacity of the RK8OD?

A: The RK8OD is rated to 110.2 lb (50 kg). That covers all 8U loaded with standard 1U IT appliances including NVRs with drives installed, managed PoE switches, and patch panels.

Q: Does the RK8OD require wall mounting or floor anchoring?

A: No. It is a freestanding desktop rack that stands independently on its base. No wall or floor anchoring is required, which makes it suitable for leased spaces or temporary deployments.

Q: What type of mounting holes does the RK8OD use?

A: Square cage nut holes compatible with standard M5 or 10-32 cage nut hardware. This is the commercial IT standard and works with the mounting hardware supplied with most rackmount switches, NVRs, and patch panels.

Q: What is the maximum equipment depth the RK8OD can accommodate?

A: The maximum mounting depth is 11.4 inches (29 cm). Equipment deeper than this will extend beyond the rear rail. Factor in additional space for rear cabling when selecting equipment.

Q: What is the warranty on the RK8OD?

A: StarTech covers the RK8OD with a lifetime warranty.

Q: Is the RK8OD compatible with standard 19-inch rackmount equipment?

A: Yes. It conforms to EIA/ECA-310-E standards, which defines the 19-inch rack unit spacing used by virtually all commercial IT and networking hardware including switches, NVRs, UPS units, and patch panels.

Marty Allison

The RK8OD earns its place in small surveillance and edge IT deployments specifically because of its 110.2 lb steel-frame load rating in a desktop footprint that measures just 19.7 x 11.5 inches — that combination is harder to find than it should be in 8U desktop-class racks, and it directly prevents the frame flex and tipping risk you get with lightweight aluminum alternatives when you load all eight spaces.

Technical Highlights:

• 110.2 lb Load Rating: Enough to run a fully loaded NVR with multiple drives, a managed PoE switch, and a patch panel simultaneously — all 8U occupied — without structural concern.
• EIA/ECA-310-E Compliance: Standard 19-inch rail spacing means zero compatibility friction with commercial switches, NVRs, and UPS units. No adapter rails, no proprietary mounting.
• 11.4-Inch Max Mounting Depth: Sufficient for most 1U network and surveillance appliances, but worth verifying against your specific NVR or switch model — anything deeper than 11.4 inches will overhang the rear rail and may interfere with cable management.

Deployment Considerations:

• For small surveillance nodes — a 1U PoE switch plus a 1U NVR plus a 1U patch panel plus a 1U power strip — 8U fills faster than expected. Map out your U count before purchasing to confirm you don't need a 12U or 16U unit instead.
• The freestanding base works well on a workbench or desk, but if the rack will be in an unsupervised space or a location with foot traffic nearby, consider whether a wall-anchored option would be safer — the RK8OD does not include tie-down hardware.

The RK8OD is the right call for a retail backroom, small office wiring closet, or branch surveillance node where you need compliant 19-inch mounting, a genuine steel frame, and a lifetime warranty without dedicating floor space to a full-height cabinet.
