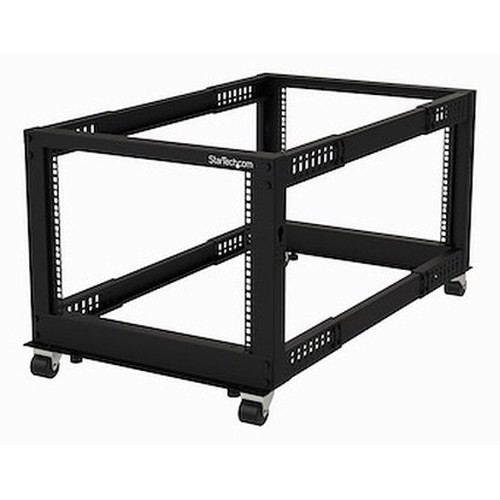

StarTech 4POSTRACK8U 8U 4-Post Open Frame Server Rack

Overview

The StarTech 4POSTRACK8U is a commercial-grade, 8U open frame server rack built for IT closets, network equipment staging areas, and surveillance infrastructure deployments where cable access, airflow, and flexibility matter more than a fully enclosed cabinet. At 1,200 lb static weight capacity and a 22–40 in adjustable mounting depth, this rack handles everything from shallow patch panels to deep UPS units and NVR appliances without requiring a second chassis. If you are specifying a compact server rack for a network video recorder stack, edge switch layer, or hybrid IT/security equipment room, the 4POSTRACK8U is worth a close look.

Key Features

• 1,200 lb Stationary Capacity: At 1,200 lb static and 660 lb mobile, this rack is not a lightweight consumer-grade shelf — it handles fully loaded NVR appliances, PoE switches, and UPS units simultaneously without flexing. For a typical 8U surveillance stack, you are unlikely to approach this ceiling.
• 22–40 in Adjustable Mounting Depth: The rear rail pair slides between 22 in and 40 in (56–101 cm), so you can fit a shallow 1U patch panel and a deep 2U rackmount NVR in the same rack without adapters. This adjustability is the feature most buyers miss until they are on-site with equipment that does not fit a fixed-depth competitor.
• 8U Capacity: Eight rack units is a practical footprint for a focused deployment — a 2U NVR, a 1U PoE switch, a 1U KVM, a 1U UPS, and you still have room for a cable management panel. It is large enough to be genuinely useful, small enough to fit in a telecom closet or equipment niche where a full 19U or 42U cabinet is impractical.
• Open Frame Construction: No front or rear doors means unrestricted airflow around high-heat equipment and direct cable access from all four sides. For surveillance NVRs running 24/7 with spinning disk arrays, passive airflow via the open frame often keeps operating temperatures lower than a closed cabinet without forced airflow.
• Square Hole Mounting: Square hole rails are the current industry standard, compatible with M6 cage nuts and the clip-in cage nut tools your team already has. Round-hole legacy racks require tapped screws and slow down installation — this rack does not have that problem.
• EIA/ECA-310-E Compliant: Compliance with EIA/ECA-310-E means the rail spacing, hole pattern, and unit marking are standardized. Any equipment rated for standard 19-inch rack mounting will install without shimming, custom brackets, or guesswork.
• Steel Construction: The rack is fabricated from steel, not aluminum, which matters for environments where the rack may be bumped by rolling carts or where a degree of rigidity is required for cable management arms and patch panel strain relief.
• 49.6 lb Rack Weight: At just under 50 lb, two people can position this rack without mechanical assistance — relevant in elevator-access server rooms or retrofit installs in finished spaces where pallet jacks are not practical.

Integration and Compatibility

The 4POSTRACK8U follows EIA/ECA-310-E, which means it accepts any standard 19-inch rackmount equipment — rackmount NVRs, managed PoE switches, patch panels, KVM units, and 1U UPS systems all install without modification. Square hole rails require M6 cage nuts (not included in all configurations — verify your package contents) for equipment that uses cage nut mounting versus integrated ears. The adjustable rear rail depth from 22 in to 40 in accommodates most standard 1U and 2U rackmount devices on the market today. For integrators deploying a structured surveillance camera system with centralized recording and switching, this rack provides a clean, accessible infrastructure point. Pair it with a cable management panel at the top or bottom 1U to keep fiber and Cat6 runs organized. Review our rack selection guide for help matching rack depth and capacity to your equipment list before purchasing.

Frequently Asked Questions

Q: What is the maximum weight the 4POSTRACK8U can support?

A: The 4POSTRACK8U supports up to 1,200 lb when stationary and up to 660 lb when configured for mobile use (with casters). This is sufficient for fully loaded rackmount NVRs, switches, and UPS units in a typical 8U surveillance or IT stack.

Q: What mounting depth range does the 4POSTRACK8U support?

A: The rear rails adjust between 22 inches and 40 inches (56–101 cm), giving you flexibility to accommodate both shallow networking gear and deep server or UPS equipment in the same rack.

Q: What type of mounting holes does the 4POSTRACK8U use?

A: The 4POSTRACK8U uses square mounting holes, which are the current industry standard. Square holes accept standard M6 cage nuts and are compatible with virtually all modern 19-inch rackmount equipment.

Q: Is the 4POSTRACK8U compatible with standard 19-inch rackmount equipment?

A: Yes. The rack is EIA/ECA-310-E compliant, which means it follows the standard rail spacing and hole pattern for 19-inch rackmount equipment. Any device rated for standard rack mounting will install without modification.

Q: What is the warranty on the 4POSTRACK8U?

A: StarTech covers the 4POSTRACK8U with a 2-year hardware warranty.

Q: How much does the 4POSTRACK8U weigh, and does it require special tools to position?

A: The rack itself weighs 49.6 lb. Two people can position it without mechanical assistance, which is practical for retrofit installations in finished spaces or equipment rooms without loading dock access.

Ted Perry

The spec I keep coming back to on the 4POSTRACK8U is the 22–40 in adjustable rear rail depth. In my experience, about 30% of rack installs involve at least one piece of equipment that does not fit a fixed-depth frame — a deep UPS, an oversized NVR chassis, or a PDU that clears the rails only if you push them back. That adjustment range eliminates the last-minute bracket hunting that stalls a job.

Technical Highlights:

• 1,200 lb Static Capacity: At 8U, you are unlikely to approach this limit even with fully populated rackmount gear — but the margin means the steel frame is not going to bow or shift under real-world loading, which matters for cable management integrity over years of operation.
• Open Frame, 4-Post Design: Four posts with no side panels or doors means you can dress cables from any angle and add a vertical cable manager, horizontal arm, or brush panel without fighting a cabinet chassis. Airflow stays unrestricted around high-heat NVR disk arrays running 24/7.
• EIA/ECA-310-E Compliance with Square Holes: Every piece of current rackmount equipment fits without shims or adapters. Square holes with M6 cage nuts are the standard your team installs every day — no surprises on the job site.

Deployment Considerations:

• At 49.6 lb unloaded and 3.7 ft tall, the 4POSTRACK8U can be two-person-carried into a telecom closet or finished server room without a pallet jack — plan for this in your site logistics, particularly in multi-floor retrofits.
• The 660 lb mobile weight limit is meaningfully lower than the 1,200 lb stationary rating — if you plan to configure this rack on casters for a mobile cart deployment, account for that delta when planning your loaded equipment list.

This rack is the right call for a compact surveillance head-end or edge IT closet where you need to house a rackmount NVR, a managed PoE switch, and a 1U UPS in a clean, accessible frame — without committing floor space to a full-height cabinet.
